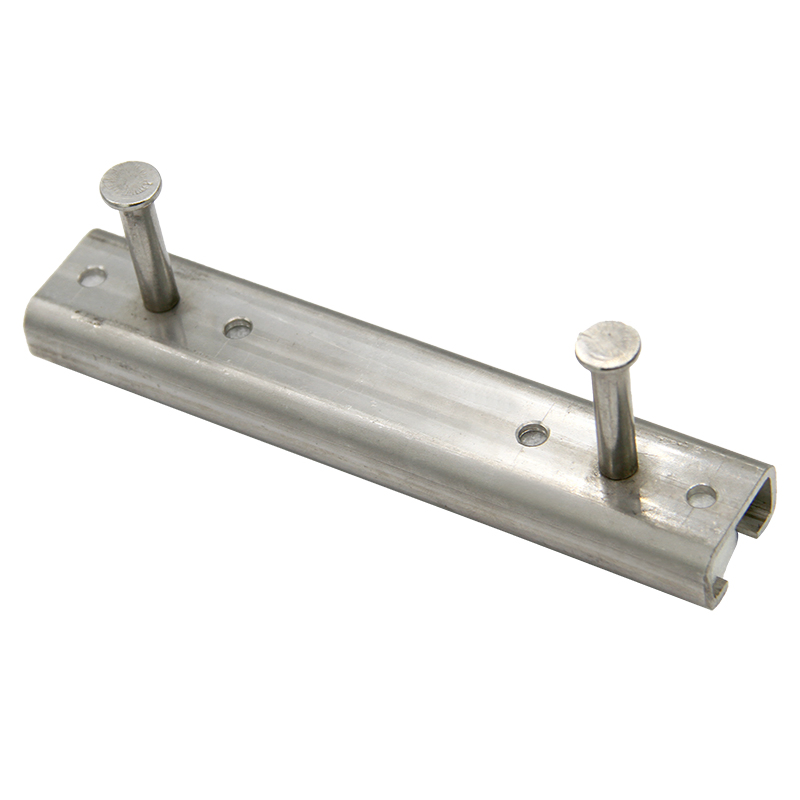

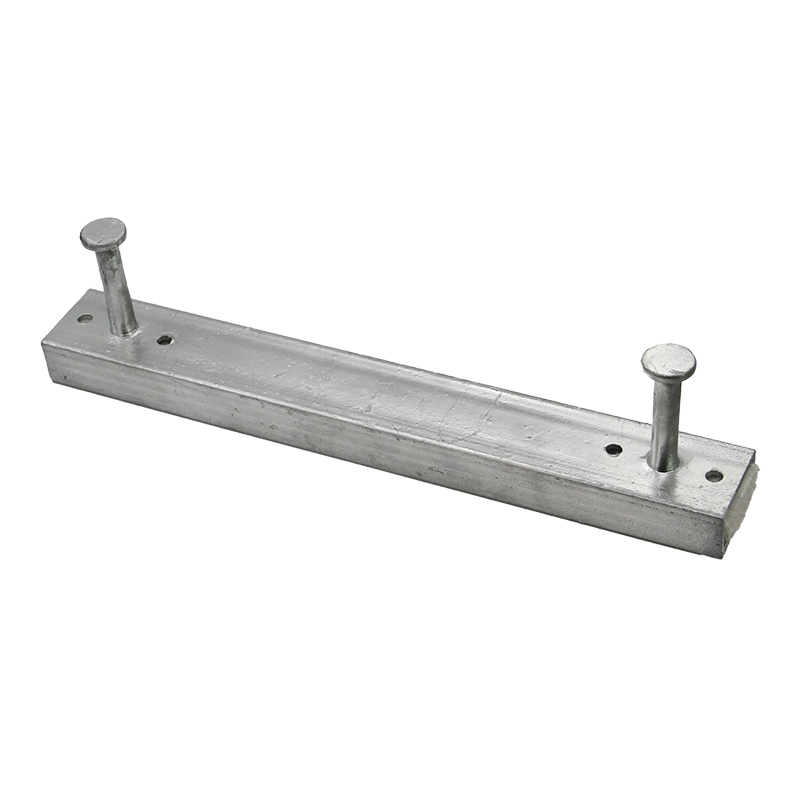

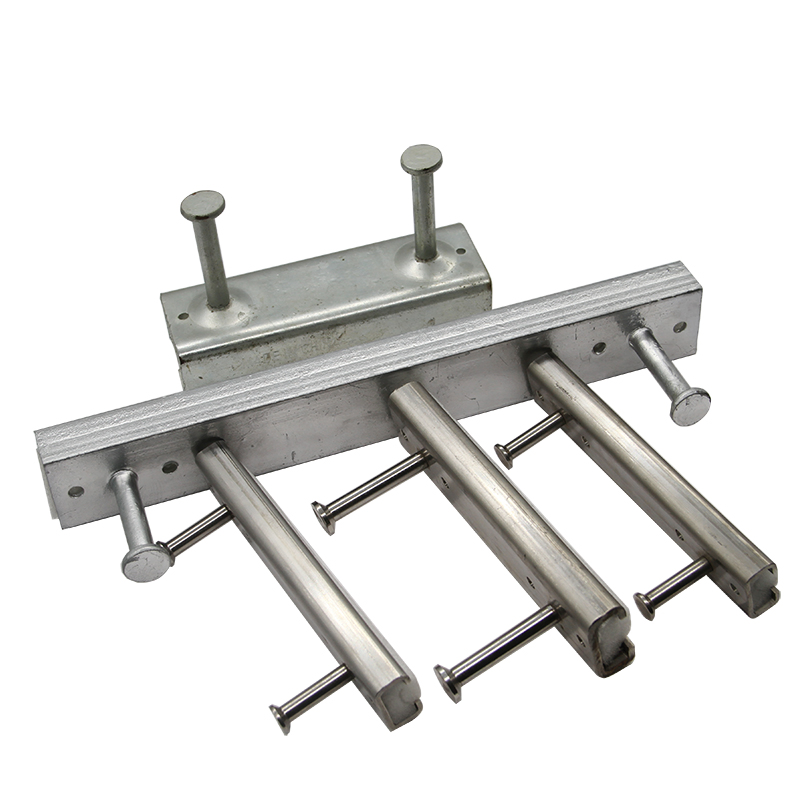

Cast-in channel is a high-performance channel designed for structural integrity in modern construction. The unique shape allows applied loads to be fed directly from the channel lips to the anchors, while the compact section size improves the fit between reinforcement layers.

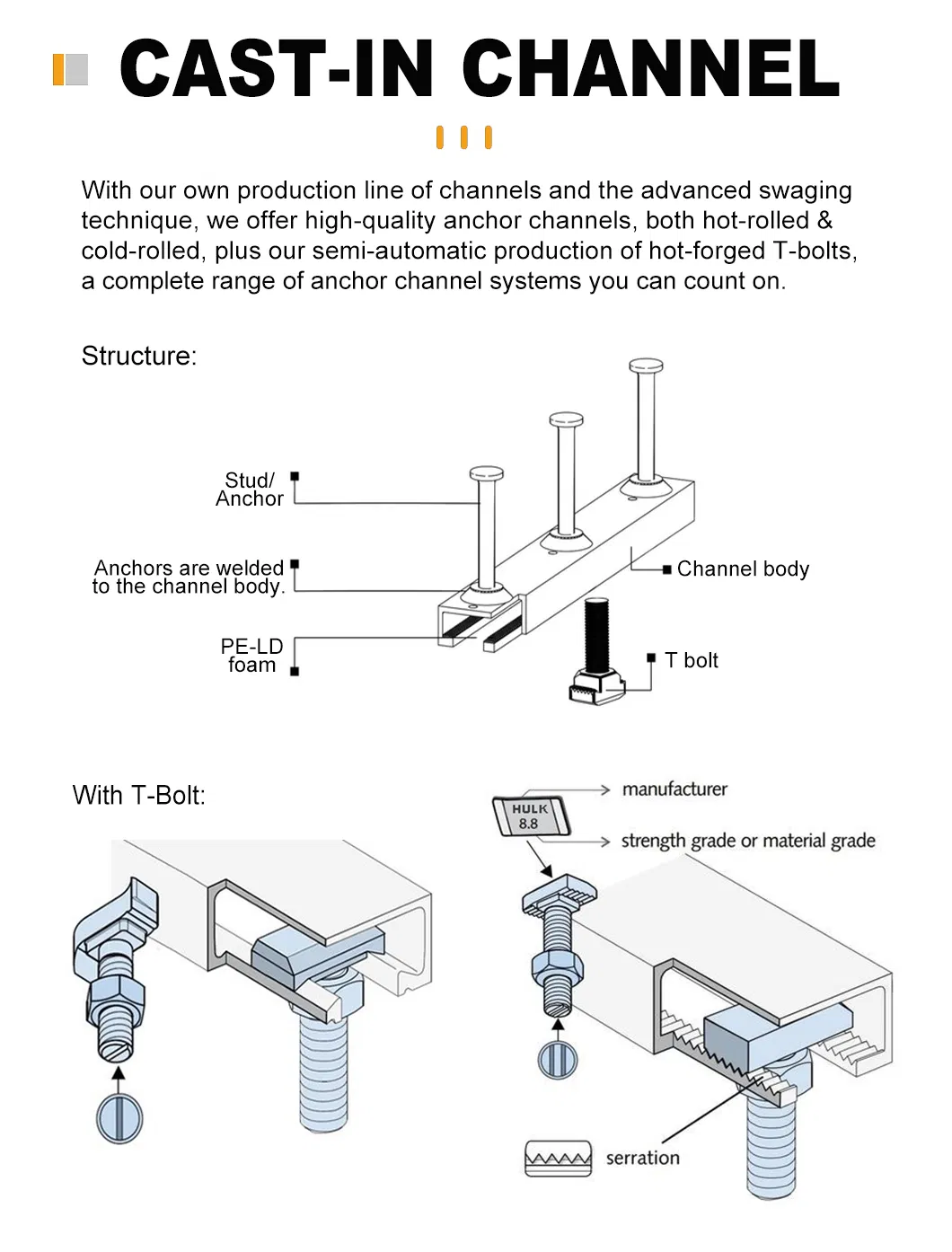

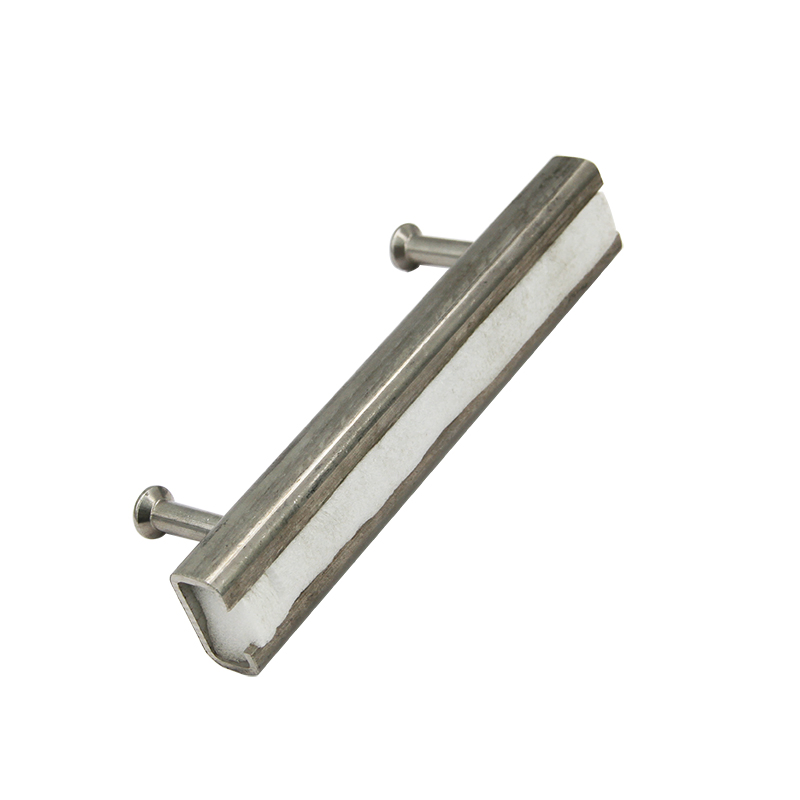

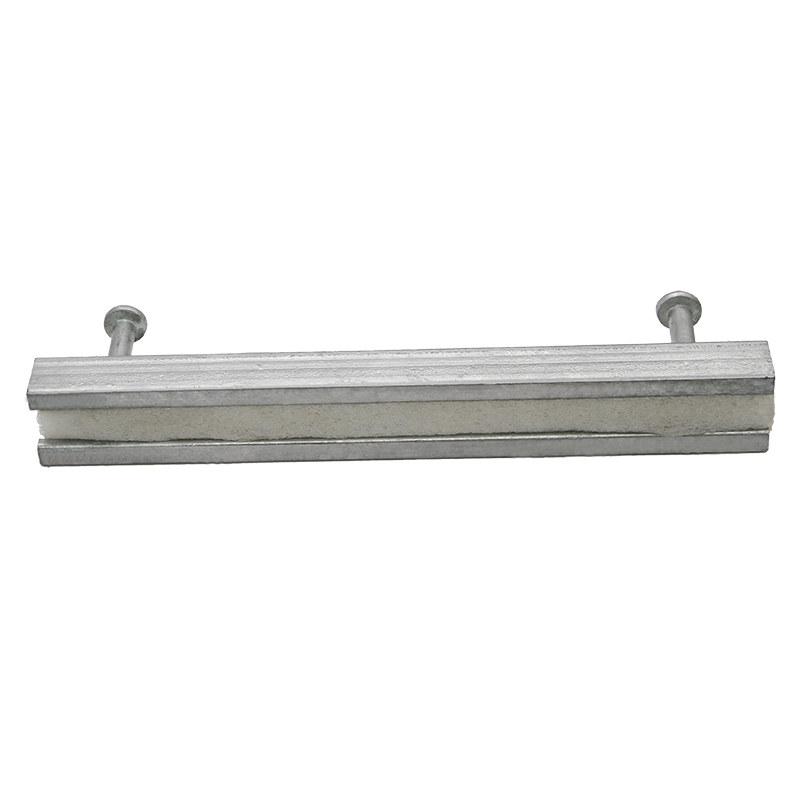

Specially designed T-head bolts ride up the sloping sides of the channel and securely lock behind the front lips. Each channel is filled with continuously extruded closed-cell PE-LD foam, which is easily removed in long sections and is 100% recyclable.

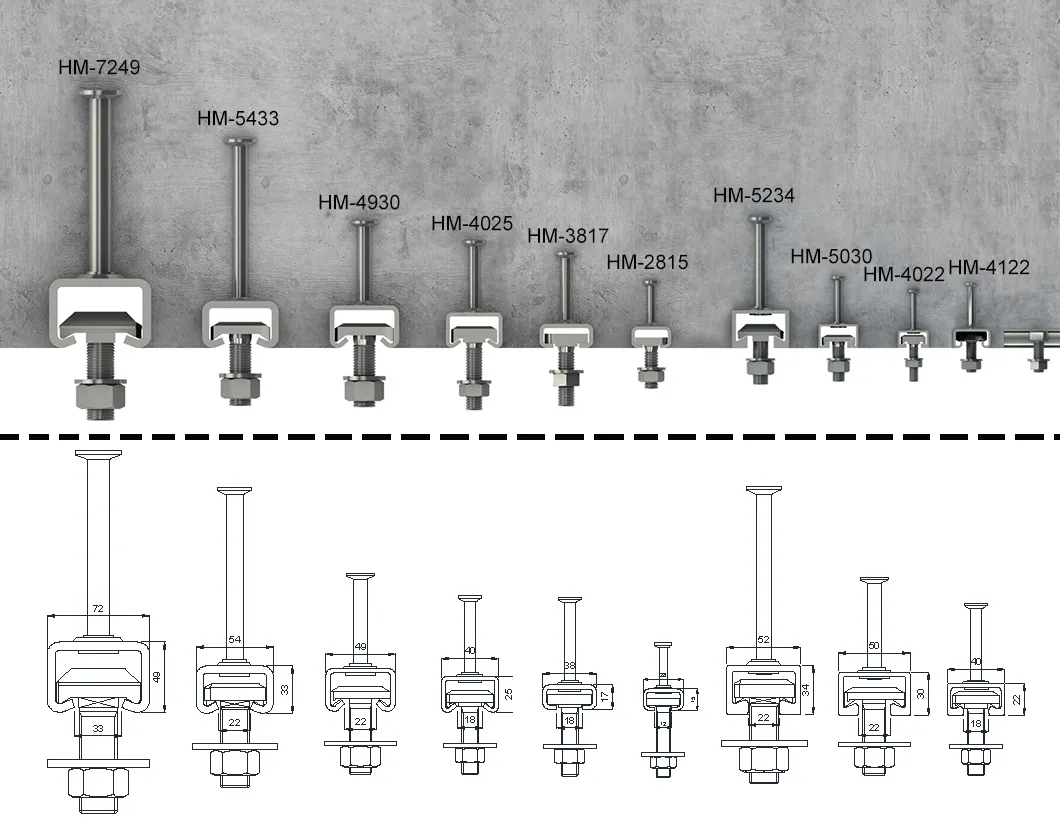

| Model | HM-7249 | HM-5433 | HM-4930 | HM-4025 | HM-3817 | HM-2815 | HM-5234 | HM-4022 |
|---|---|---|---|---|---|---|---|---|
| Channel Section (mm) | 72/49 | 54/33 | 49/30 | 40/25 | 38/17 | 28/15 | 52/34 | 40/22 |
| Min. Spacing (mm) | 121 | 80 | 74 | 64 | 47 | 41 | 81 | 58 |
| T.Bolt Size | M20/24/30 | M12/16/20 | M12/16/20 | M10/12/16 | M10/12/16 | M8/10/12 | M20/24/30 | M12/16/20 |
| Design Values (KN) | 45 | 41.6 | 17.2 | 12.2 | 10.6 | 7.2 | 30.6 | 11.1 |
