Overview
Model NO.JCHX-M00214
CertificationGB, ISO, CE, RoHS
ApplicationCommercial
MaterialSteel
TypeSolar Mounting Accessories
CoatingZinc Aluminum Magnesium Coated or Galvanized
GradeQ235B, etc.
Wind Load0-60m/S
Snow Load0-3kN/M²
Production Capacity100000 Tons / Year
Product Advantages
Highly corrosion-resistant: Excellent weather, fatigue, and earthquake resistance.
High structural strength: Carbon steel treated with Zinc Aluminum Magnesium coating ensures extreme stability.
Photovoltaic Bracket Systems
Hot-dip Galvanized Series: 25+ years protection.
Zinc-Aluminum-Magnesium: Self-repairing technology.
Aviation Aluminum Series: High-strength & lightweight.
Stainless Steel Series: Salt spray resistant for offshore.
Professional Service
Exclusive Butler: Full support from design to installation guidance.
24-hour Response: Uninterrupted global time zone response.

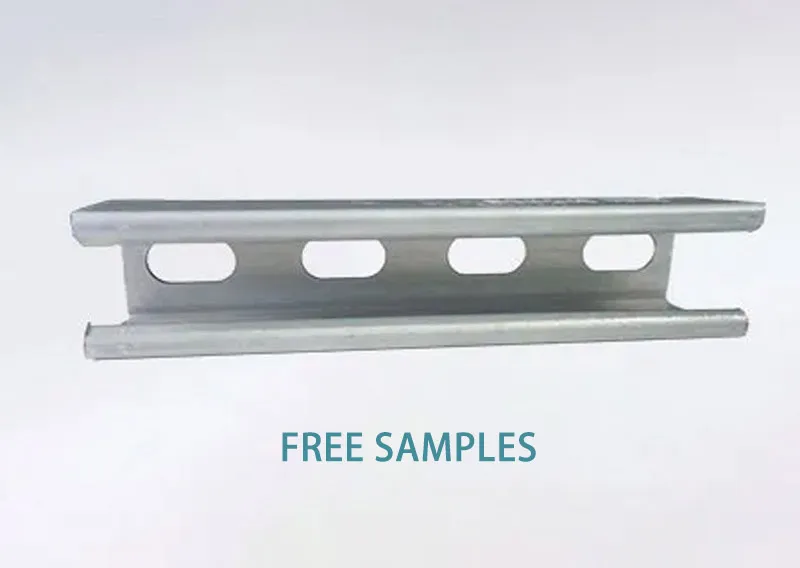

Free Trial: Free design and sample experience available.
Professional team responds within 10 minutes
Samples delivered within 72 hours
3D modeling provided within 48 hours
Making Every Ray of Sunshine Valuable!
FAQ

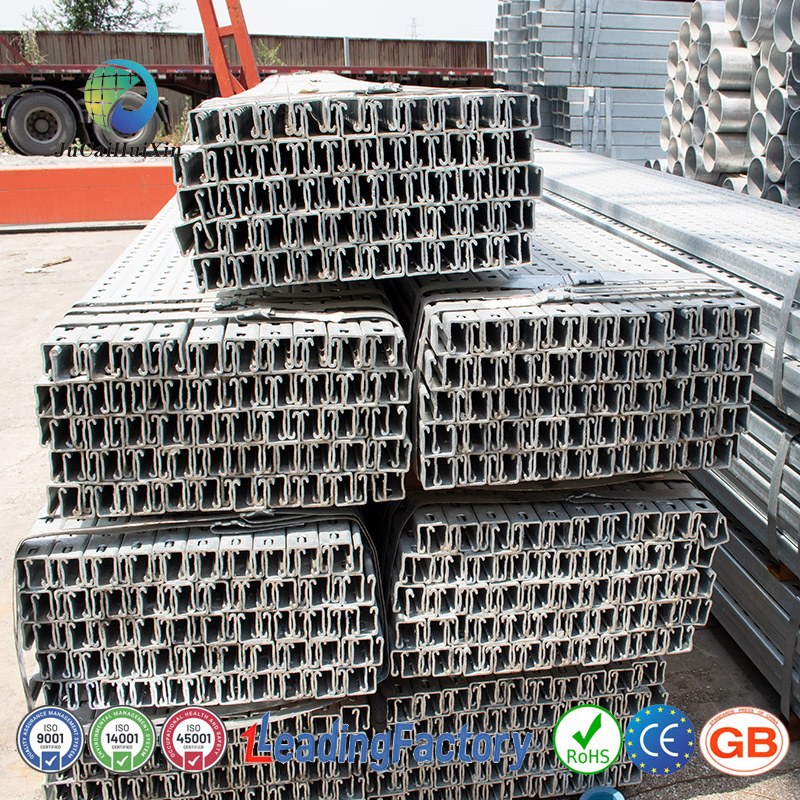

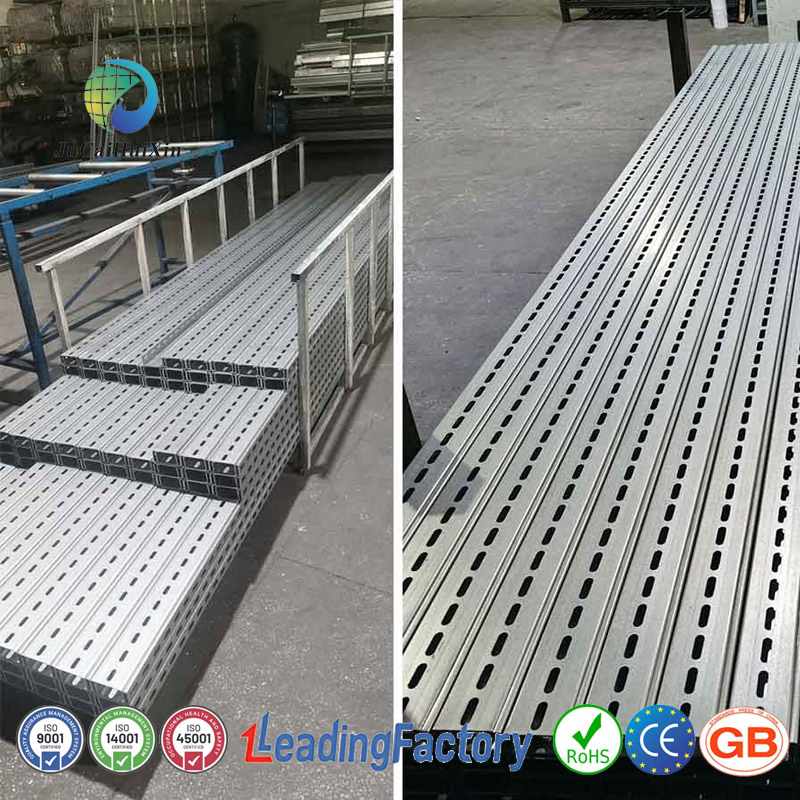

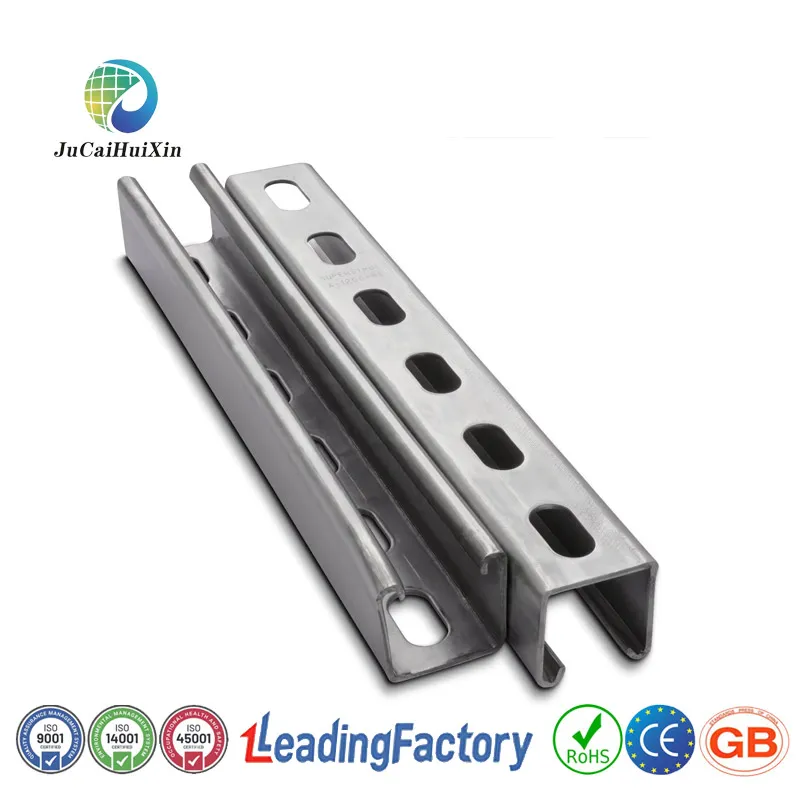

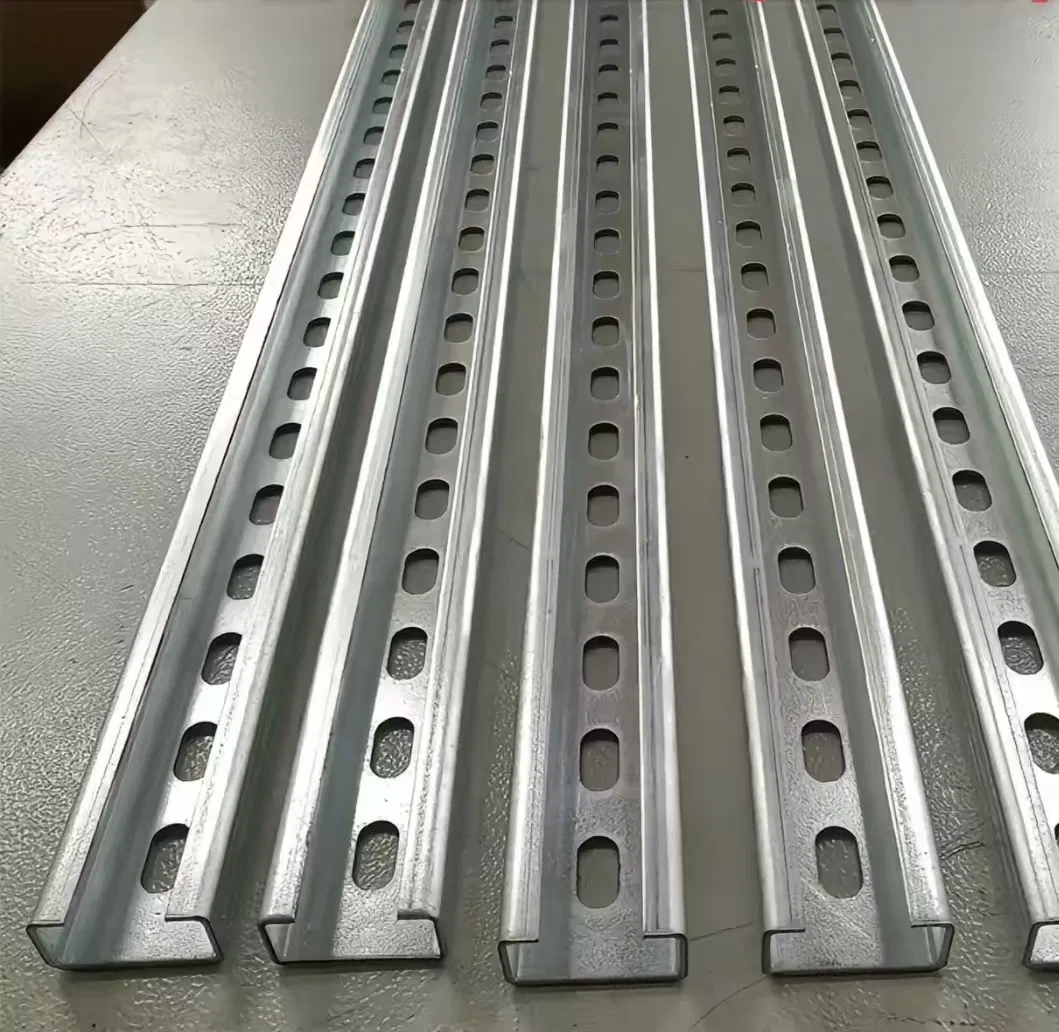

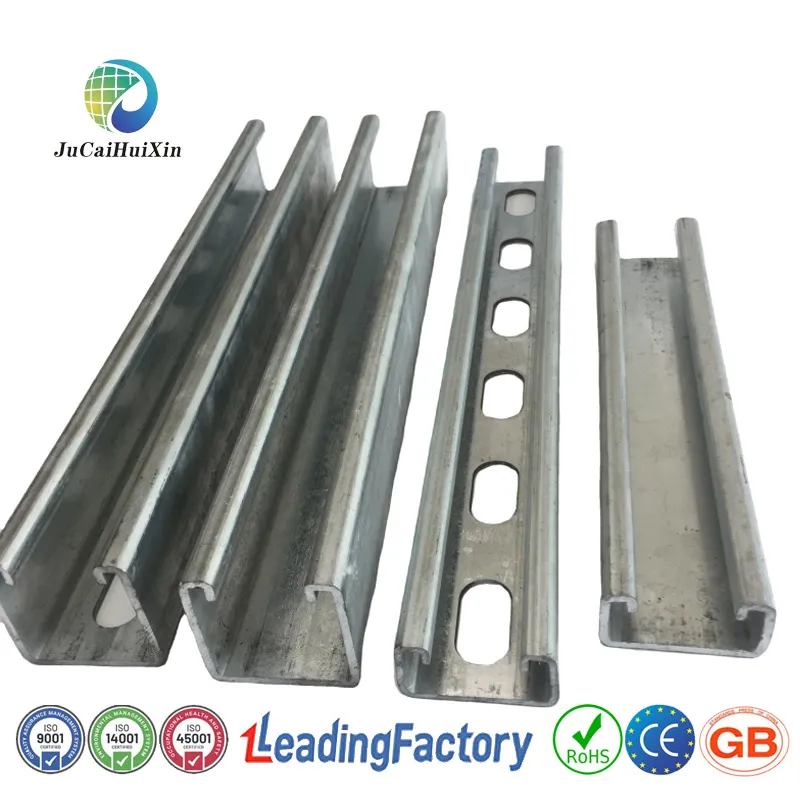

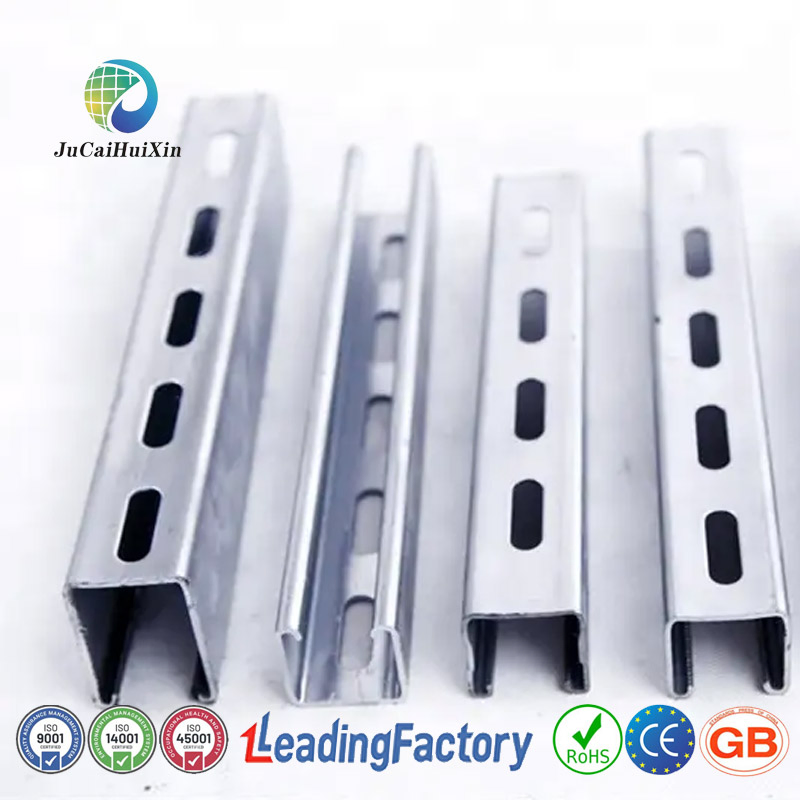

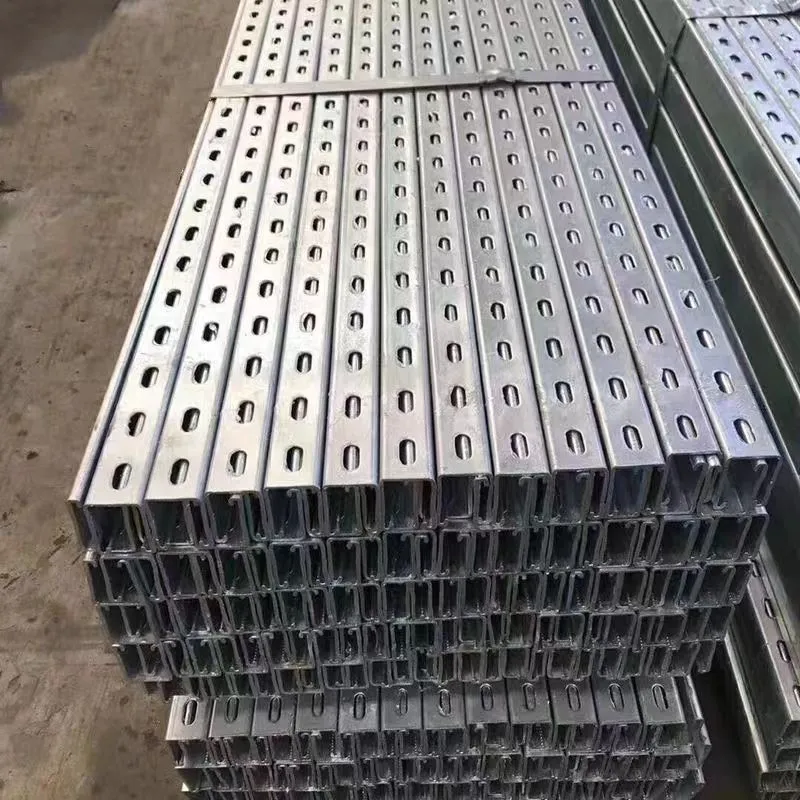

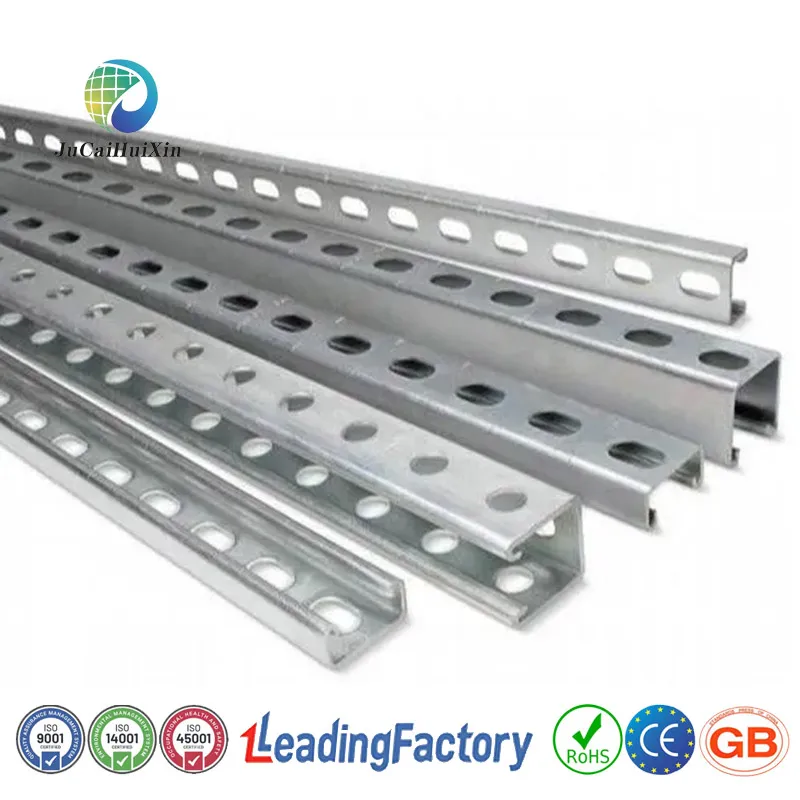

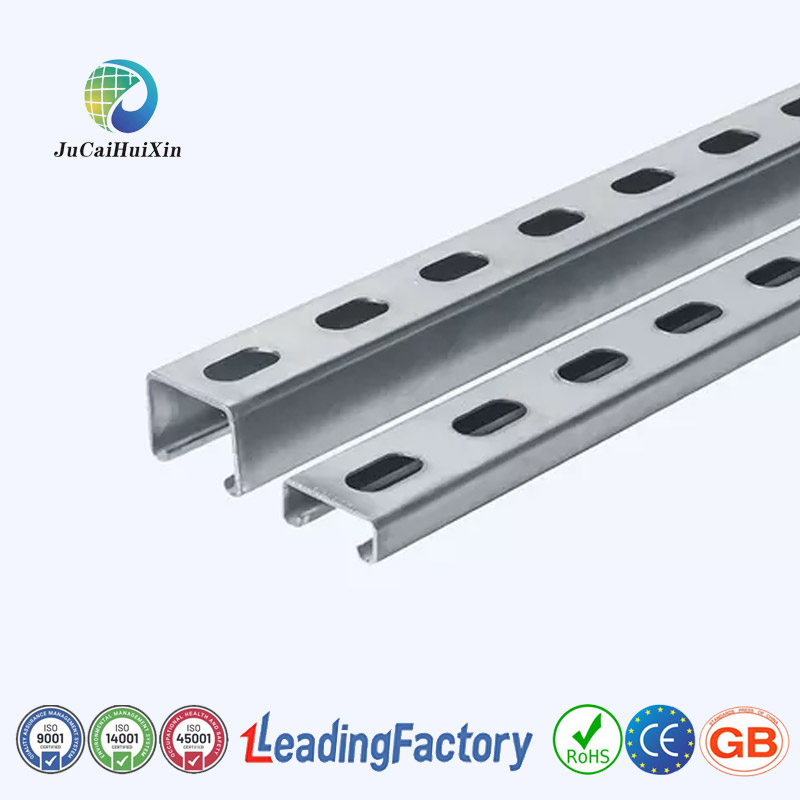

1. What is a Unistrut Channel?
It is a U-shaped modular metal support framework system used for quickly fastening equipment, pipes, and solar panels without welding or drilling.
2. What are the main advantages of using these channels?
Key benefits include high flexibility for adjustments, strong load-bearing capacity, rapid installation, and easy scalability for retrofit projects.
3. What materials are available for Unistrut channels?
We offer Hot-Dip Galvanized Carbon Steel for general use, Zinc-Aluminum-Magnesium for enhanced corrosion resistance, and Aluminum for lightweight applications.
4. What components are typically included in the system?
The system includes the channel itself, spring nuts, square-neck bolts, angular connectors, and base plates or flanges for securing to floors/walls.
5. How do I select the right size for my project?
Selection depends on weight load requirements (static and dynamic), environmental exposure to salt or chemicals, and the required span length.
6. What should be considered during installation?
Crucial factors include avoiding over-tightening to protect channel lips, ensuring proper alignment of slots, and accounting for thermal expansion in long-span setups.
