Product Description

Basic Specifications

Model NO.:JCHX-Z00010

Certification:GB, ISO, TUV, CE, RoHS

Application:Commercial / Industrial

Material:High-Quality Steel

Type:Solar Mounting Accessories

Coating:Zn-Al-Mg Coated or Galvanized

Wind Load:0-60m/S

Snow Load:0-3kN/M²

Web Thickness:1.5-5mm

Annual Capacity:100,000 Tons / Year

Product Description

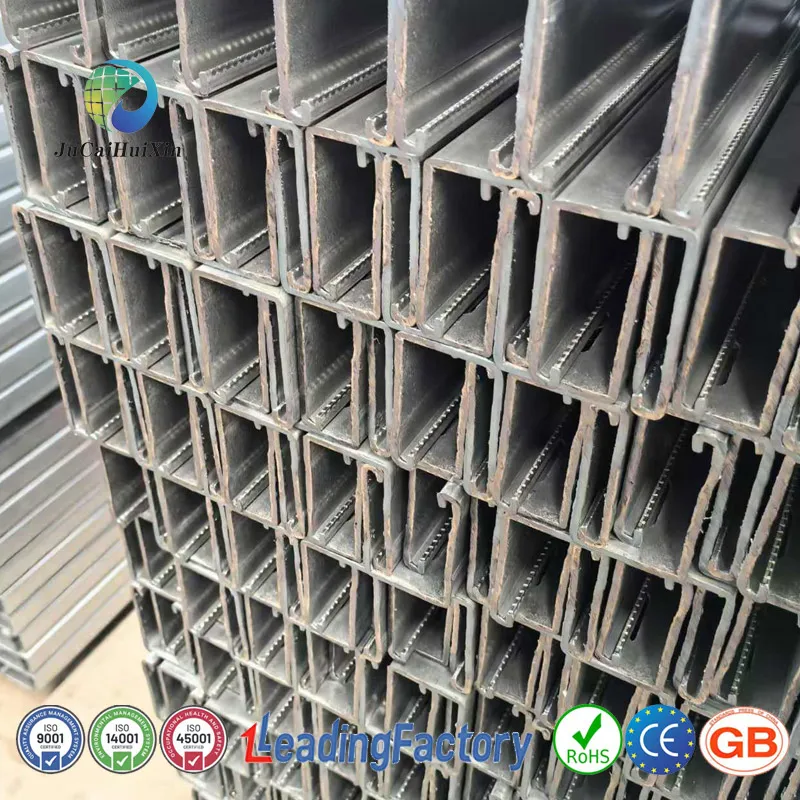

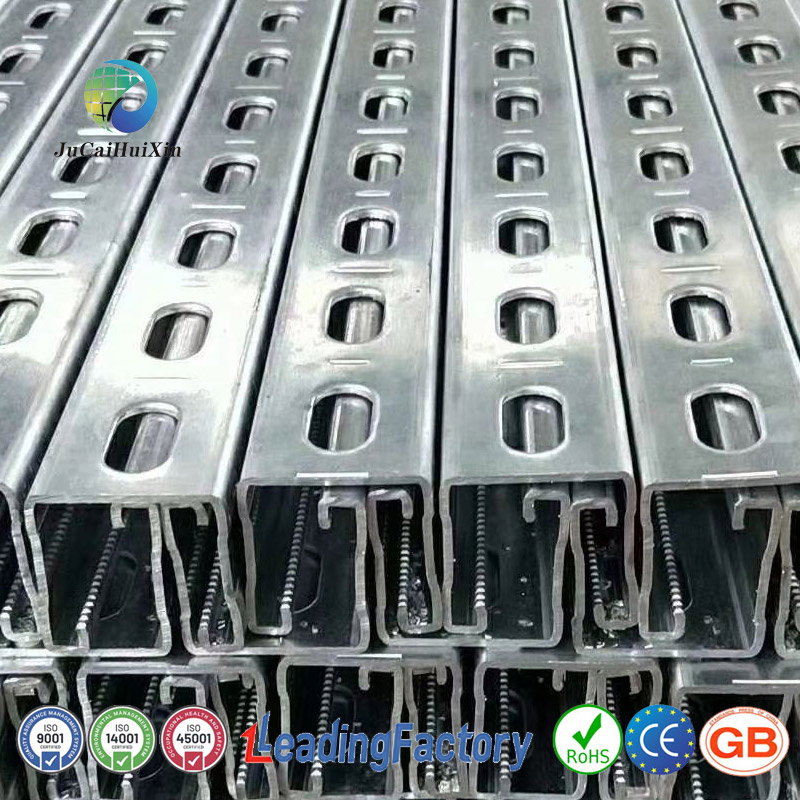

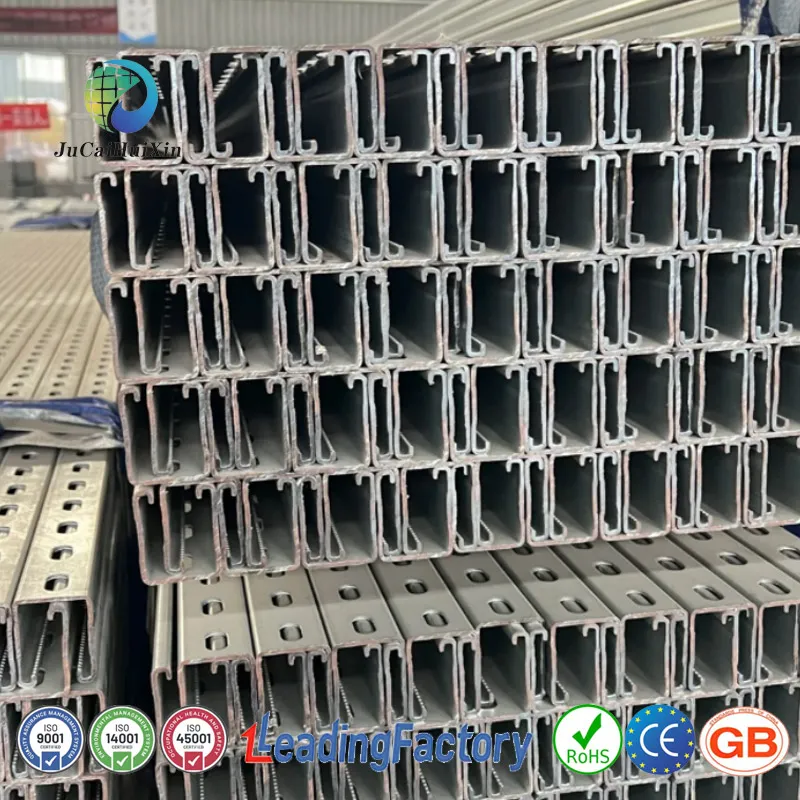

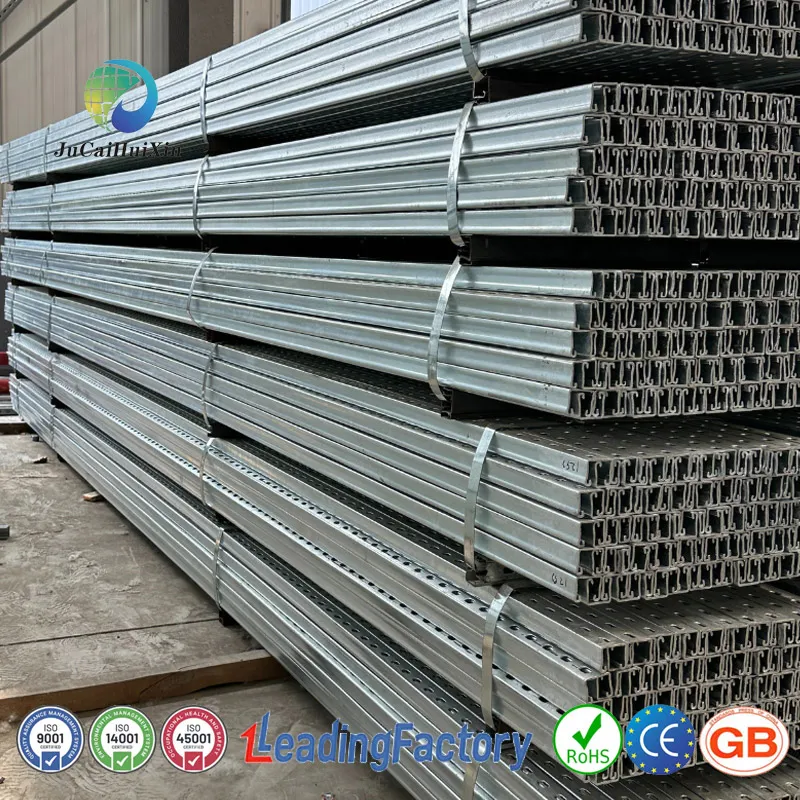

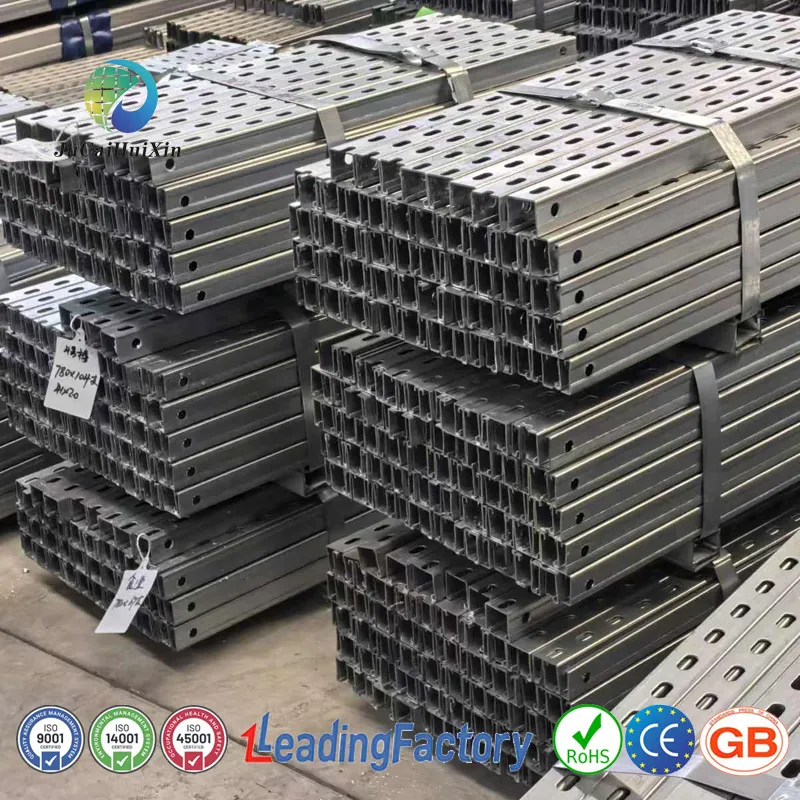

Hot Dipped Galvanized Steel C & U Channel structures are engineered for supporting solar panels in a sturdy and reliable manner. Made from high-quality steel, these purlins are designed to withstand various weather conditions and provide long-lasting support for solar structures. The versatile design allows for easy installation and compatibility with different solar panel sizes.

Material	Carbon Steel	Grade	Q235B, Q355, S350, S250

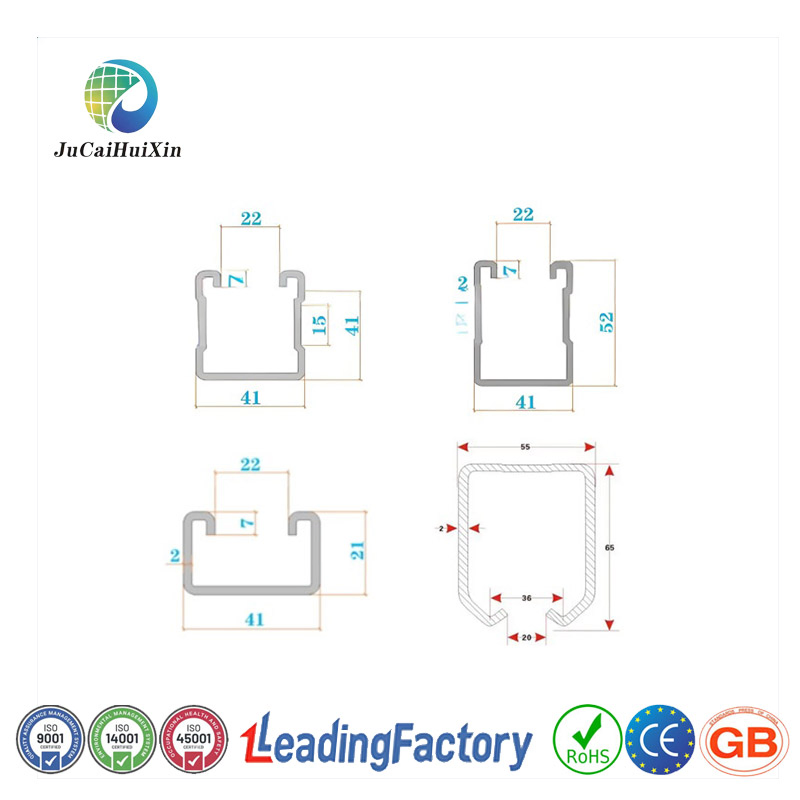

Size	4121/4135/4141/4152/4162/4172 or custom	Wall Thickness	1.5-3.0mm or custom
Coating	Zn Al Mg Alloy Coating / Hot Dipped Galvanized	Service Life	Over 25 years
Corrosion Resistance	Very Strong	OEM/ODM	Acceptable

Key Advantages

🛡️

1. Highly Corrosion-Resistant

Features excellent weather resistance, corrosion resistance, and fatigue resistance. This material handles uniform stress effectively, resisting external forces such as wind, snow, and earthquakes to ensure the safety of photovoltaic modules.

🏗️

2. High Structural Strength and Stability

Constructed from carbon steel with Zinc-Aluminum-Magnesium coating treatment. It provides sufficient structural strength and stability to resist the impact of seismic activity and heavy environmental loads on bearing capacity.

Certification & Capabilities

10,000 Square Meter Manufacturing Base: High-capacity physical factory with robust investment.
Advanced Production Matrix: 10 internationally advanced CZU steel automated production lines.
Global Standards: Fully certified with ISO triple system, CE, and RoHS.
Proven Annual Output: Capable of producing 200,000 tons of profiles annually.

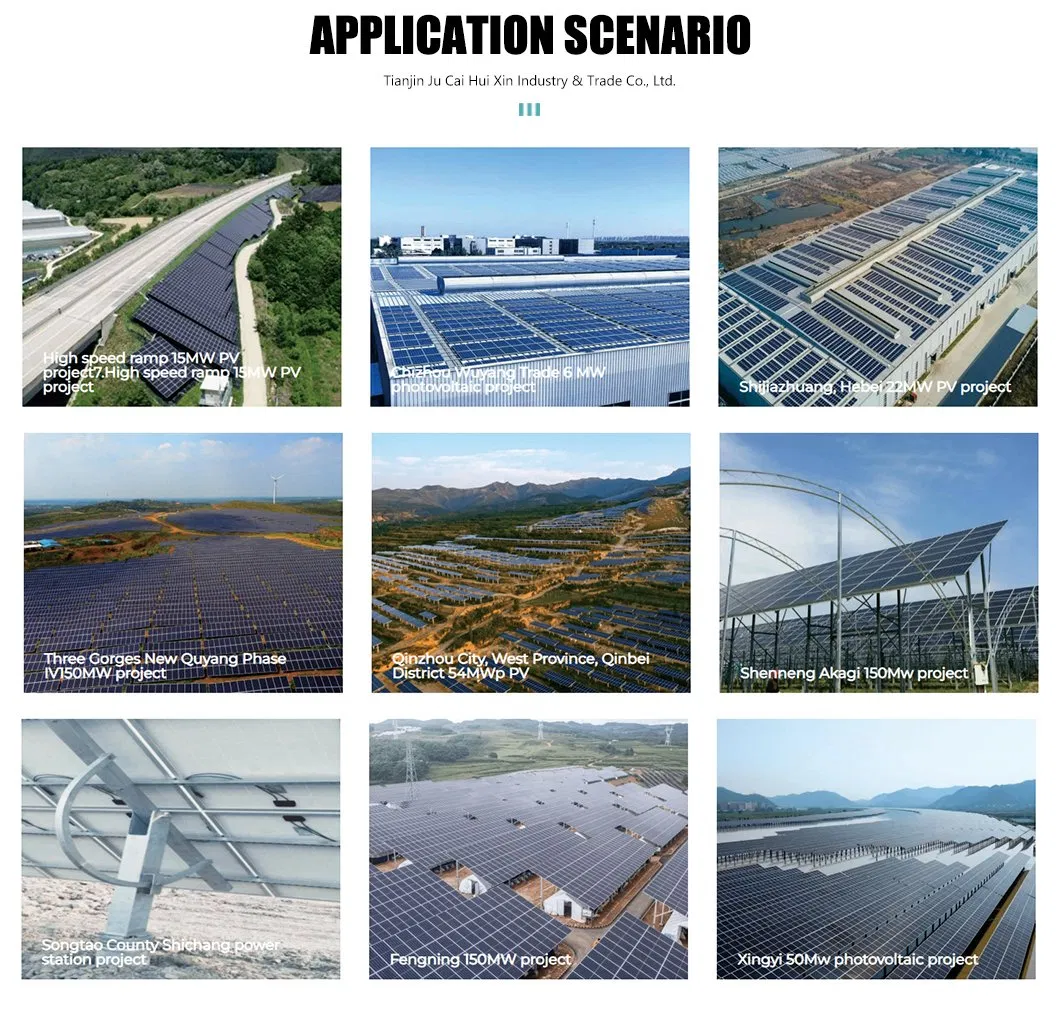

Application Scenarios

Professional Service

⭐

1v1 Exclusive Guidance: Full support from design to installation.
Rapid Response: Global time zone uninterrupted response.

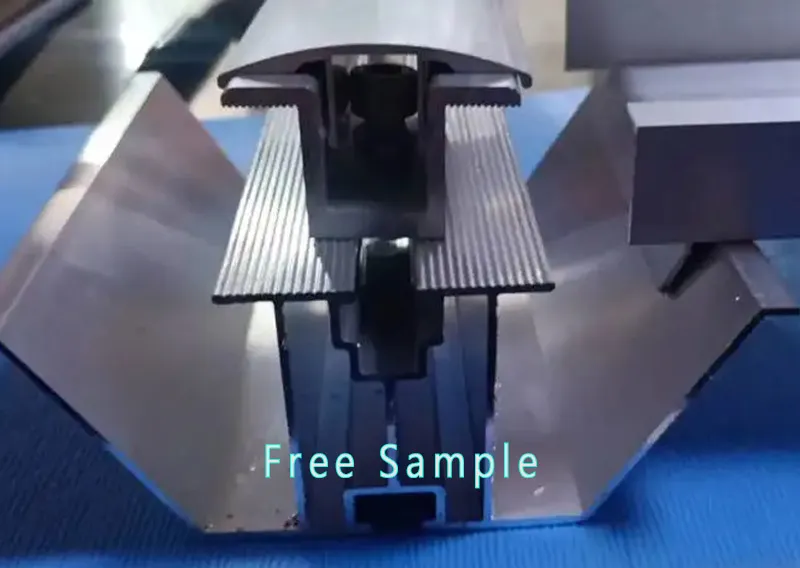

Free Design & Sample: Experience our quality before committing.
3D Modeling: Customized solutions provided within 48 hours.

Frequently Asked Questions

What material grades are available for the galvanized strut channel?

We offer Carbon Steel (cost-effective for general solar mounting) and Stainless Steel (304/316) for harsh environments like coastal areas or chemical plants where superior corrosion protection is required.

What surface finishes does the product come with?

Our channels are available in Hot-Dip Galvanized (HDG) for long-term outdoor use, Pre-Galvanized (GI) for indoor/dry environments, and Powder Coated for specific aesthetic or chemical resistance needs.

What sizes of strut channels do you offer for solar mounting?

Standard sizes include 41x41mm (most common for racking) and 41x21mm (slim version). Thicknesses range from 1.5mm to 3.0mm. Custom large-scale sizes like 50x50mm or 100x100mm are also available.

What is the maximum load capacity?

A standard 41x41x2.0mm HDG channel supports approx. 500-600kg/m. Increasing to 2.5mm thickness allows for 700-800kg/m, suitable for heavy panels and high wind/snow loads.

Can the strut channels be modified on-site?

Yes, they can be cut using hacksaws or angle grinders. Pre-drilled holes at 50mm/100mm spacing allow for easy bolting. We recommend using cold galvanizing spray on cut edges to maintain rust protection.

How is the quality of the galvanizing process ensured?

Hot-dip galvanizing is performed according to ASTM A123 standards, ensuring a minimum zinc thickness of 85 microns for outdoor applications. Each batch undergoes dimensional and tensile strength testing.
