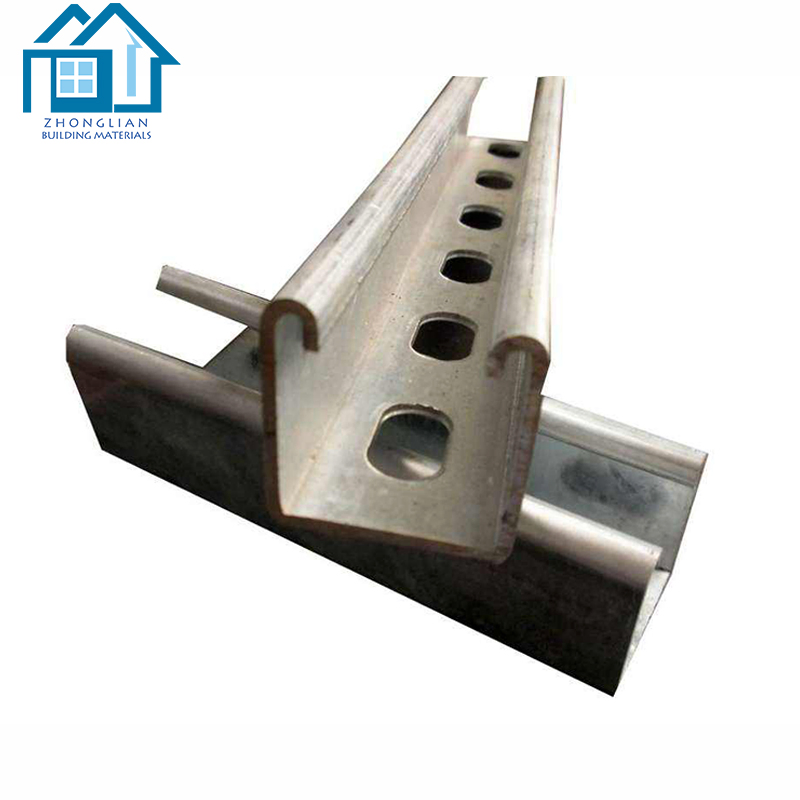

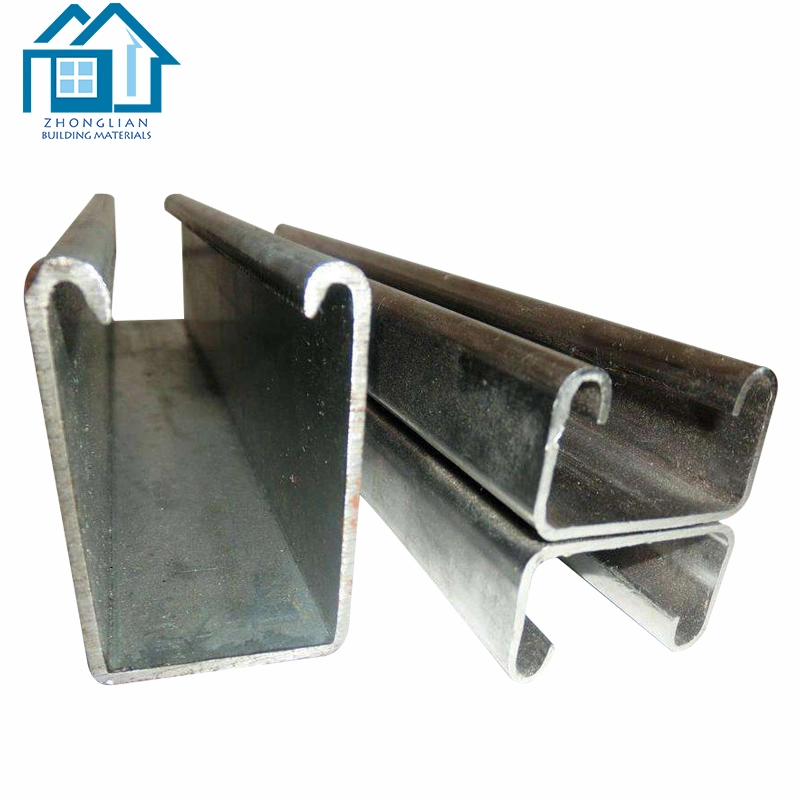

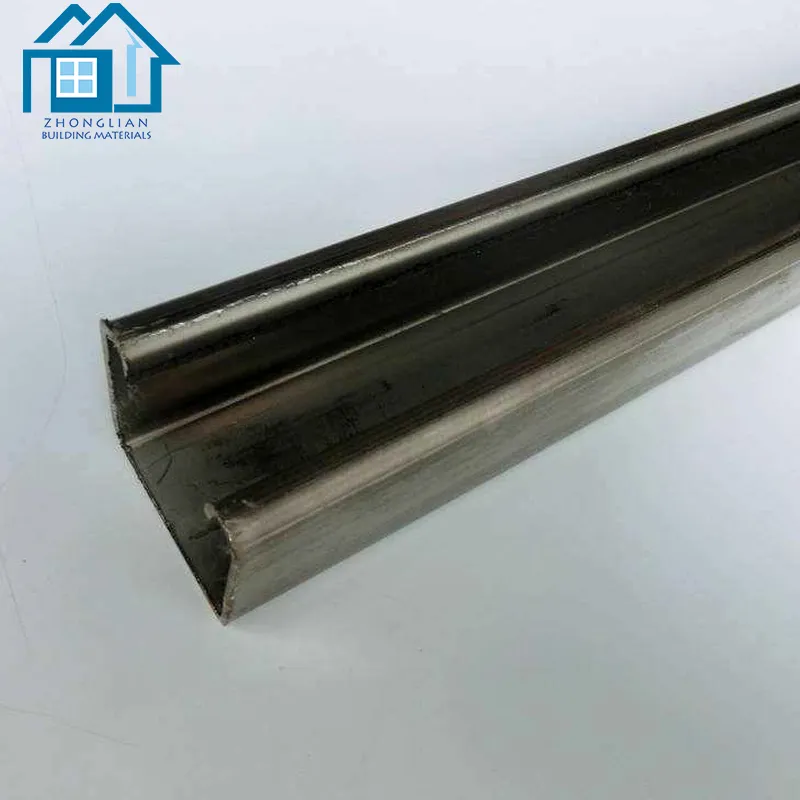

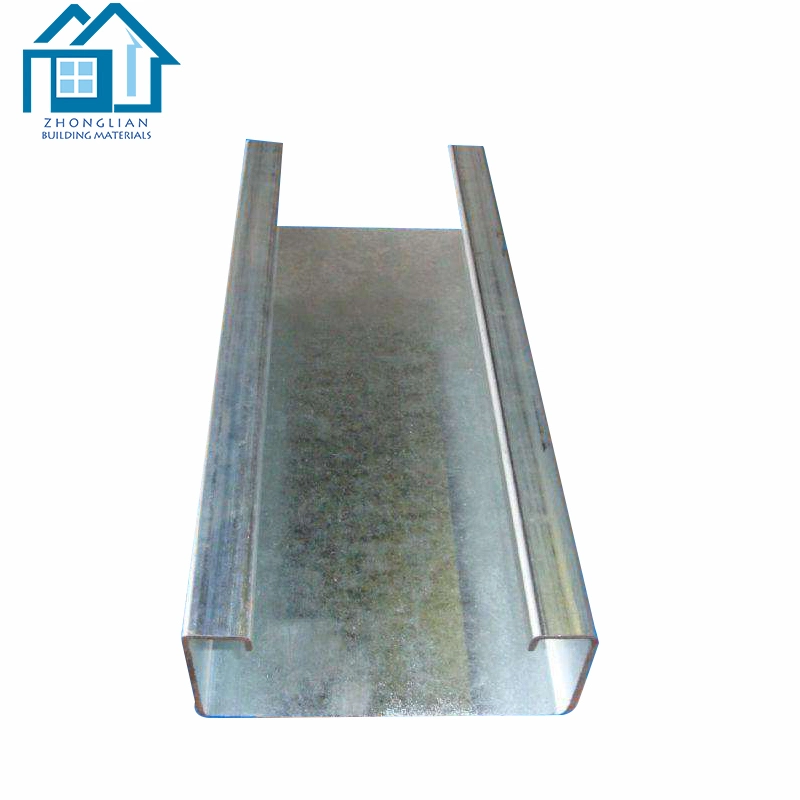

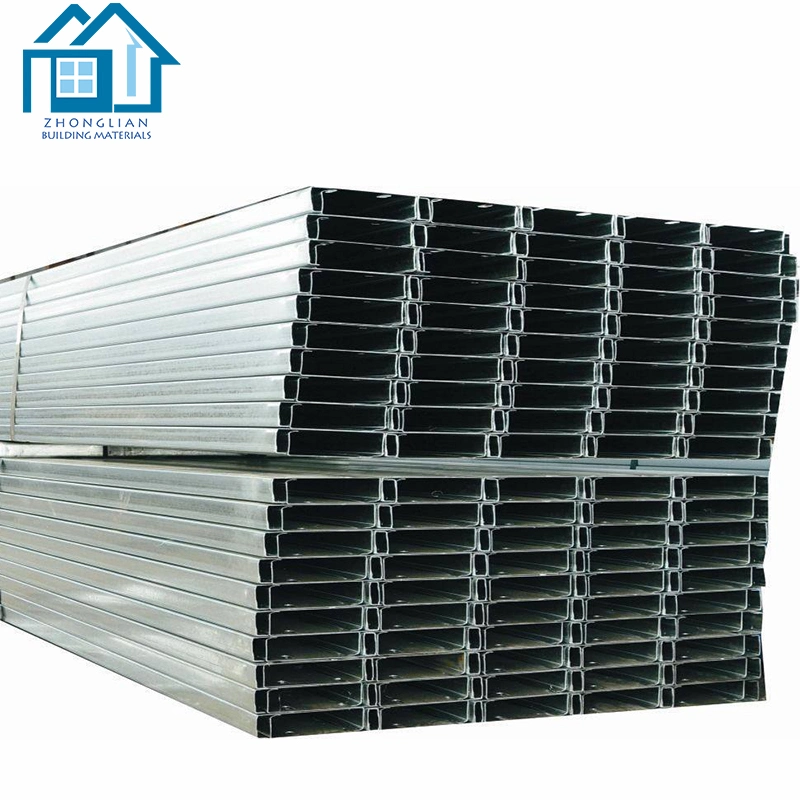

Standard Size Hot Dipped Galvanized Steel C Channel

Customization: Available
Type: Cold Bending Inner Edge Channel
Standard: GB, ASTM, JIS, AISI, DIN, BS

Product Description

🟦 Basic Information
Model NO.
steel c channel
Shape
C Channel
Perforated
Perforated
Length
5-12m
Transport Package
for Exporting Packing or as Requirement
Specification
AISI, ASTM, BS, DIN, GB, JIS
Origin
China
Production Capacity
50000pieces/Month
📋 Product Description
Standard size hot dipped galvanized steel c channel
Technical Specifications
Standard ASTM, DIN, JIS, GB, EN, AS/NZS
Steel Grade SS400, SS540, Q235B, Q345B, S235JR, G250, G350, G450
Thickness 0.7mm to 3.5mm
Length Any length available
✨ Galvanized, Rex Oxide or Primer coating service Available
⚙️ Hole punching processing Available
Code Size (HxBxCxT) Weight (kg/m) Code Size (HxBxCxT) Weight (kg/m)
180×40×20×2.5mm3.92521180×60×20×2.5mm6.673
280×40×20×3.0mm4.7122180×60×20×3.0mm8.007
3100×50×20×2.5mm4.7123180×70×20×2.5mm7.065
4100×50×20×3.0mm5.65224180×70×20×3.0mm8.478
5120×50×20×2.5mm5.10325200×50×20×2.5mm6.673
6120×50×20×3.0mm6.12326200×50×20×3.0mm8.007
7120×60×20×2.5mm5.49527200×60×20×2.5mm7.065
8120×60×20×3.0mm6.59428200×60×20×3.0mm8.478
9120×70×20×2.5mm5.88829200×70×20×2.5mm7.458
10120×70×20×3.0mm7.06530200×70×20×3.0mm8.949
11140×50×20×2.5mm5.49531220×60×20×2.5mm7.4567
12140×50×20×3.0mm6.59432220×60×20×3.0mm8.949
13160×50×20×2.5mm5.88833220×70×20×2.5mm7.85
14160×50×20×3.0mm7.06534220×70×20×3.0mm9.42
15160×60×20×2.5mm6.2835250×75×20×2.5mm8.634
Frequently Asked Questions
1. What are the available thickness ranges for your C channels?
Our galvanized steel C channels are available in a thickness range from 0.7mm to 3.5mm, suitable for various structural needs.
2. Which international standards do these steel channels comply with?
The products meet multiple global standards, including AISI, ASTM, BS, DIN, GB, JIS, and AS/NZS.
3. Can the C channel be customized in terms of length?
Yes, while our standard length ranges from 5 to 12 meters, we can provide C channels in any customized length according to your requirements.
4. What surface treatments and processing services do you offer?
We offer hot-dipped galvanized, Rex Oxide, or Primer coating services. Additionally, we provide precision hole punching processing.
5. What is the production capacity for these C channels?
Our monthly production capacity is approximately 50,000 pieces, ensuring a stable and reliable supply for large-scale projects.
6. Are these C channels perforated or solid?
Our standard model is perforated, making it ideal for solar mounting systems and various industrial assembly applications.
