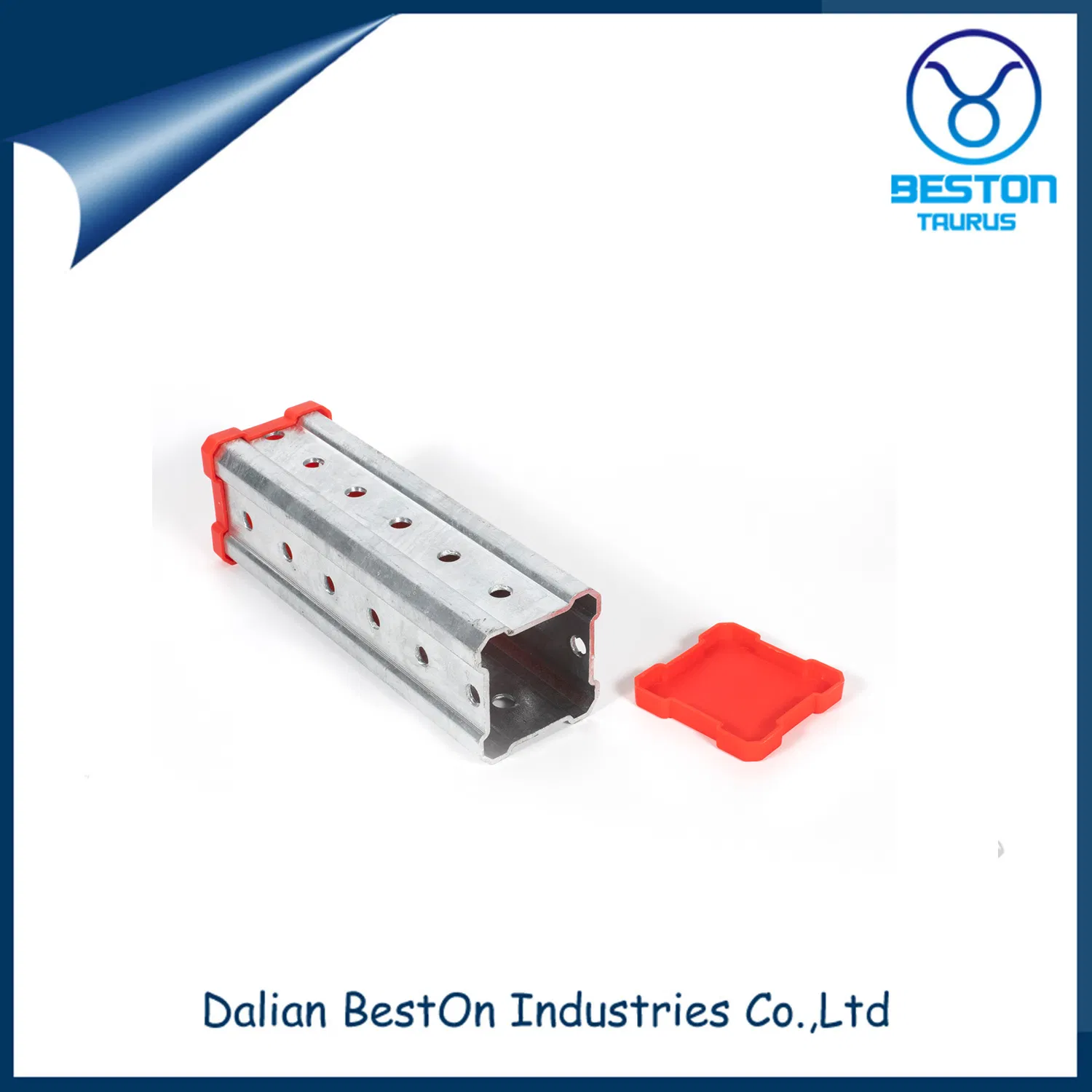

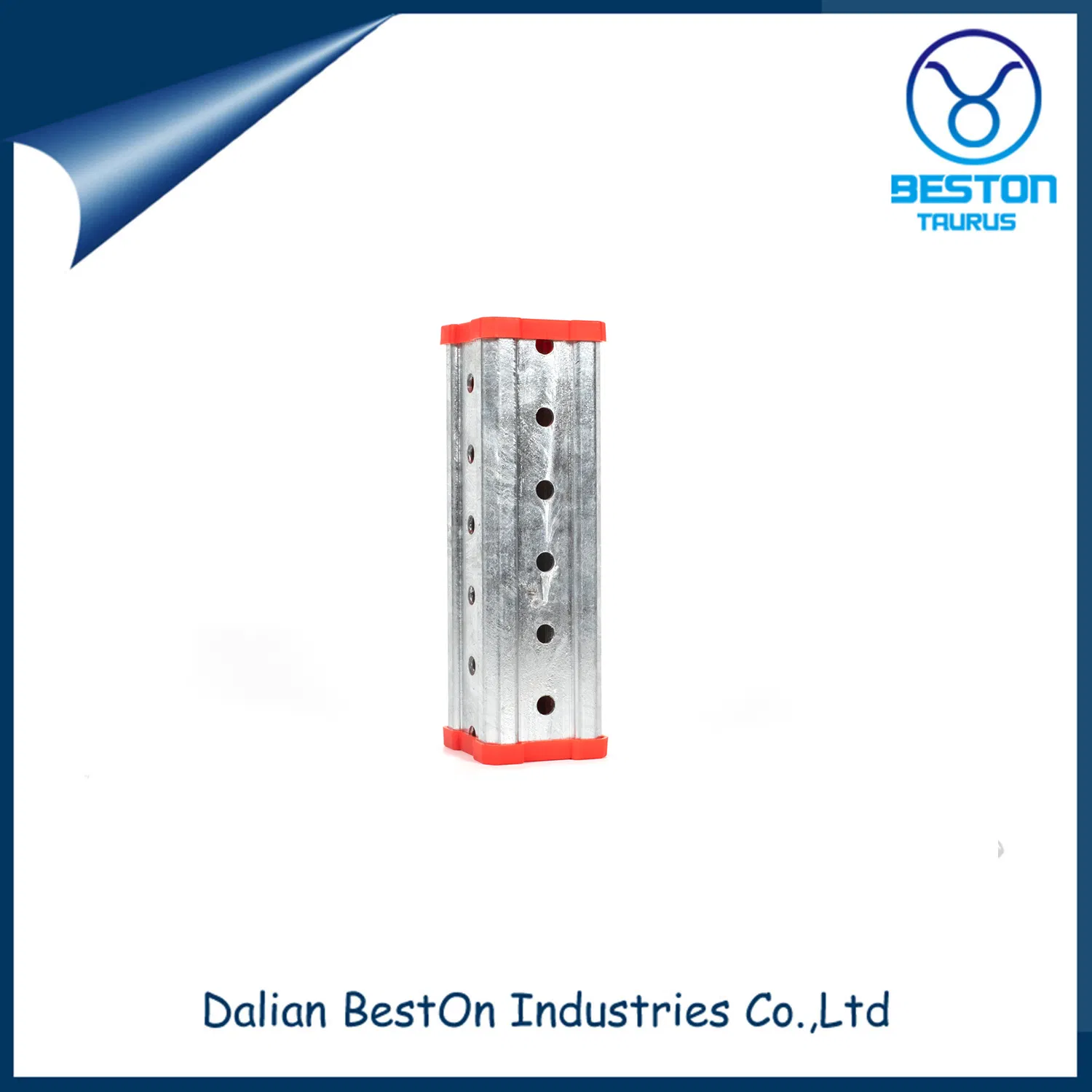

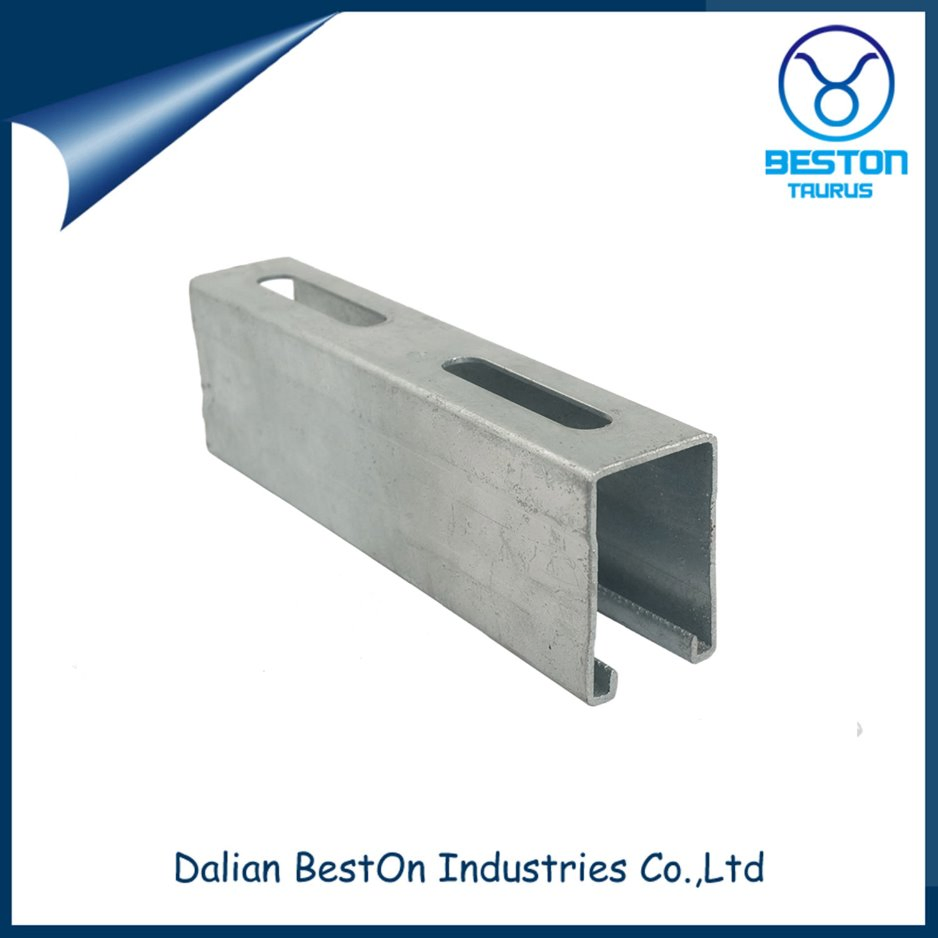

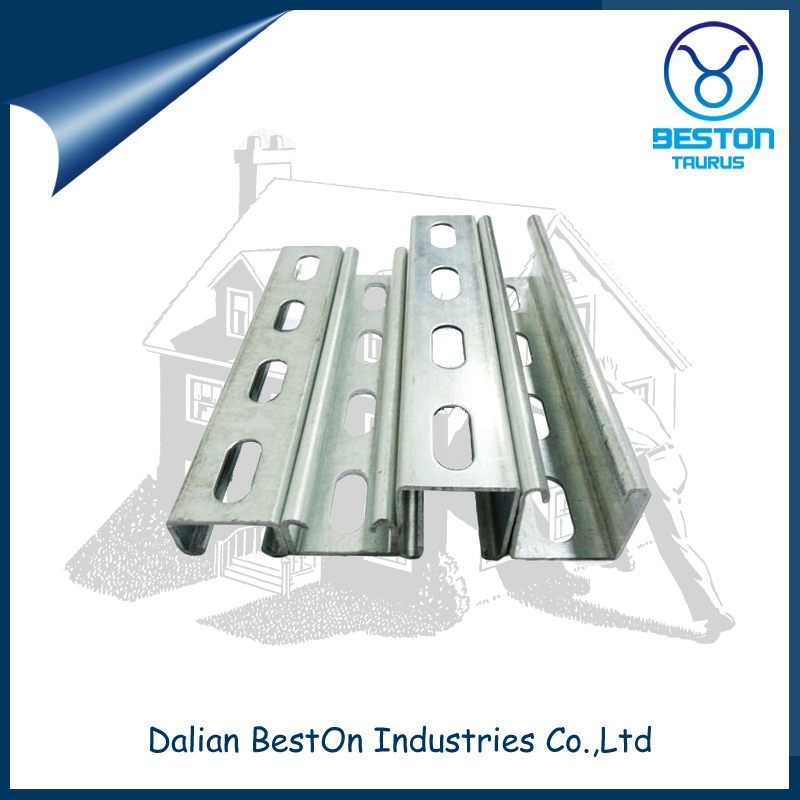

Information of Struct Channel: High quality & reasonable Price, no need for welding and punching, can use repeatedly, wide usage range, flexible for installation.

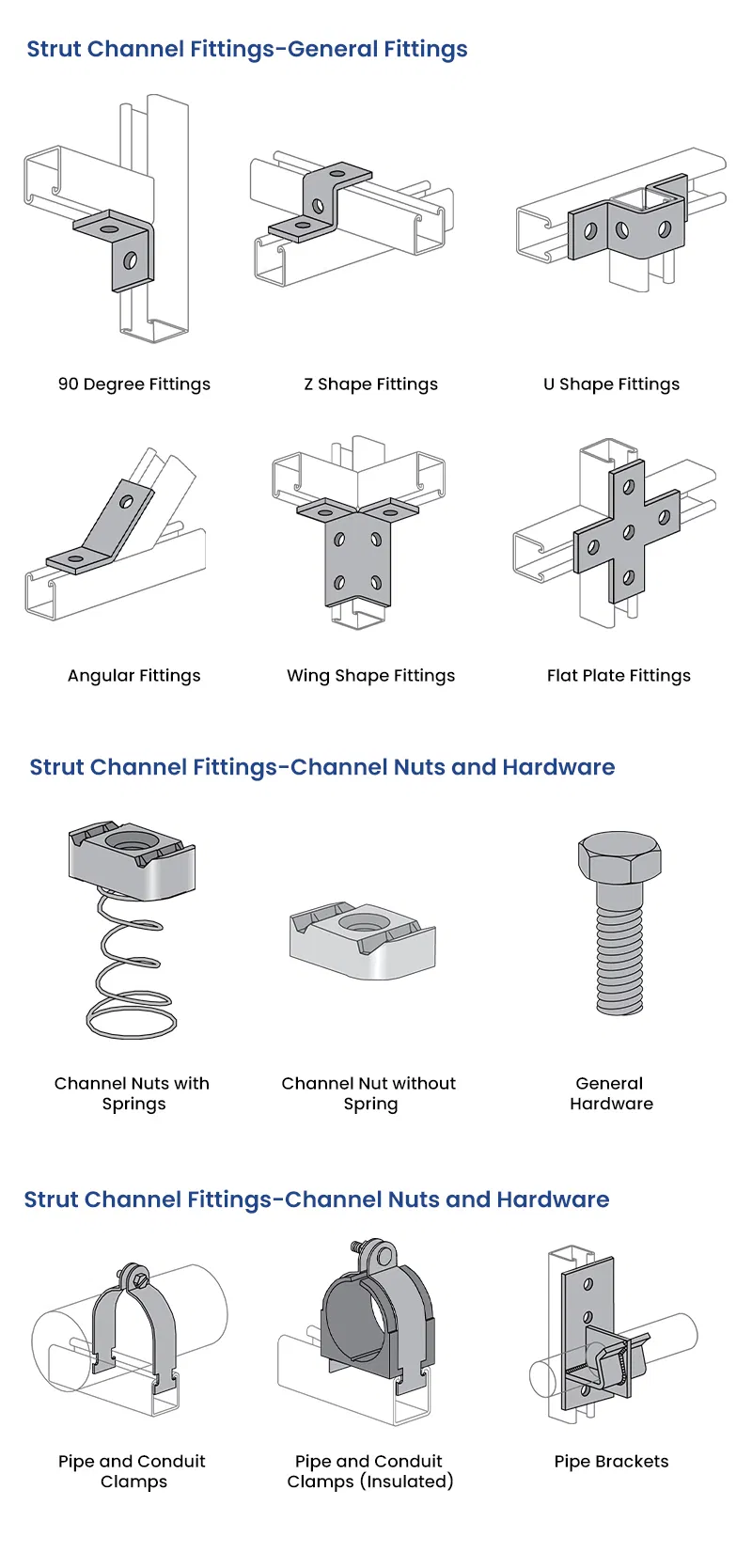

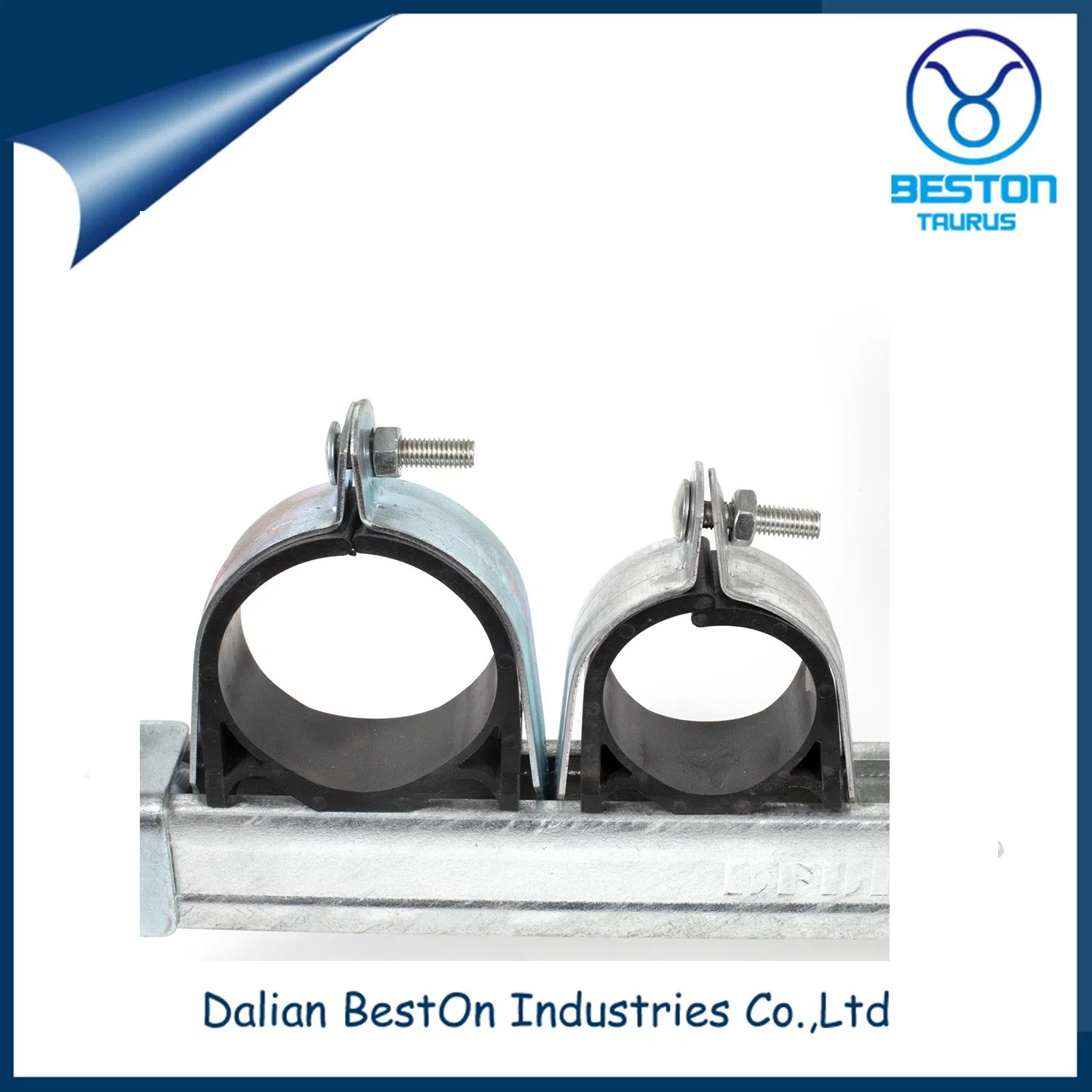

Application: A strut channel is used to mount, brace, support, and connect lightweight structural loads in building construction. These include pipes, electrical and data wire, and mechanical systems such as ventilation, air conditioning, and other mechanical systems. Strut channel is also used for other applications that require a strong framework, such as workbenches, shelving systems, equipment racks, etc.
| Steel Strut Channel / C Channel Specifications | |
|---|---|
| Grade | A36/Gr.42/Gr.50/Gr.60/ss440/S420NL etc. |
| Type | GB standard (100*48mm--400*102mm), JIS standard (50*25mm--250*90mm), ASTM/DIN standard |
| Technique | Hot Rolled/Cold Rolled |
| Surface processing | Pre-galvanized / Hot Dip Galvanized |

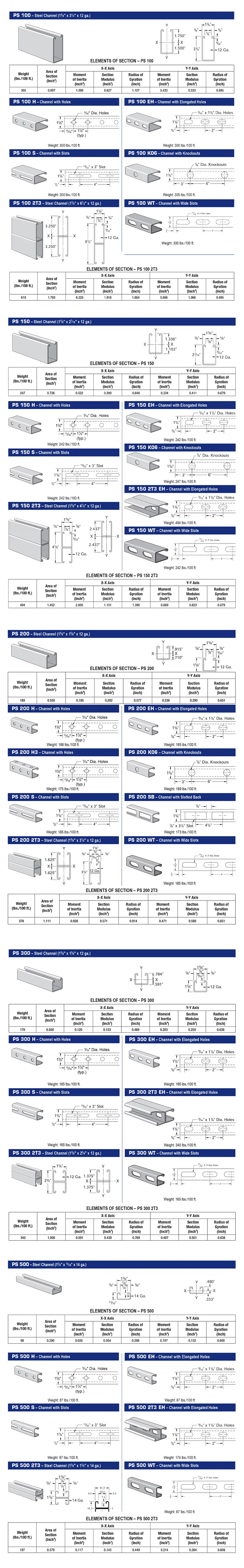

| No. | Width (mm) | Height (mm) | Thickness (mm) | Standard Length (mm) |
|---|---|---|---|---|
| 1 | 41 | 21 | 1.2, 1.5, 2, 2.3, 2.5 | 3000, 6000 |
| 2 | 41 | 25 | 1.2, 1.5, 2, 2.3, 2.5 | 3000, 6000 |
| 3 | 41 | 41 | 1.5, 2, 2.3, 2.5 | 3000, 6000 |
| 4 | 41 | 62 | 1.5, 2, 2.3, 2.5 | 3000, 6000 |
| 5 | 41 | 72 | 1.5, 2, 2.3, 2.5 | 3000, 6000 |
| 6 | 41 | 82 | 1.5, 2, 2.3, 2.5 | 3000, 6000 |
1. HDG (Hot Dip Galvanized): Average zinc thickness 40-65 microns. Ideal for outdoor and corrosive environments.
2. Pre-galvanized: Smooth and ductile coating in accordance with ASTM 653. Suitable for indoor use.

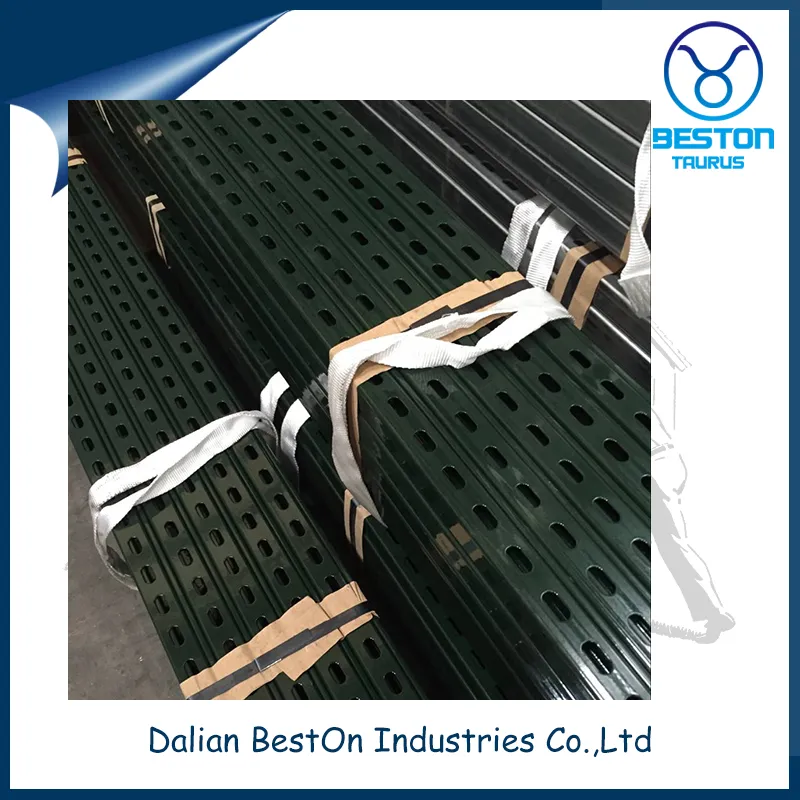

3. Powder Coating: Customizable colors with excellent corrosion resistance and aesthetics for indoor projects.
