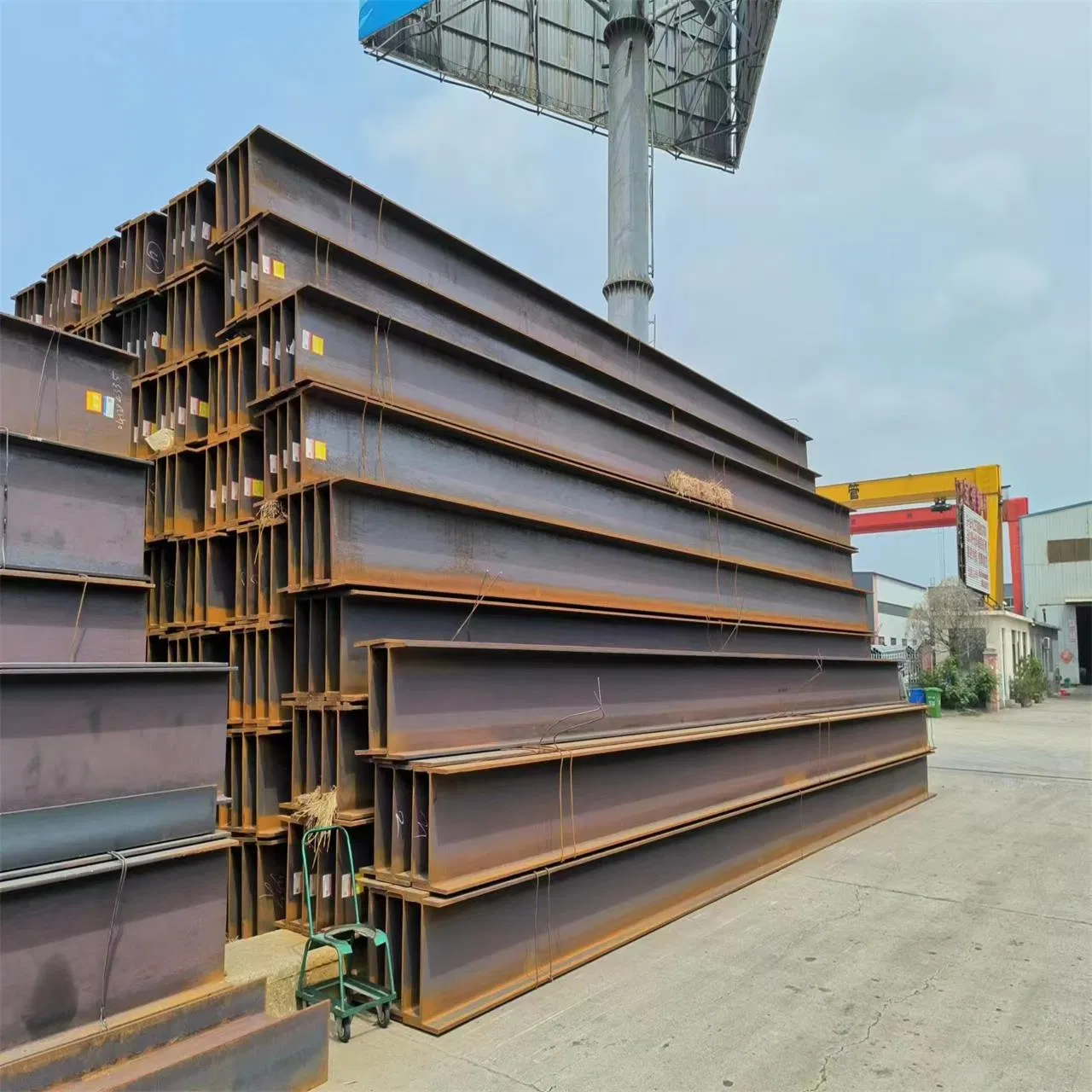

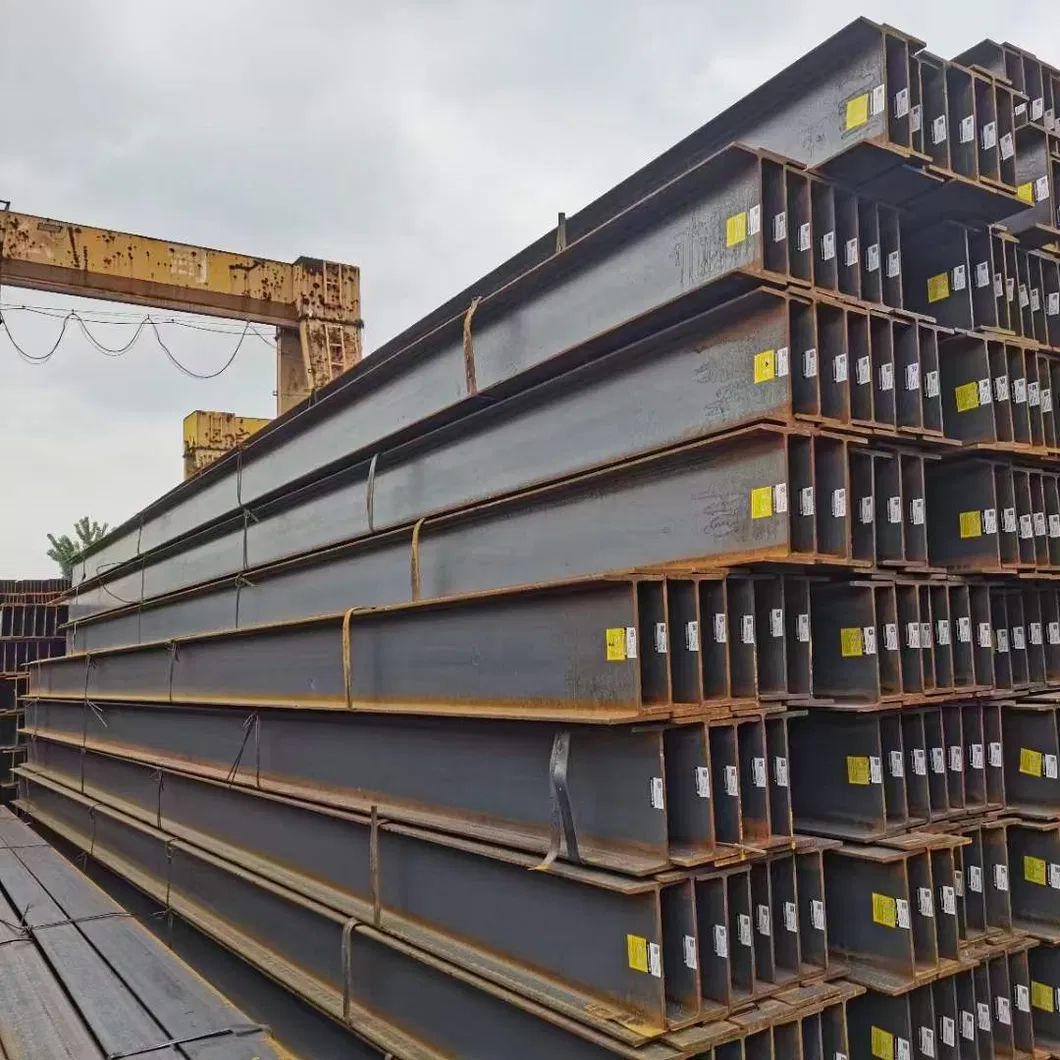

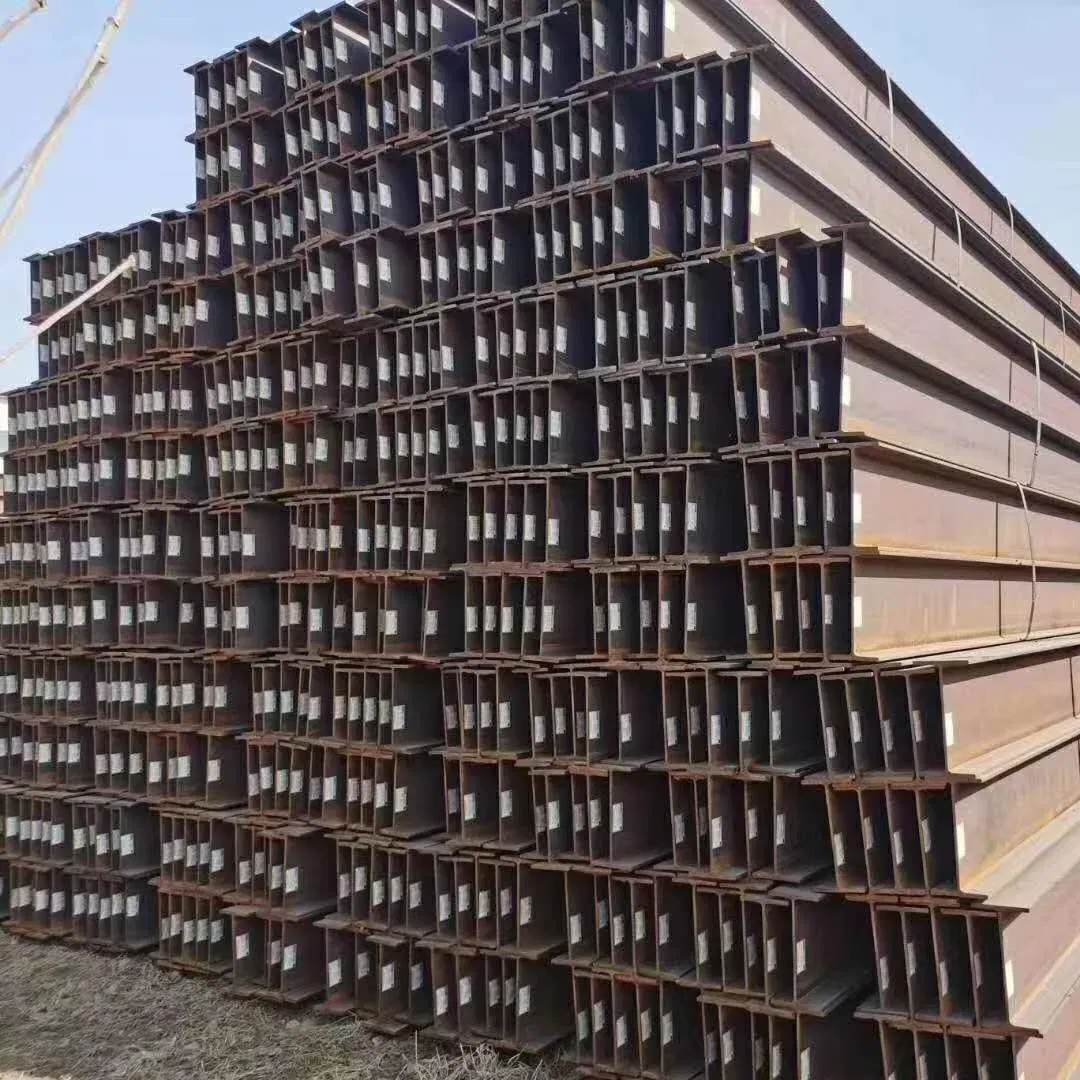

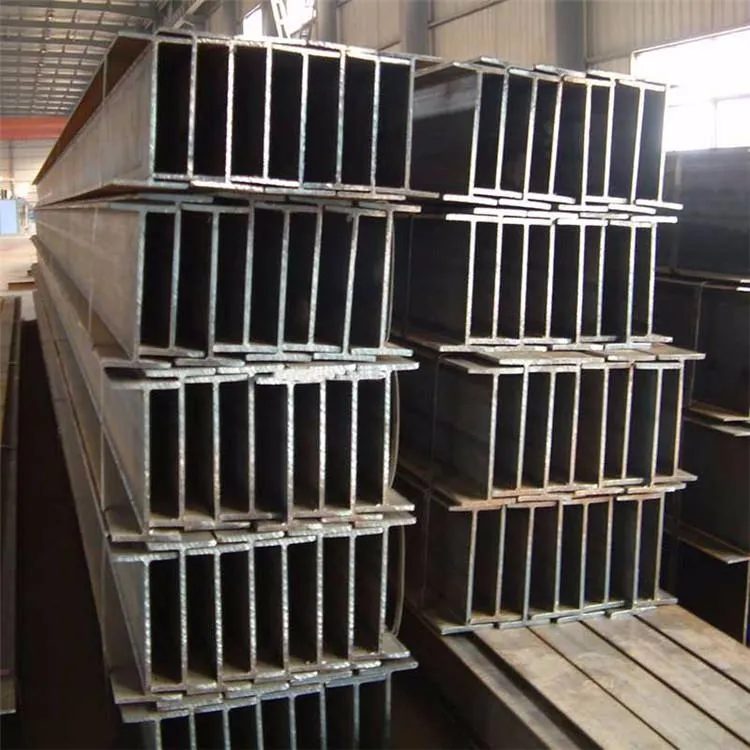

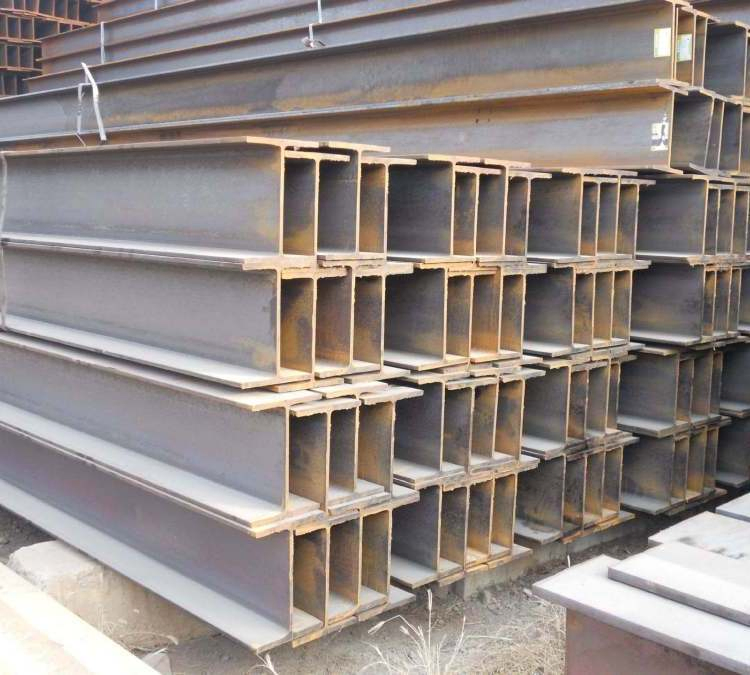

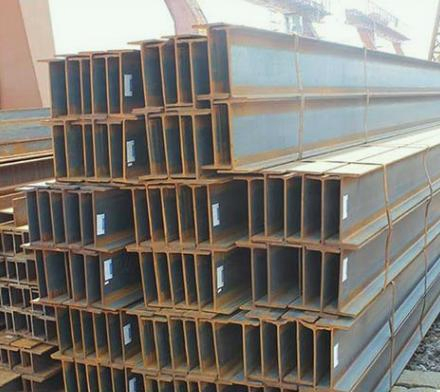

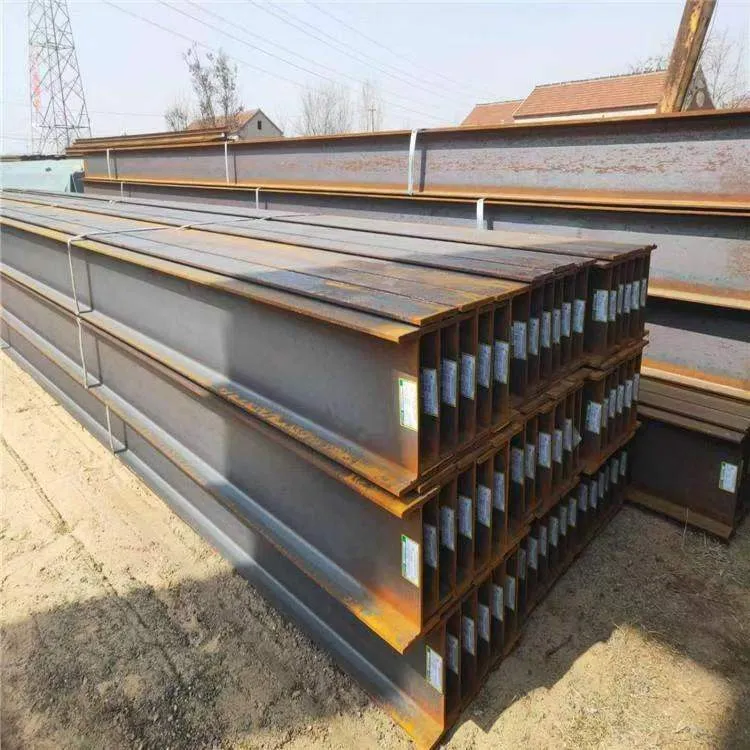

H-beam is a highly efficient profile for structural construction with optimized cross-sectional area distribution and a superior strength-to-weight ratio. It is classified into three main categories: Wide Flange H-beam (HK), Narrow Flange H-beam (HZ), and H-shaped Steel Pile (HU).

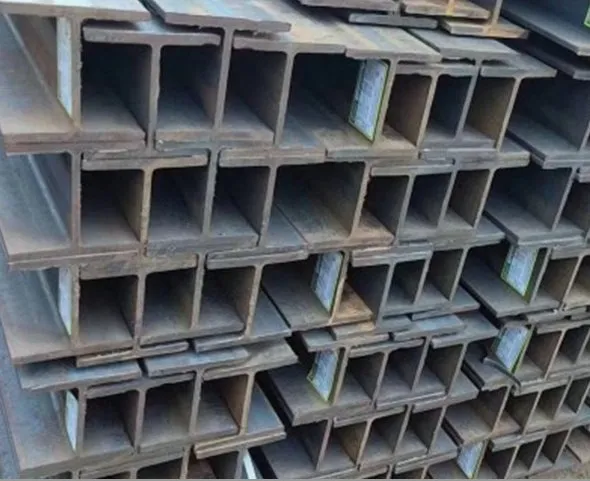

Standard representation involves Height (H) × Width (B) × Web Thickness (t1) × Flange Thickness (t2). For example, a Q235B beam at 200 × 200 × 8 × 12 denotes a 200mm height and width, with an 8mm web and 12mm flange thickness.
| Product Attribute | Details |
|---|---|
| Product Name | Carbon Steel I/U/H profiles steel beams Wide Flange Section For Construction |
| Shape | H & I beam |
| Technique | Hot rolled / Welded |
| Standard | ASTM / AS / BS / GB / JIS |
| Materials | Q235B, SS400, A-36, AS300B, S355J0, S450J0-T, S275JR |
| Size | 100*50*5*7 - 900*300*16*28mm |

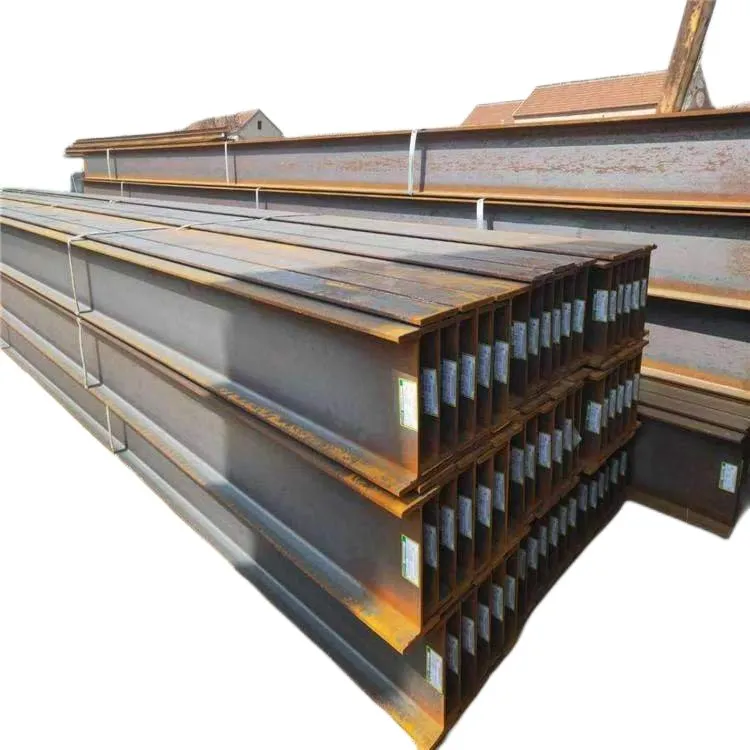

| Surface Treatment | Galvanized / Black |
| Spec (inx1b/ft) | Height (mm) | Width (mm) | Web (mm) | Flange (mm) | Weight (kg/m) |
|---|---|---|---|---|---|
| W6X7 | 147 | 100 | 3.3 | 4.2 | 10.5 |
| W6X12 | 153 | 102 | 5.8 | 7.1 | 18.0 |
| W6X25 | 162 | 154 | 8.1 | 11.6 | 37.1 |
| W8X10 | 200 | 100 | 4.3 | 5.2 | 15.0 |
| W8X21 | 210 | 134 | 6.4 | 10.2 | 31.3 |
Widely used in various building structures, bridges, vehicles, brackets, and machinery. It is essential for industrial structures such as steel bearing brackets, steel piles, underground engineering support, petrochemical and power equipment structures, shipbuilding, machinery frame manufacturing, train and tractor beam brackets, and port conveyors.

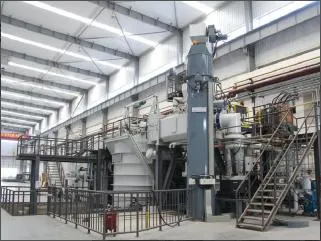

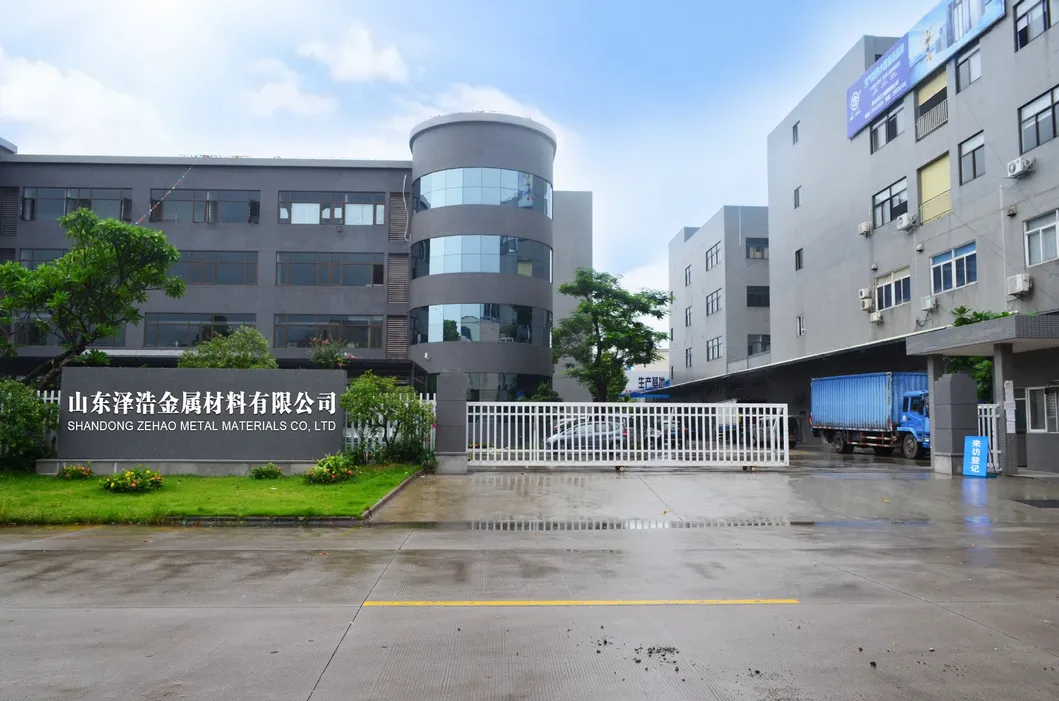

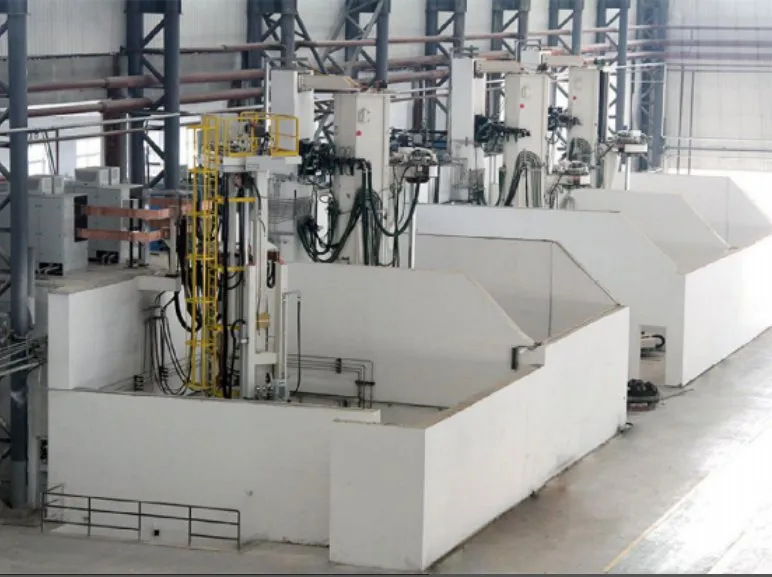

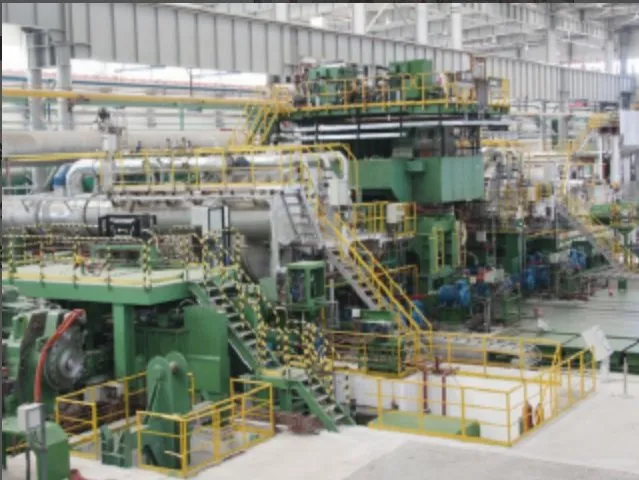

The enterprise specialized in the research, smelting, and processing of high-performance materials including titanium, zirconium, tungsten, molybdenum, and various corrosion-resistant alloys. With a factory area of 120,000 square meters, the facility is equipped with advanced 2t vacuum induction furnaces, vacuum consumable arc furnaces, and 2800mm four-high reversing mills. Our testing center features more than 100 sets of instruments, including NDT systems, spectrum analyzers, and ultrasonic flaw detection systems to ensure rigorous quality standards for global exports.
