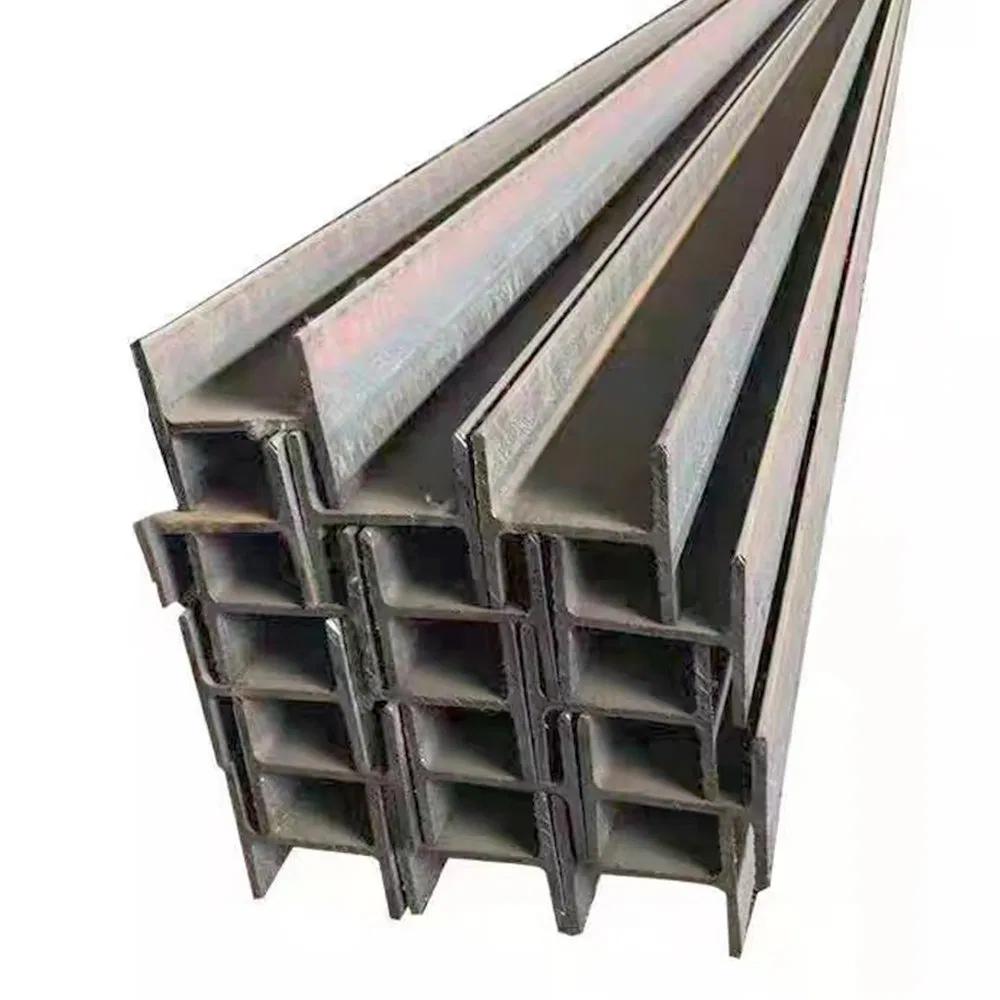

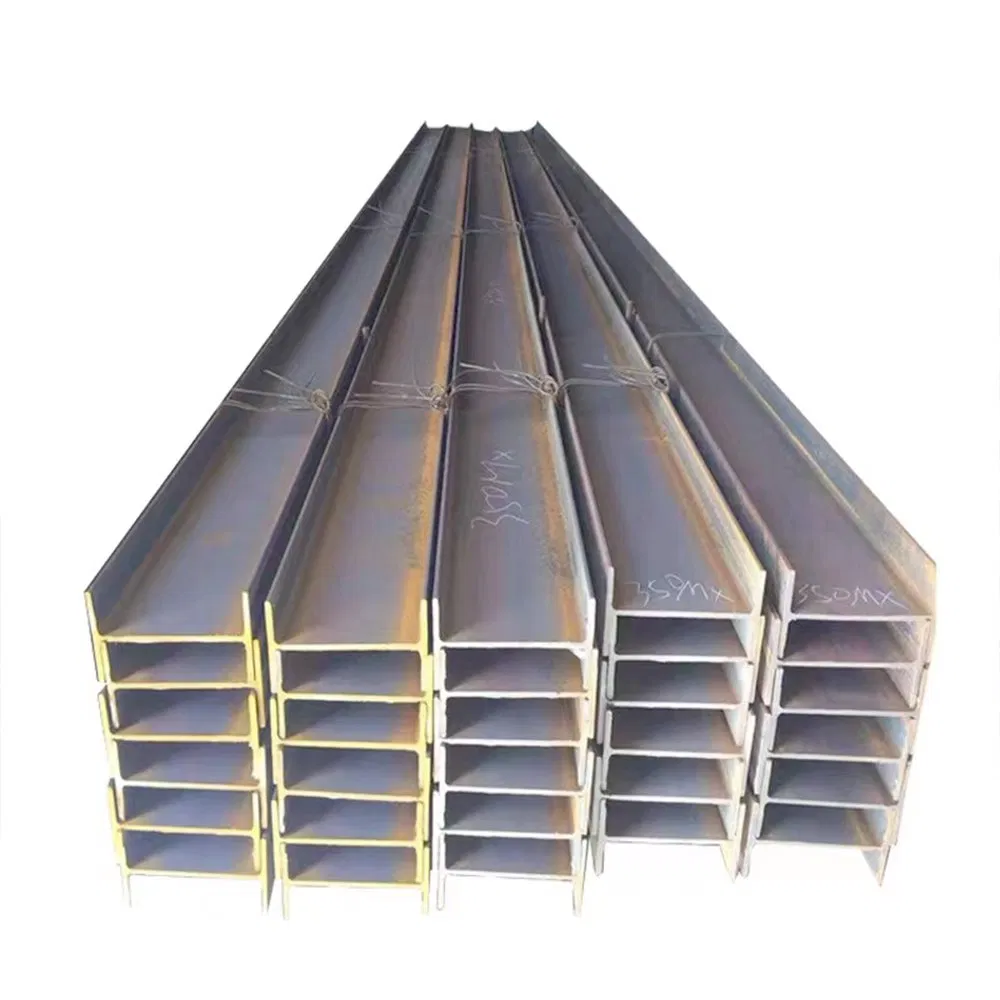

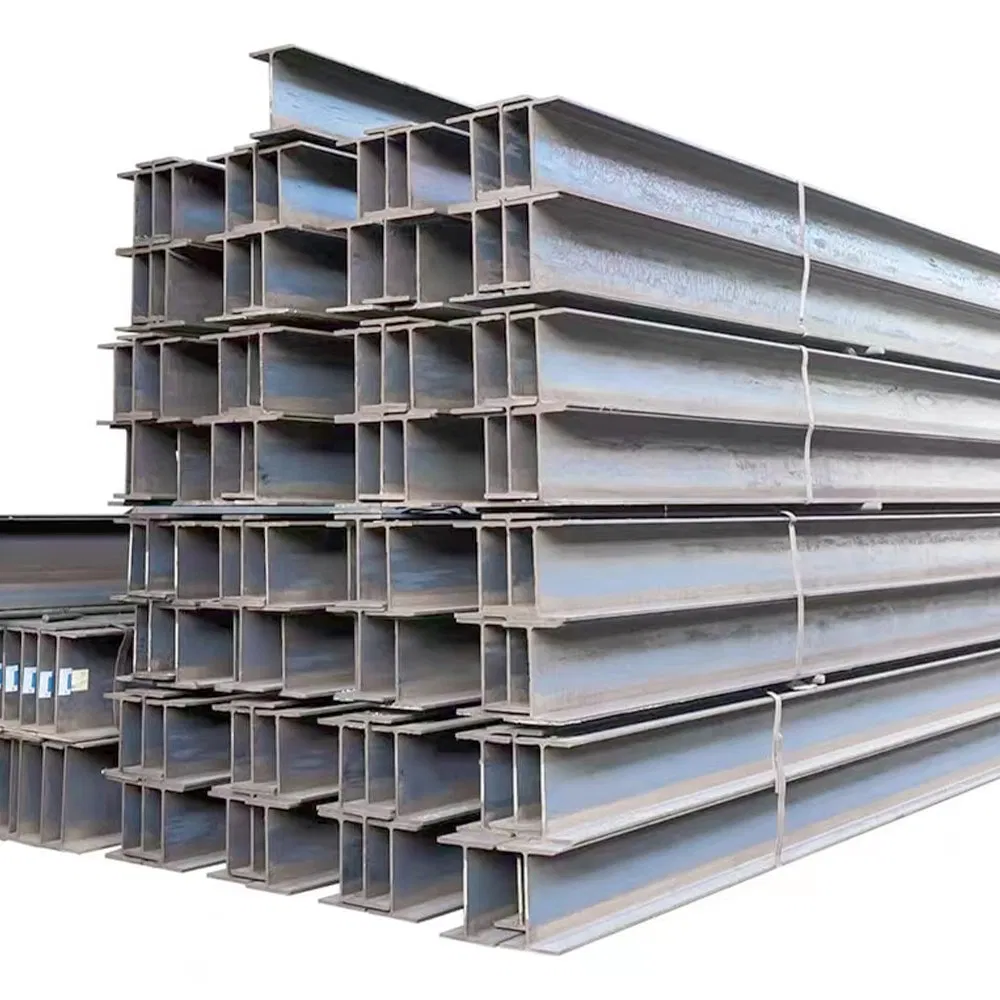

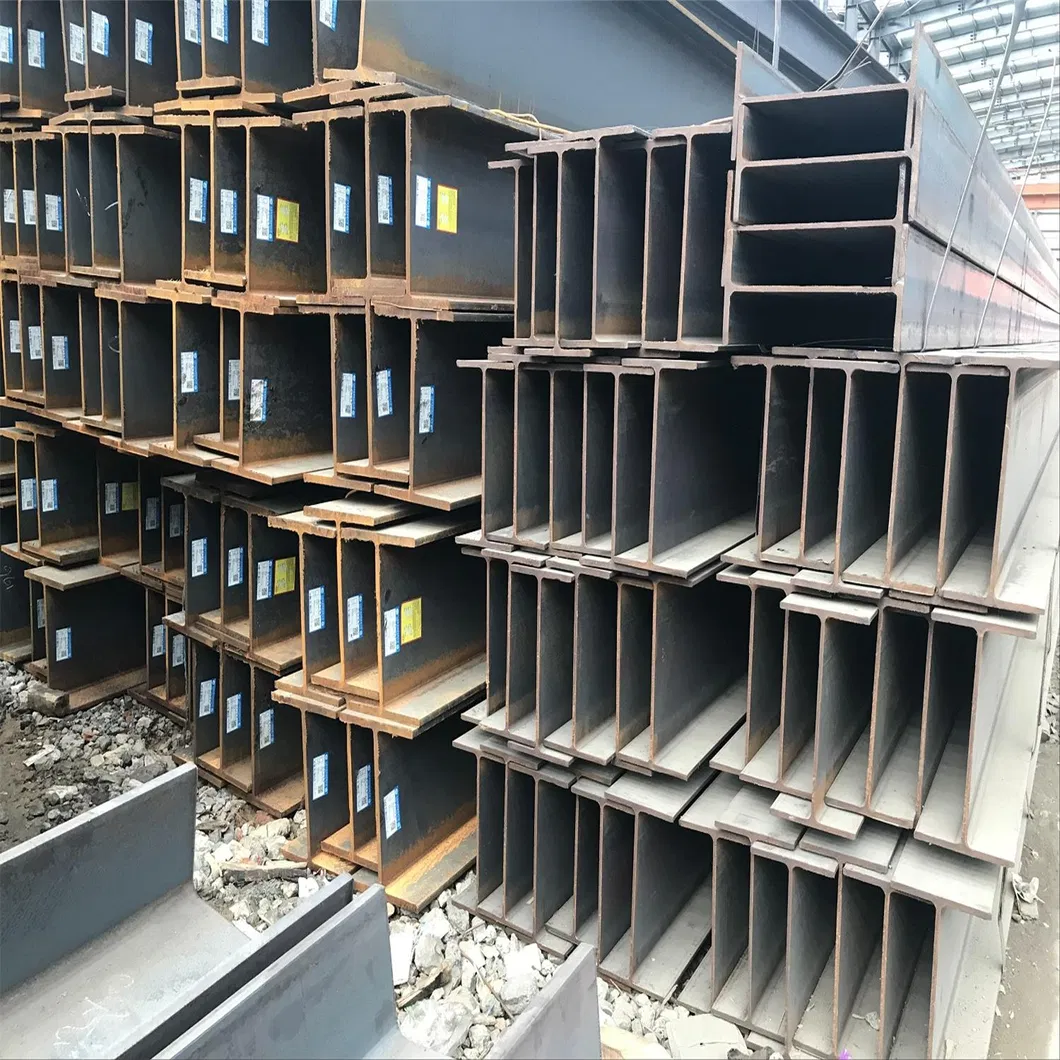

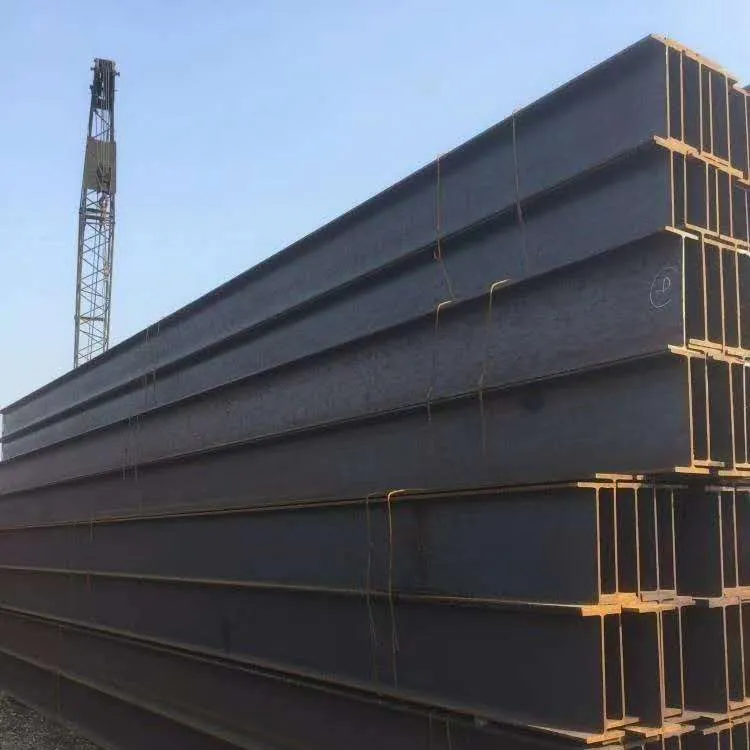

H-beam is a new type of steel for economic construction. It is divided into wide flange H-beam (HK), narrow flange H-shaped steel (HZ), and H-shaped steel pile (HU). The representation method typically includes height × width × web thickness × wing thickness.
| Product Name | Carbon Steel I/U/H profiles steel beams Wide Flange Section |
|---|---|
| Shape | H & I beam |
| Technique | Hot rolled / Welded |
| Standard | ASTM / AS / BS / GB / JIS |
| Materials | Q235B, SS400, A-36, AS300B, S355J0, S450J0-T, S275JR |
| Size | 100*50*5*7-900*300*16*28mm |

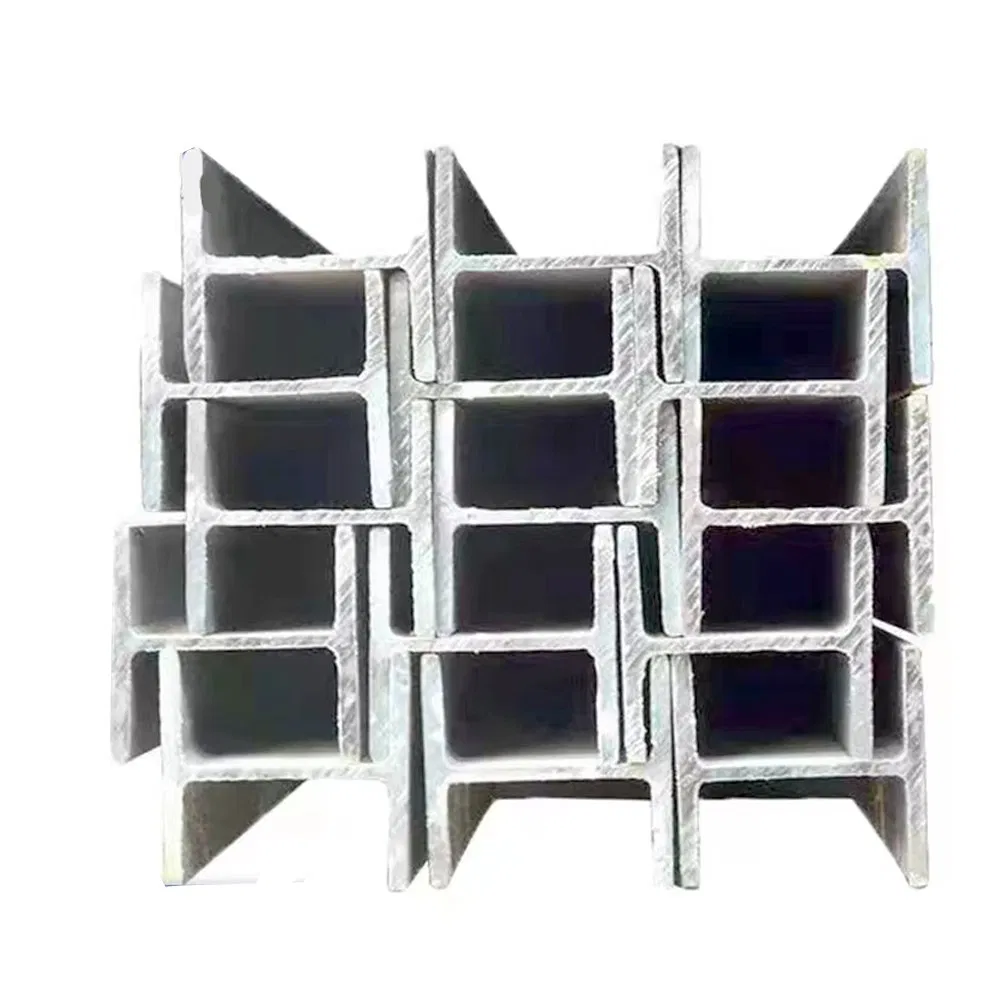

| Surface | Galvanized / Black |
| Spec (inx1b/ft) | Height (mm) | Width (mm) | Web (mm) | Flange (mm) | Weight (kg/m) |
|---|---|---|---|---|---|
| W6X7 | 147 | 100 | 3.3 | 4.2 | 10.5 |
| W6X12 | 153 | 102 | 5.8 | 7.1 | 18.0 |
| W6X20 | 157 | 153 | 6.6 | 9.3 | 29.8 |
| W8X10 | 200 | 100 | 4.3 | 5.2 | 15.0 |
| W8X21 | 210 | 134 | 6.4 | 10.2 | 31.3 |

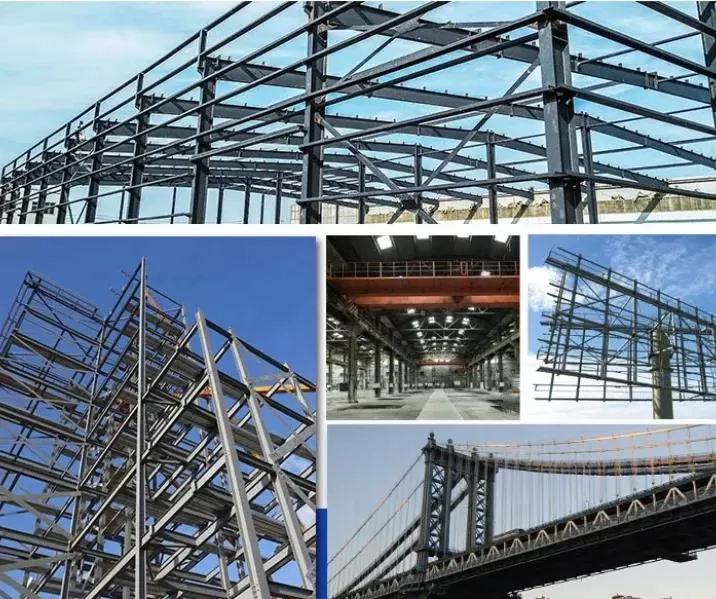

Widely used in building structures, bridges, vehicles, brackets, and machinery. It serves as bearing brackets for industrial structures, underground engineering supports, power industrial equipment frames, shipbuilding, and railway vehicle beams.

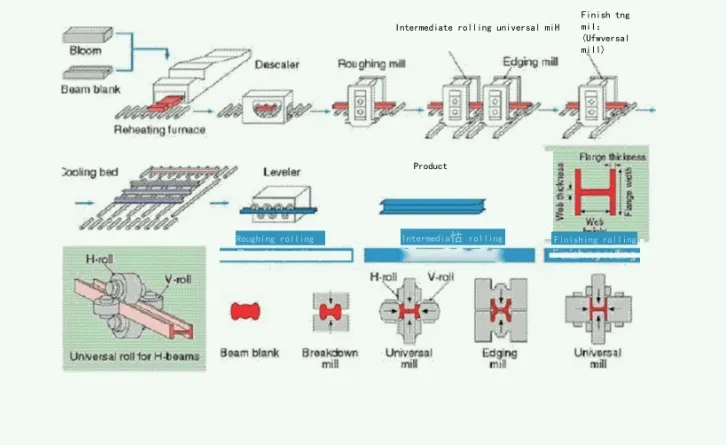

As a leading steel group in China with ISO9001 certification, we integrate production, trade, warehousing, and processing. We specialize in various structural steels including I-beams, H-beams, angle steels, and pipes. Our advanced production equipment ensures complete processing from coking and sintering to rolling, providing one-stop purchasing solutions for global customers across Europe, America, and Southeast Asia.
