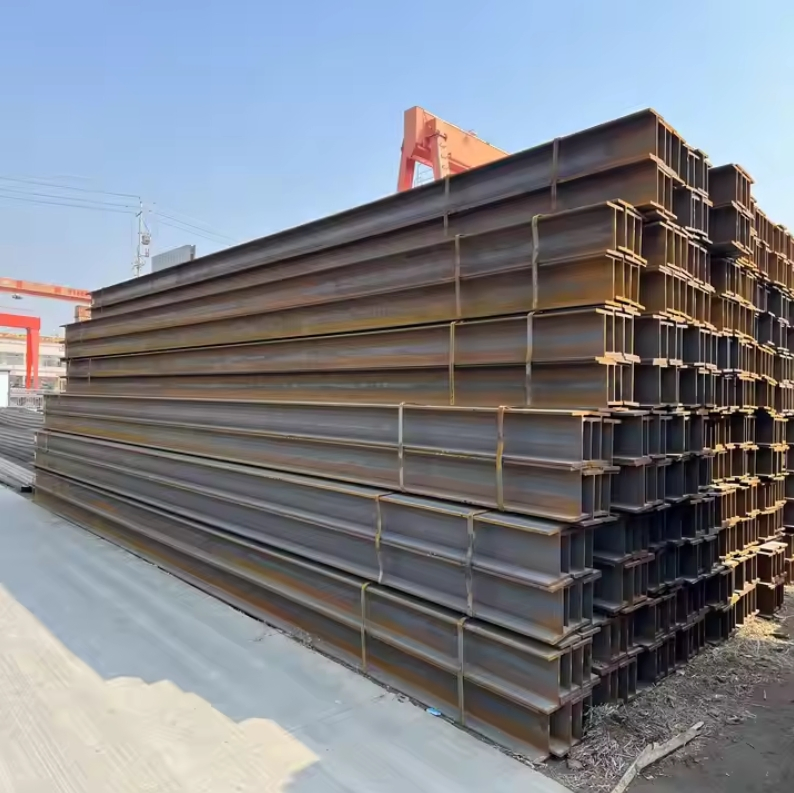

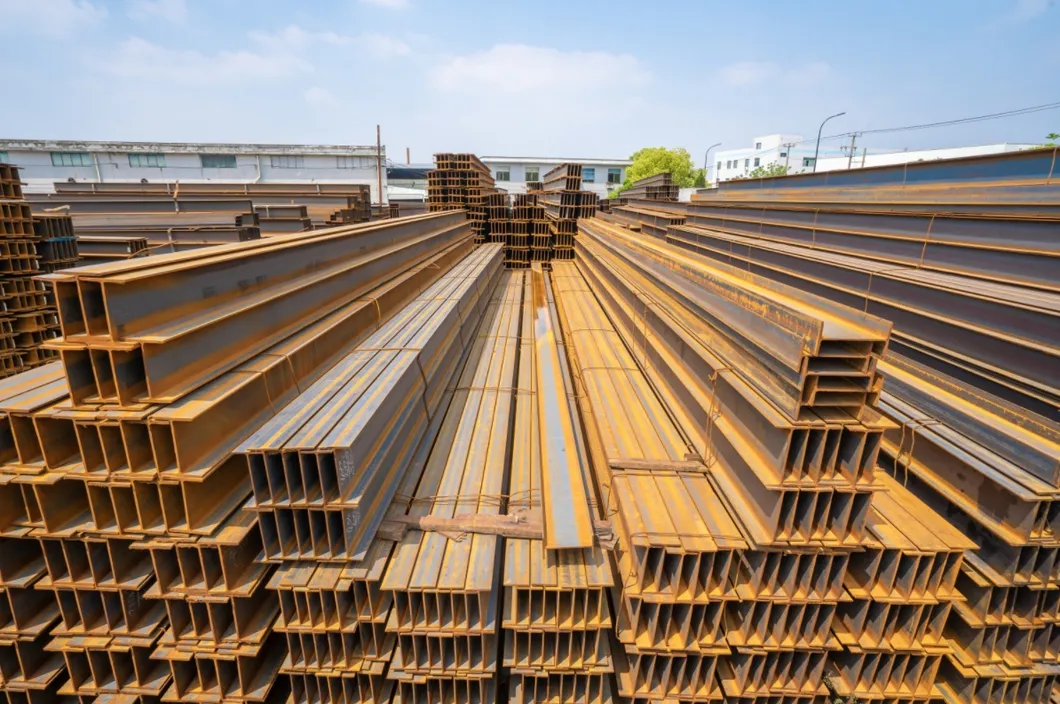

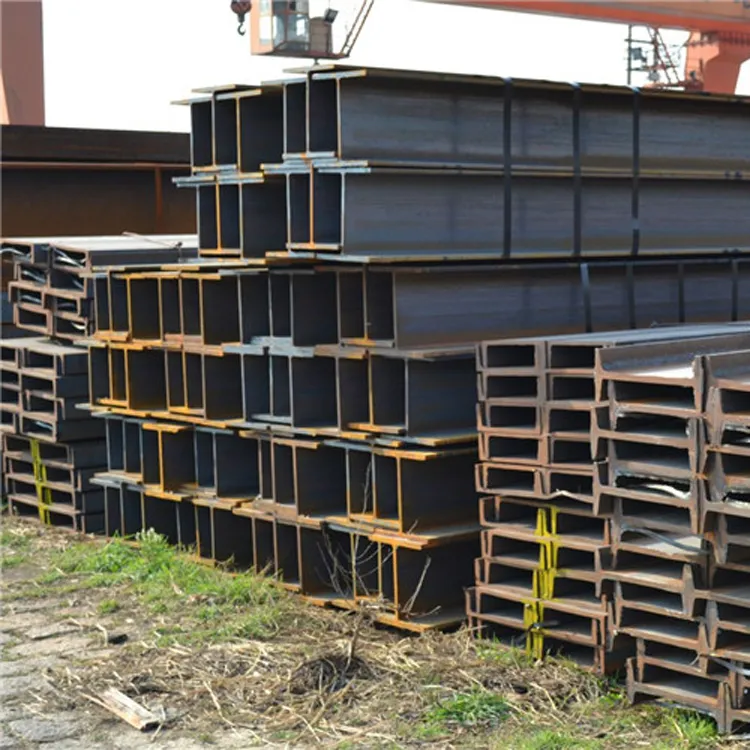

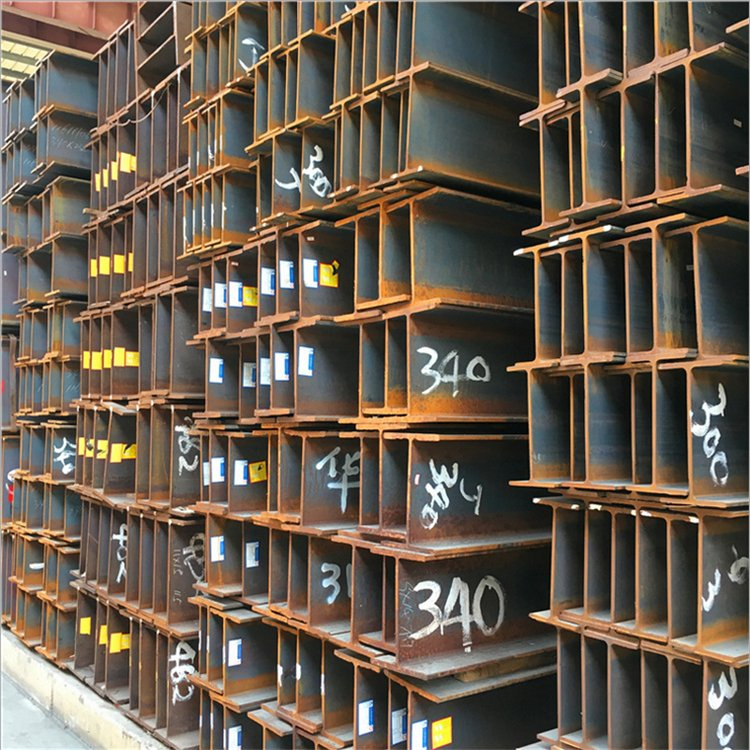

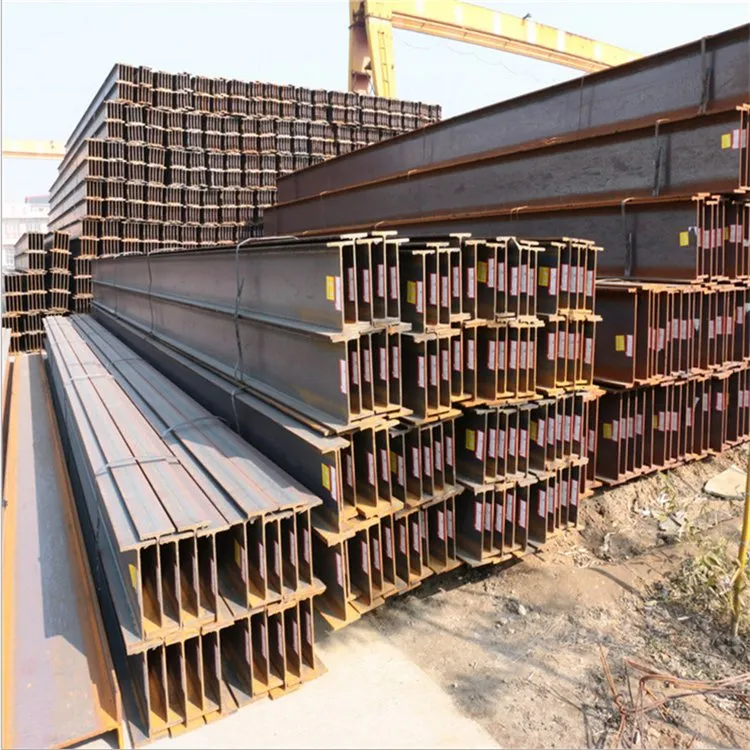

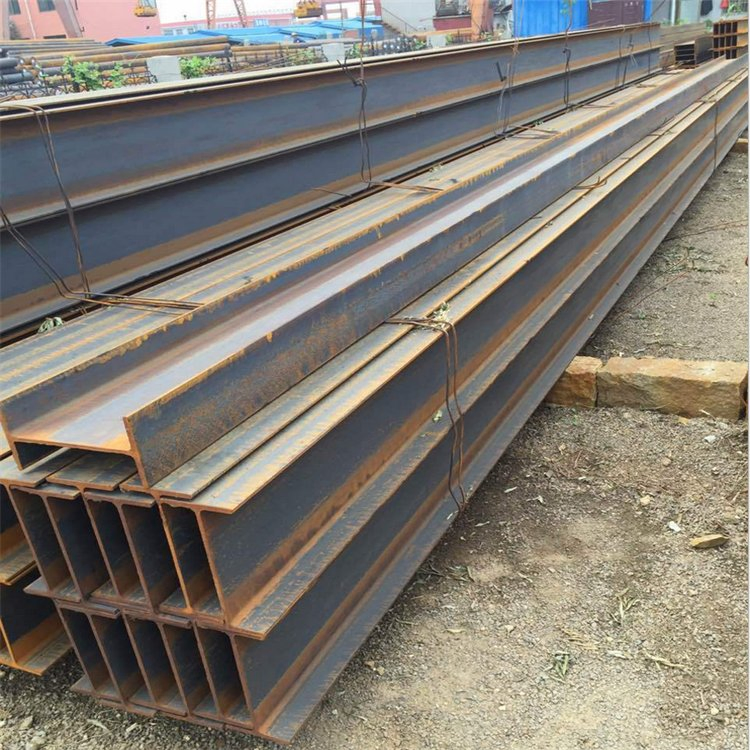

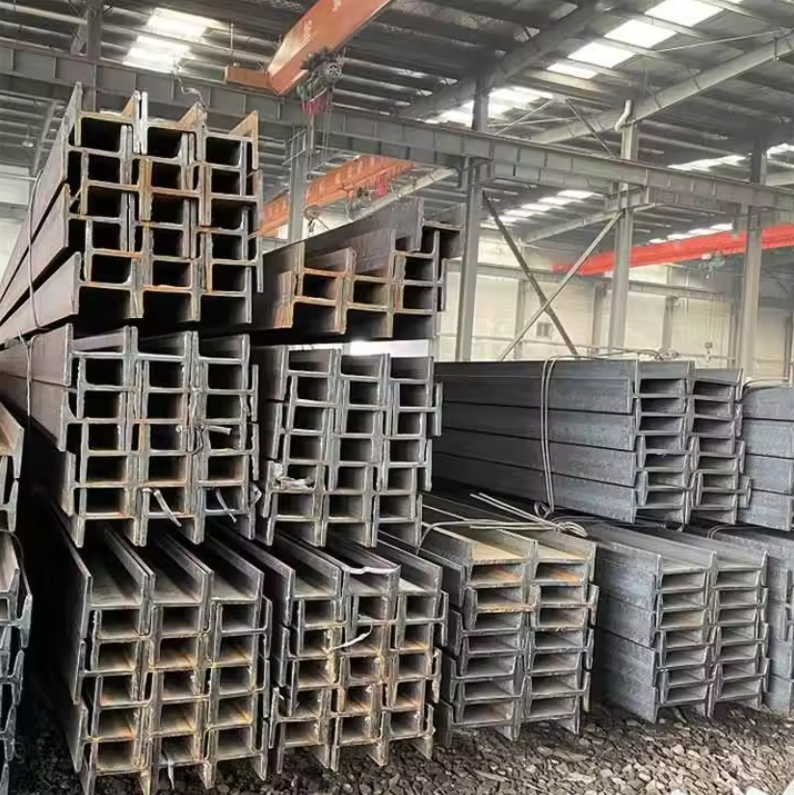

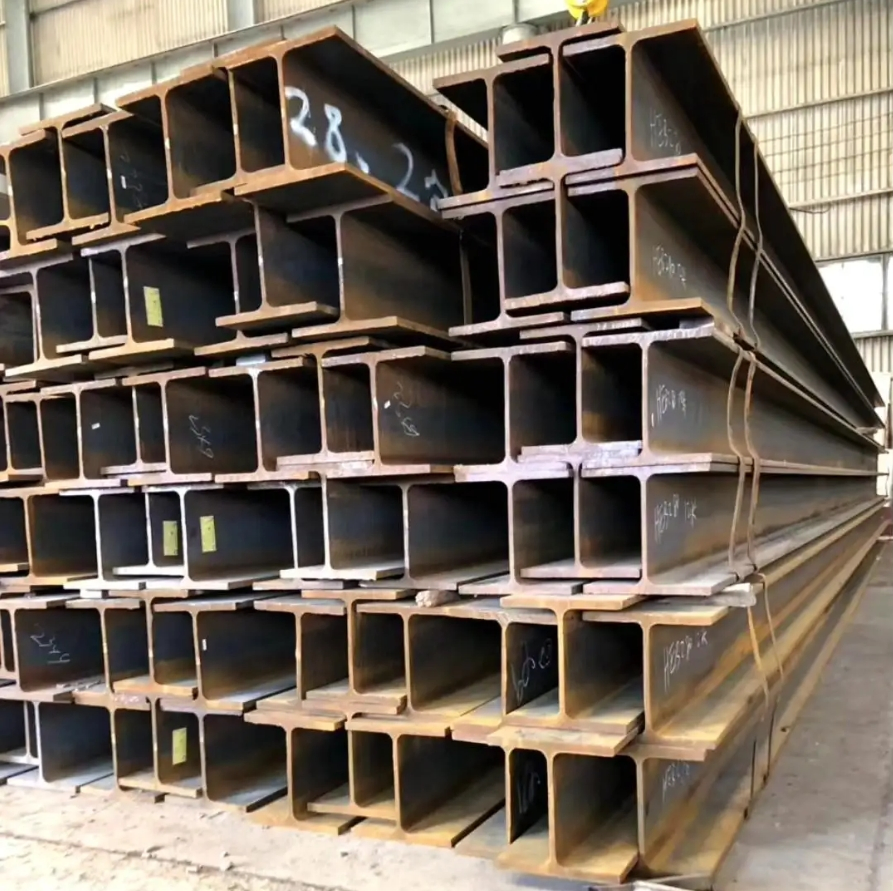

H-beam is a type of economical and high-efficiency section with optimized cross-sectional area distribution and a superior strength-to-weight ratio. Named after its "H" shape, its components are arranged at right angles, providing advantages such as strong bending resistance, simplified construction, cost efficiency, and light weight in all directions.
| Parameter | Details |
|---|---|
| Grade | Q235B, SM490, SS400, Q345B, G300, G350, S275JR, S355JR |
| Standard | GB, ASTM, JIS, SUS, DIN, EN etc |
| Technique | Hot rolled / Cold rolled |
| Size | Customized according to requirements |

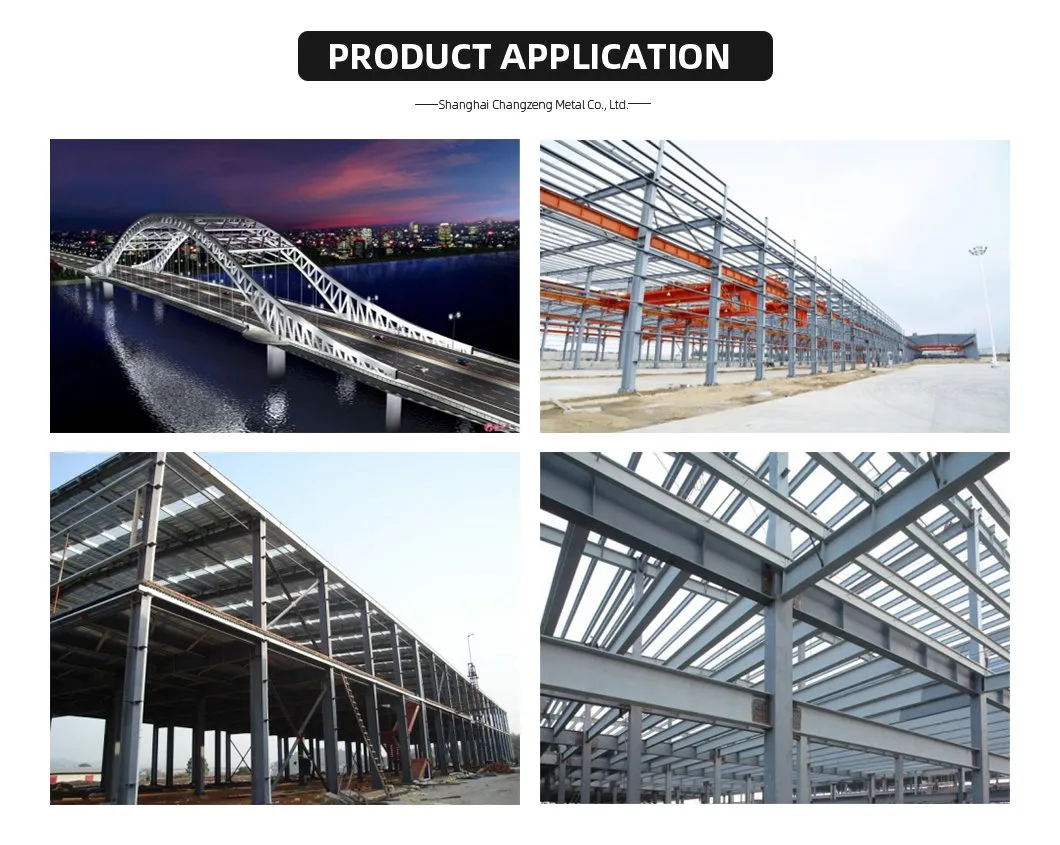

| Application | Civil and Industrial Building Structures |
| Delivery time | About 7- 15 days |
| Trade term | FOB, CFR, CIF |
| MOQ | 5 TONS |
| Size (MM) h*b*tw*t | Weight (KG/M) | Size (MM) h*b*tw*t | Weight (KG/M) |
|---|---|---|---|
| 100*50*5*7 | 9.54 | 300*150*6.5*9 | 37.3 |
| 100*100*6*8 | 17.2 | 294*302*12*12 | 85.0 |
| 125*60*6*8 | 13.3 | 300*300*10*15 | 94.5 |
| 125*125*6.5*9 | 23.8 | 300*305*15*15 | 106.0 |
| 150*150*7*10 | 31.9 | 344*354*16*16 | 131.0 |
| 200*200*8*12 | 50.5 | 350*350*12*19 | 137.0 |
| 200*204*12*12 | 72.28 | 400*400*13*21 | 172.0 |
| 250*250*9*14 | 72.4 | 400*408*21*21 | 197.0 |
H-beams are essential in modern construction, categorized by flange height and web ratio. Wide flange I-beams (H-beams) feature parallel legs and are rolled on universal mills for maximum structural integrity.
Our commitment to excellence drives us to provide a comprehensive range of steel products, including angles, channels, plates, and stainless steels. We serve over 30 countries globally across South America, Africa, and the Middle East, adhering to a philosophy centered on quality and competitive pricing.
