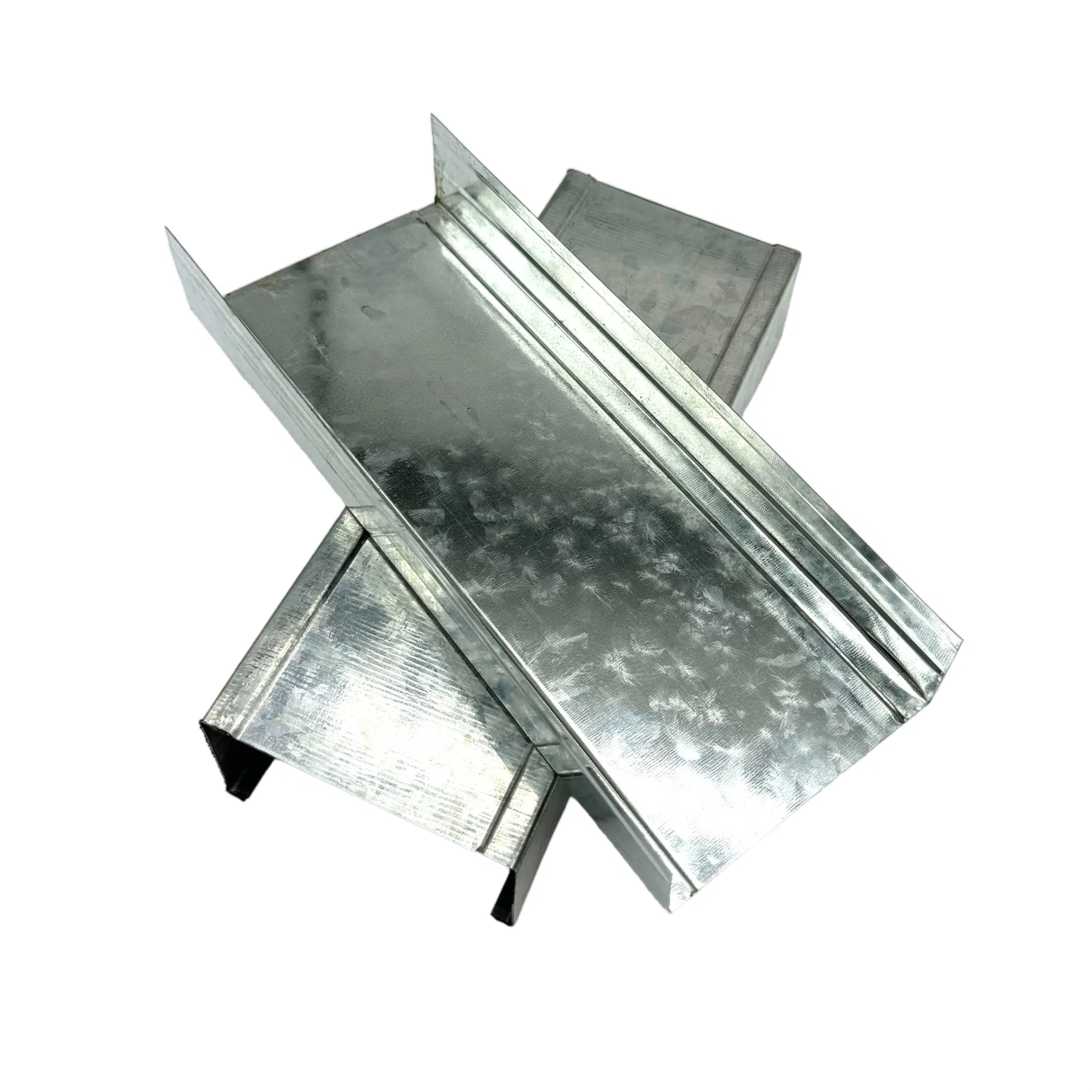

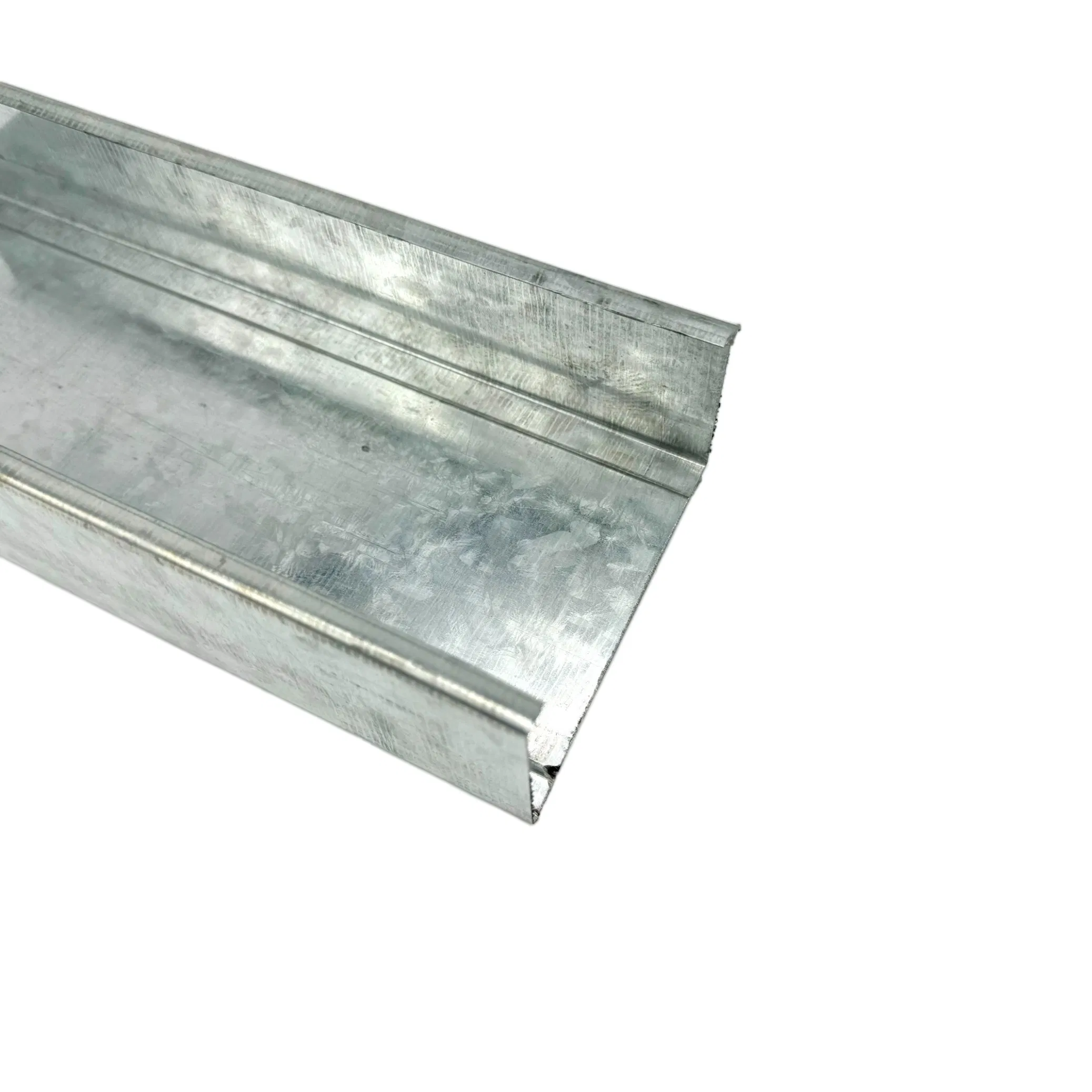

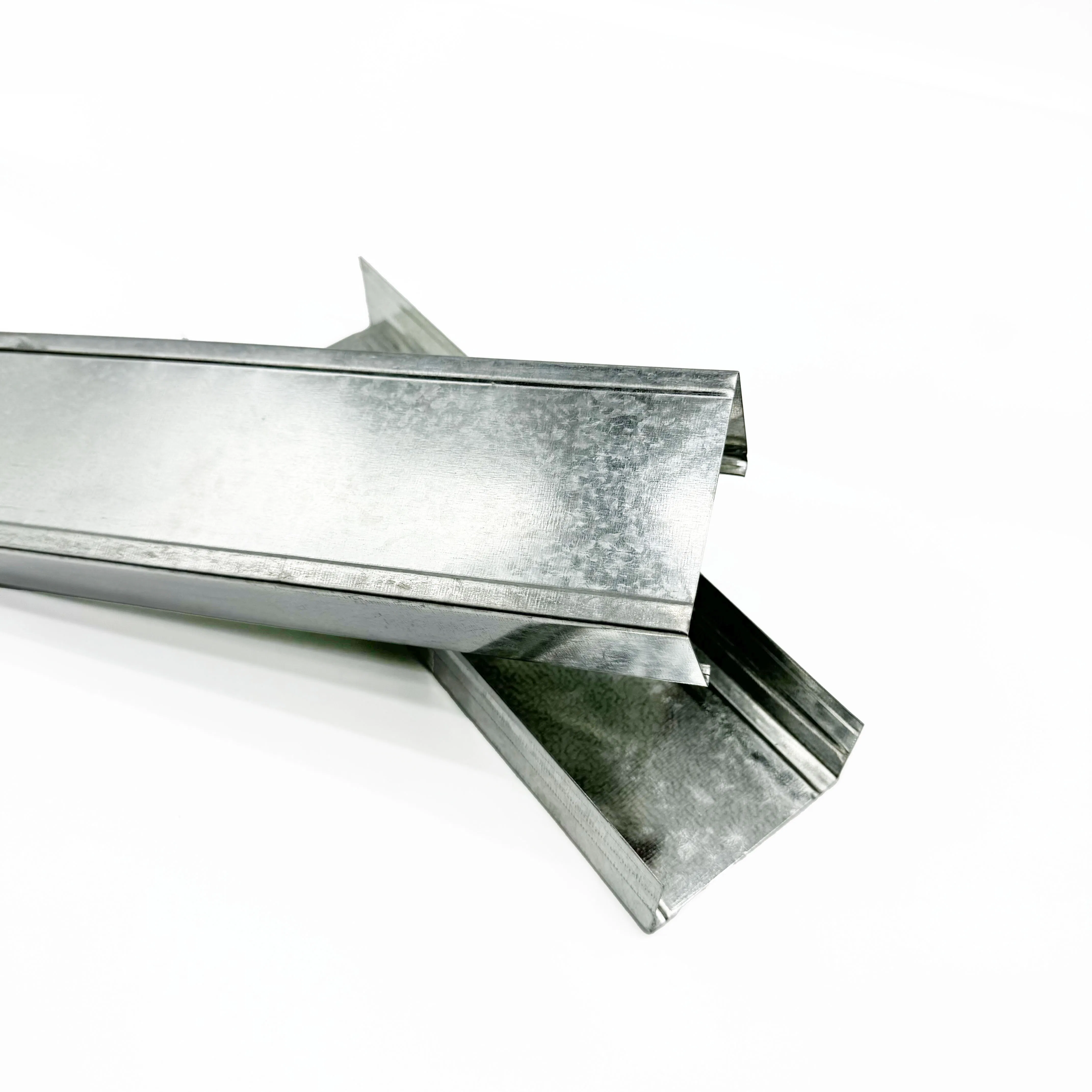

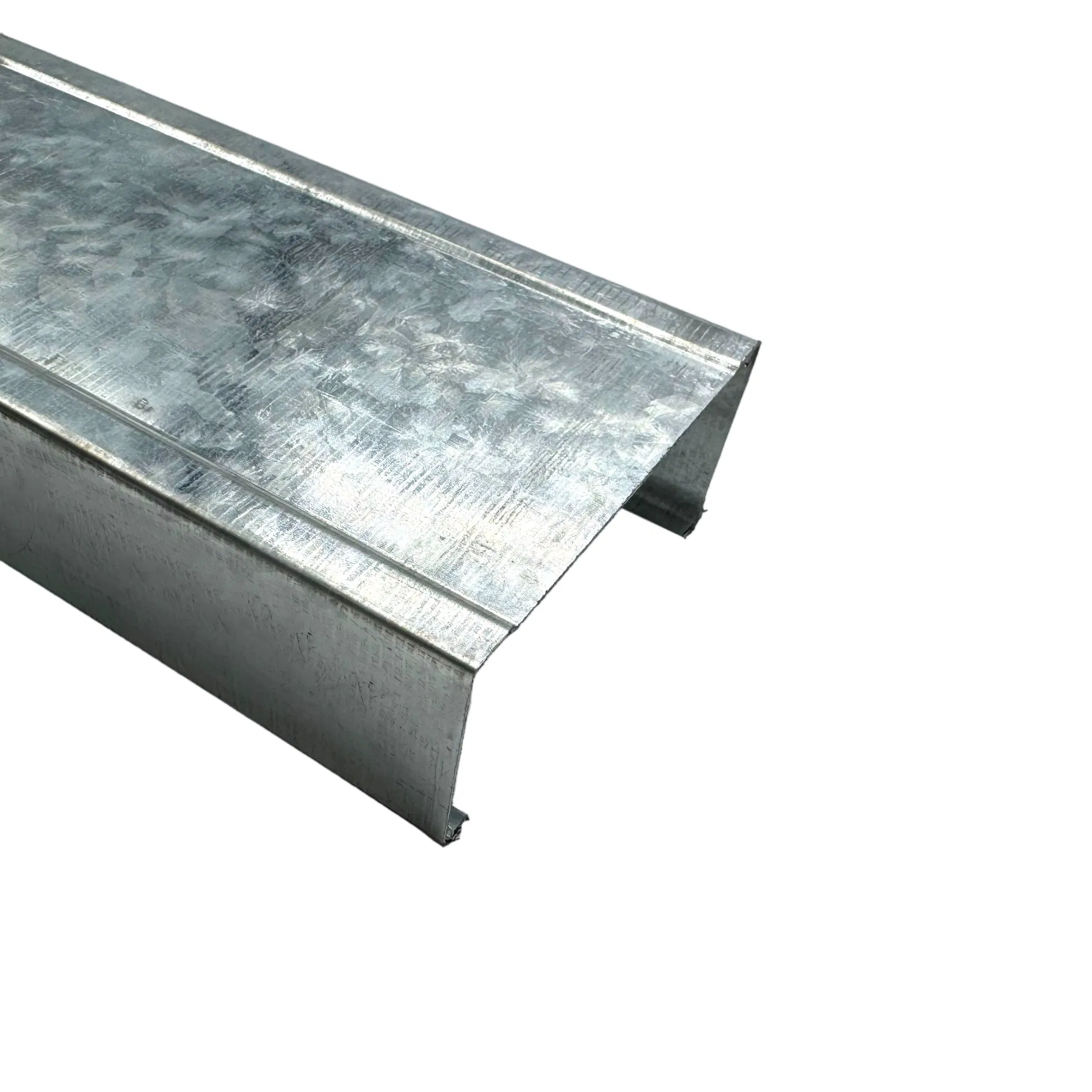

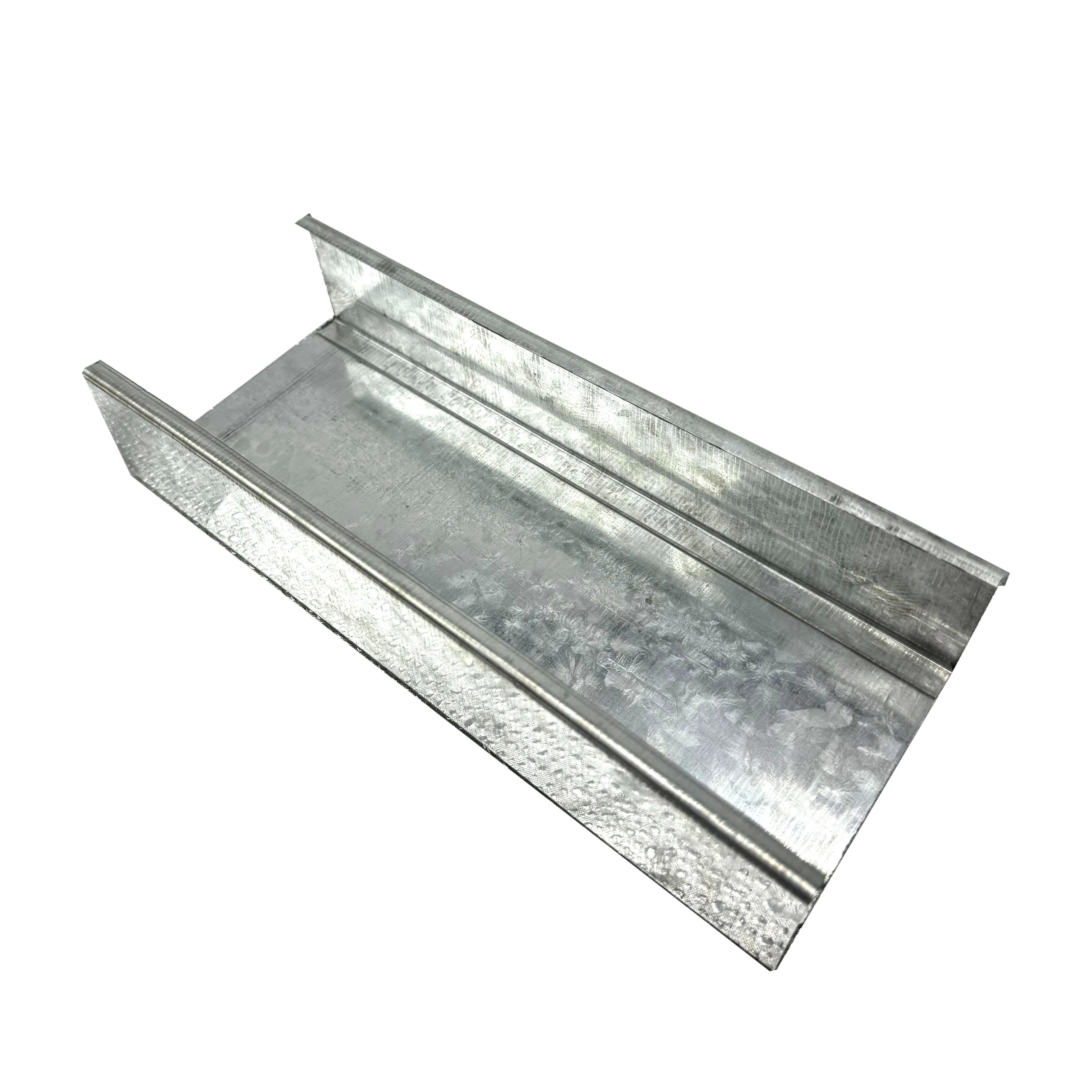

Light steel profiles for ceilings and walls

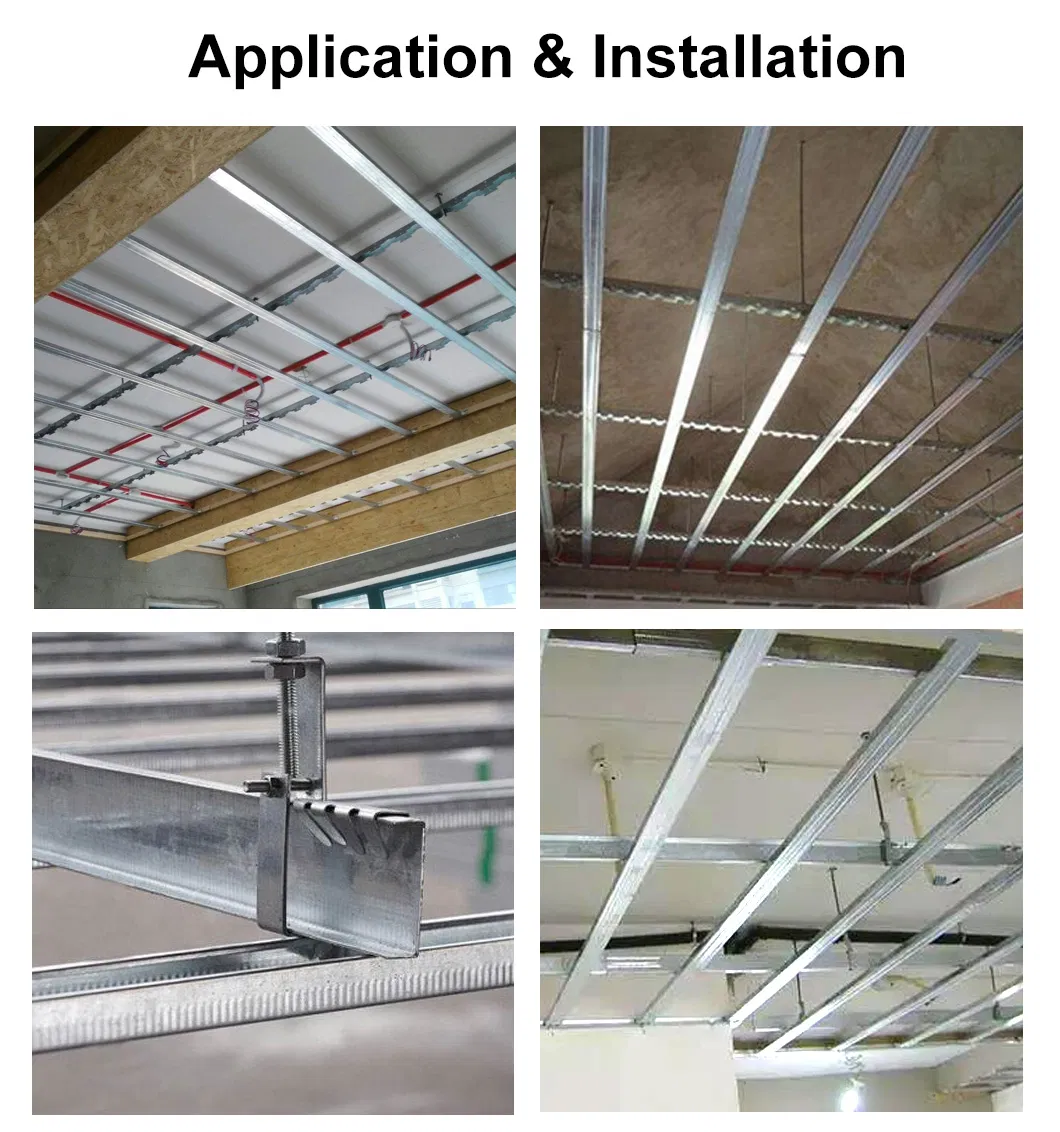

Made from high-quality galvanized steel and designed for suspended ceiling and drywall partition systems. With precise dimensions, strong load-bearing capacity, and corrosion resistance, these profiles provide stable and reliable support for commercial and residential construction projects. Available in ceiling and partition types, with standard specifications and custom options, our light steel framing is supplied factory direct for global importers, distributors, and project contractors.

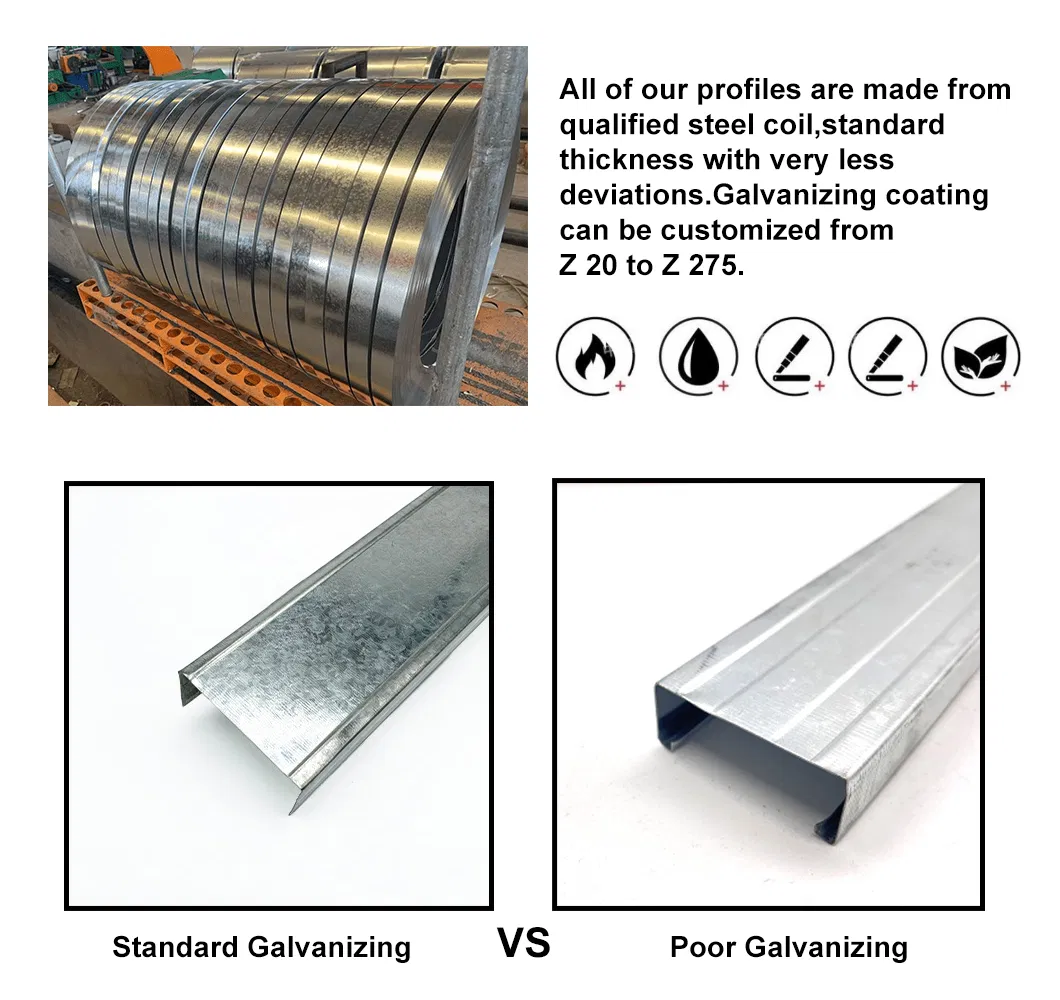

Material & Surface Treatment

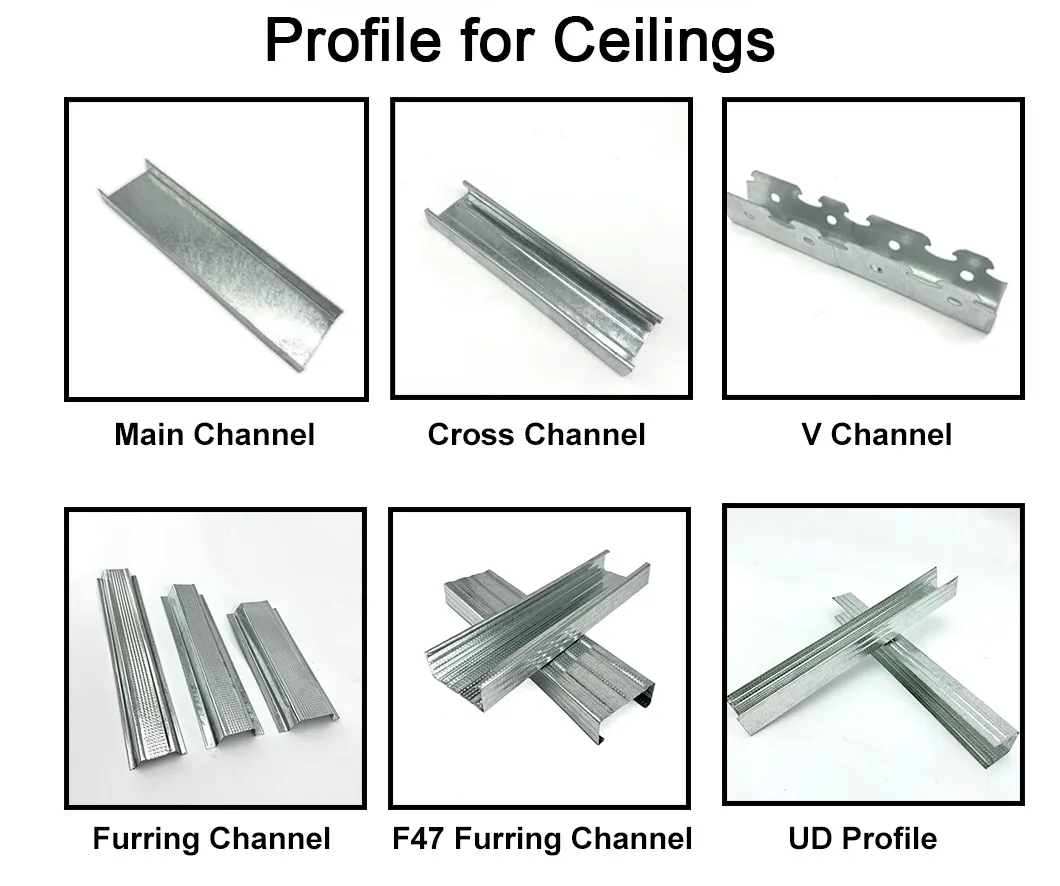

| Model | Length | Width | Height | Thickness | Galvanized |
|---|---|---|---|---|---|
| Main Channel | 2800mm / 3000mm / 4000mm | 38/50mm | 12/15mm | 0.4-1.2mm | Z20 / Z40 / Z120 Z180 / Z275 |
| Cross Channel | 50mm | 19mm | 0.4-0.6mm | ||
| V Channel | 28/38mm | 18/20mm | 0.6-1.2mm | ||
| Furring Channel | 68/88mm | 22mm | 0.4-0.6mm | ||
| F47 | 60mm | 27mm | 0.4-0.6mm | ||
| Profile UD | 28mm | 27mm | 0.4-0.6mm | ||
| All length, width, thickness and Zinc coating can be customized. | |||||

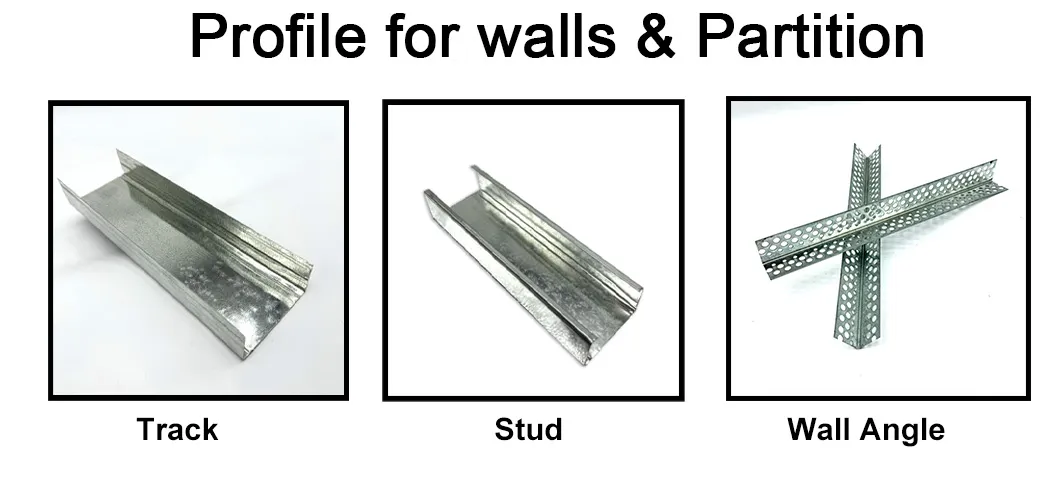

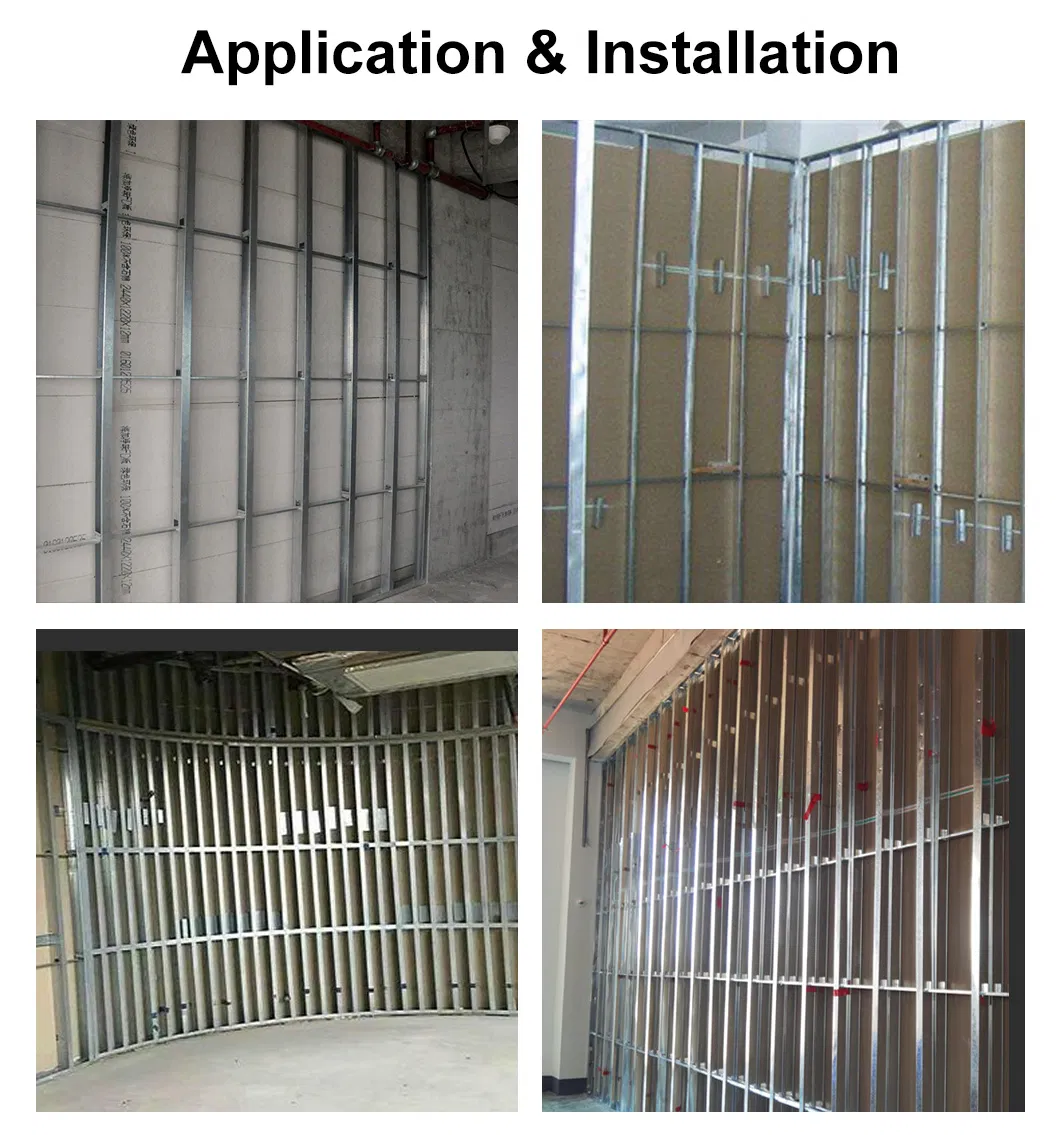

| Model | Length | Width | Height | Thickness | Galvanizing |
|---|---|---|---|---|---|
| Track | 2800mm / 3000mm / 4000mm | 50/75/100mm | 35/45/50mm | 0.4-0.6mm | Z20 / Z40 / Z120 Z180 / Z275 |
| Stud | 50/75/100mm | 40/45/50mm | |||
| Wall angle | 20/30mm | 20/30mm | |||
| Custom specifications available upon request. | |||||
