Main Characteristics
✔
Galvanized Zinc coating protects the channel from rust.
✔
High flexibility for easy installation and disconnection of ceiling tiles/plasterboard.
✔
Adjustable sizing to meet specific project requests.
✔
High-quality material ensures longer life span and higher strength.
✔
Excellent performance under high tensile and blending stress.
✔
Easy and fast installation, significantly saving time on-site.

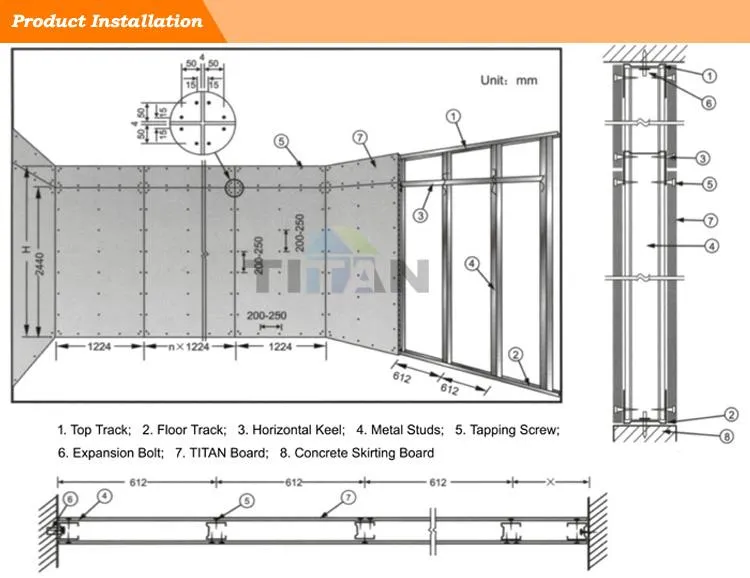

Partition Installing Method
1. Galvanized Metal Frame
The top and bottom keels are fixed to the floor and ceiling with expansion bolts.
Vertical keels should be aligned (generally every 612mm) with laterally supporting keels.
2. Board Material Fixing
Cut board material to size (approx. 10mm lower than wall height).
Fix board to keel using tapping screws (200-250mm intervals), sinking screws 0.5mm below the face.
Maintain a 4mm expansion seam between boards.
Glass cotton or rock cotton can be filled before final fixing if required.

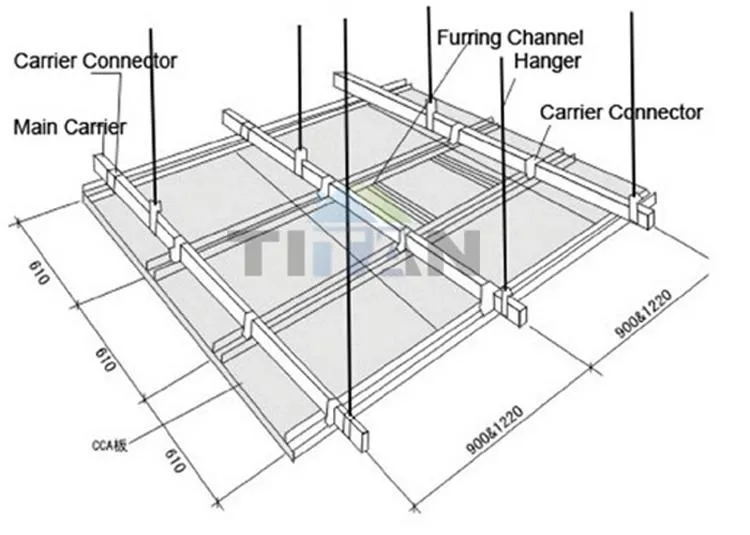

Ceiling Installing Method
Determine ceiling position; boom central range is generally 1200mm.
Connect boom and main keel with hanging pieces to ensure a level position.
Fix sub-keels vertically to the main keel (central range 612mm).
Install laterally supporting keels properly (range 1224mm).
Fix boards to sub-keels with tapping screws and treat seams.
Frequently Asked Questions (FAQ)
Q1: What functions do these metal studs serve in construction?
A1: Our metal studs are designed to be fireproof, waterproof, rustproof, and provide excellent heat insulation for modern building systems.
Q2: How does the galvanized coating benefit the product?
A2: The Zinc coating (available from 80g to 275g) provides a protective layer that prevents the steel from rusting, ensuring a long-lasting life span.
Q3: Are these products compatible with international standards?
A3: Yes, they comply with various standards including GB and ASTM (G60-G90), and carry certifications such as ISO, CE, and CNAS.

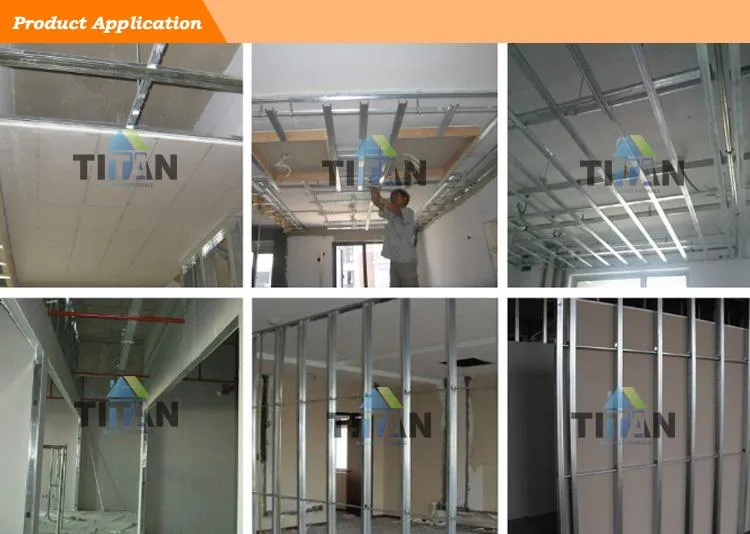

Q4: What are the typical applications for these steel frames?
A4: They are primarily used in partition wall systems and ceiling systems for residential and commercial buildings.
Q5: Can the ceiling system support the weight of a person?
A5: We offer both person-standing and non-person-standing types. The person-standing type is designed to handle a load of 80-100kg for repair work.
Q6: What is the monthly production capacity for these studs?
A6: Our production capacity is approximately 300,000 pieces per month, ensuring a steady supply for large-scale projects.
