OEM Golden Supplier Light Gauge Steel Joist Channel Dry Wall Metal Studs for Gypsum Board

Customization:	Available
After-sales Service:	Yes
Warranty:	Yes

Send Inquiry

Product Description

📋

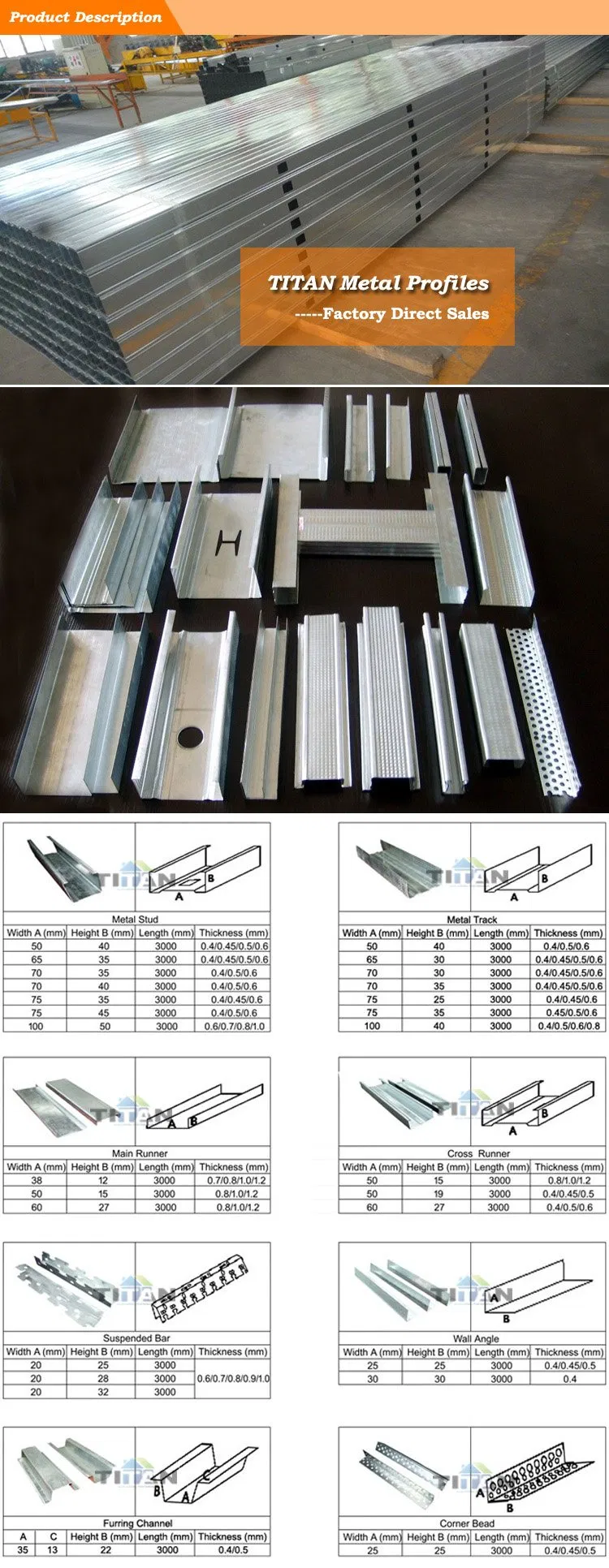

Basic Specifications

Model NO.:Metal Stud

Type:C Channel, U Channel, Wall Angle, Furring

Standard:GB

Shape:C Channel

Material:Galvanized Sheet, Galvanized Steel

Zinc Coated:GB: 80g--275g; ASTM: G60-G90

Length:3000mm

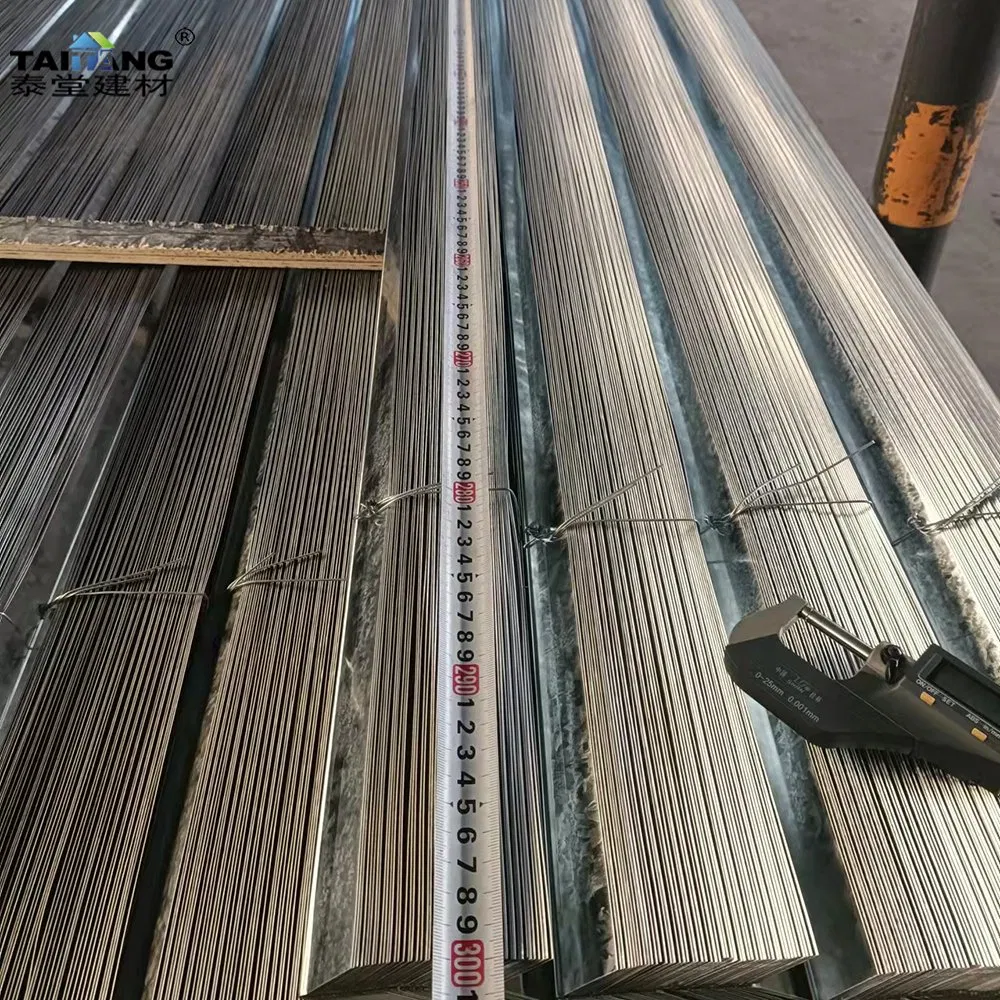

Thickness:0.45~1.0mm

Function:Fireproof, Waterproof, Rustproof, Heat Insulation

Application:Partition and Ceiling System

Height:25/30/32/35/40mm

Width:50/65/70/90/100mm

Certificate:ISO, CE, UCS, IAF, CNAS

HS Code:7216910000

🏗️

Product Overview

Main Characteristics

✔ Rust Protection: High-quality Galvanized Zinc coating protects the channel from corrosion.

✔ Easy Installation: Flexibility of application makes each ceiling tile or plasterboard easy to install and disconnect.

✔ Customizable: Size adjustability allows for easier matching of specific project requests.

✔ High Strength: Superior quality leads to a longer life span and higher load-bearing strength.

✔ Stress Management: Enhanced function for dealing with high tensile and blending stress.

🛠️

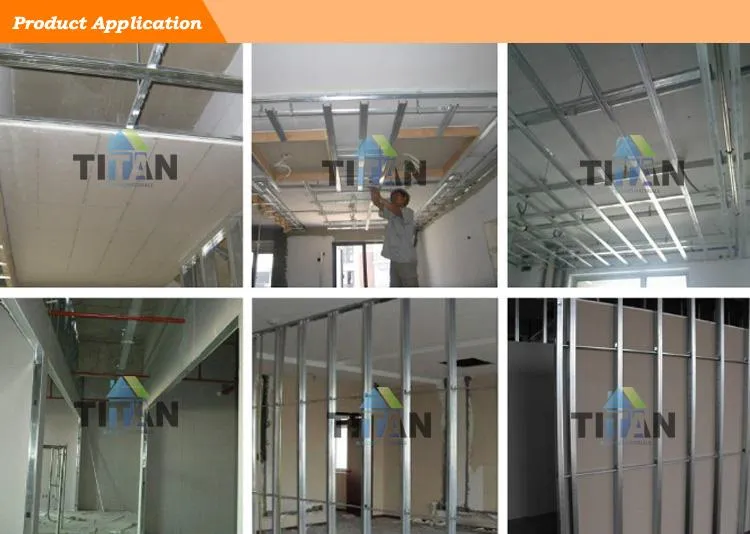

Installation Methods

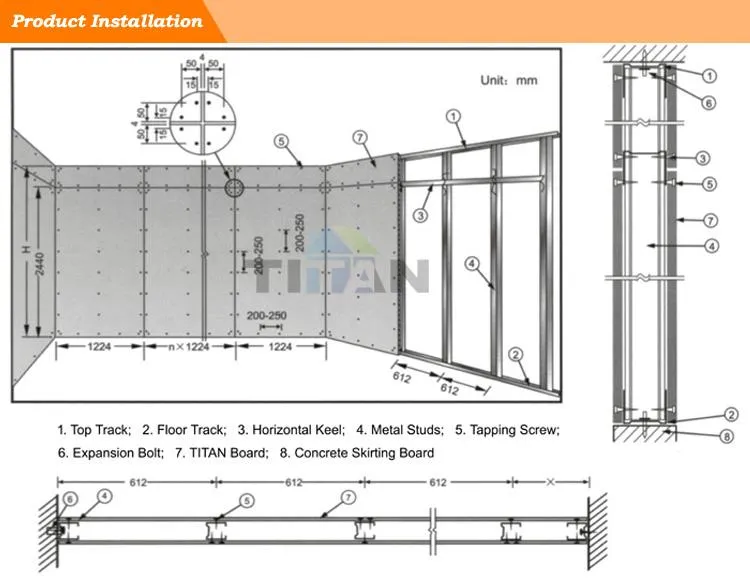

1. Partition Installation Method

Galvanized Metal Frame: Top and bottom keels are fixed to the floor and ceiling with expansion bolts. Vertical keels should be aligned well (generally 612 mm spacing).

Board Material Fixing: Cut boards to size (10mm lower than wall height). Fix with tapping screws at 200~250mm intervals, keeping a 4mm expansion seam between boards.

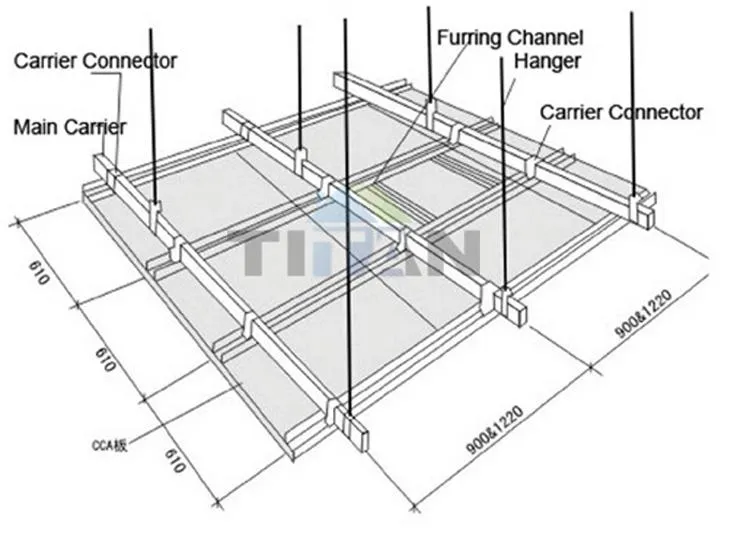

2. Ceiling Installation Method

Determine fixed position; boom central range is generally 1200mm.
Connect boom and main keel with hanging pieces to ensure a level position.
Fix sub-keels vertically to the main keel (central range 612mm).
Install supporting keels properly (range 1224mm) and fix boards with tapping screws.

📊

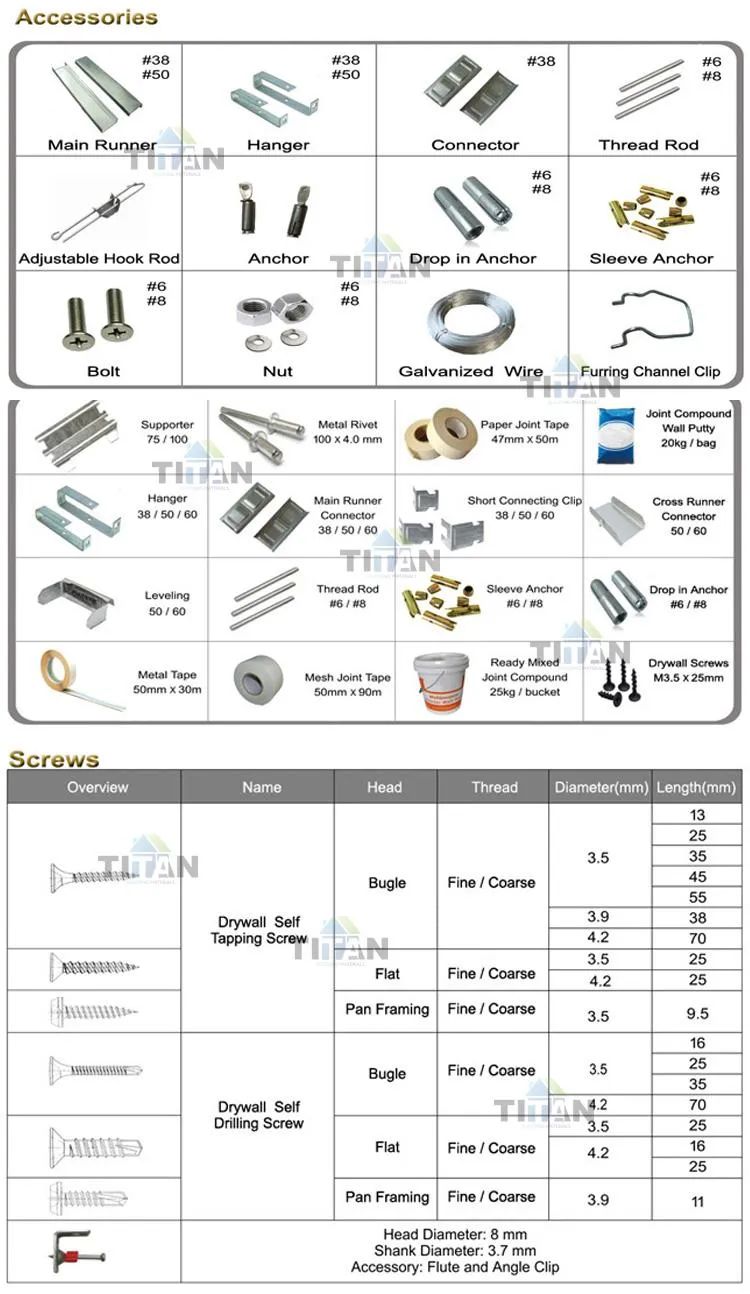

System Material Proportion

Ceiling System (Per m²)
Gypsum Board (1200×2400×9mm)	1 m²
Main Runner / Cross Runner	1 m / 3~3.6 m
Hanger / Connectors	2~3 pcs / 1.5 pcs
Drywall Self Tapping Screw	25~30 pcs

Partition System (Per 2 m²)
Gypsum Board (1200×2400×12mm)	2 m²
Metal Stud / Metal Track	2.2~3.6 m / 0.7~1.4 m
Intermediate Channel	0.8~1.4 m
Drywall Self Tapping Screw	25~30 pcs

❓

Frequently Asked Questions

Q1: What materials are used for these metal studs? A: Our metal studs are manufactured from high-quality galvanized steel and galvanized sheets, ensuring durability and structural integrity.

Q2: Are these metal profiles rust-resistant? A: Yes, they feature a Zinc coating ranging from 80g to 275g (meeting GB and ASTM standards) to provide excellent protection against rust and corrosion.

Q3: What are the primary applications for this product? A: They are specifically designed for interior partition wall systems and suspended ceiling systems in residential and commercial buildings.

Q4: Can the length of the metal channels be customized? A: While our standard length is 3000mm, the system offers size adjustability to match various construction requirements.

Q5: What safety functions do these studs provide? A: The system provides fireproof, waterproof, and heat insulation properties, making it a safe choice for modern building interiors.

Q6: What certifications do your metal products carry? A: Our products are certified by ISO, CE, UCS, IAF, and CNAS, ensuring they meet international quality standards.
