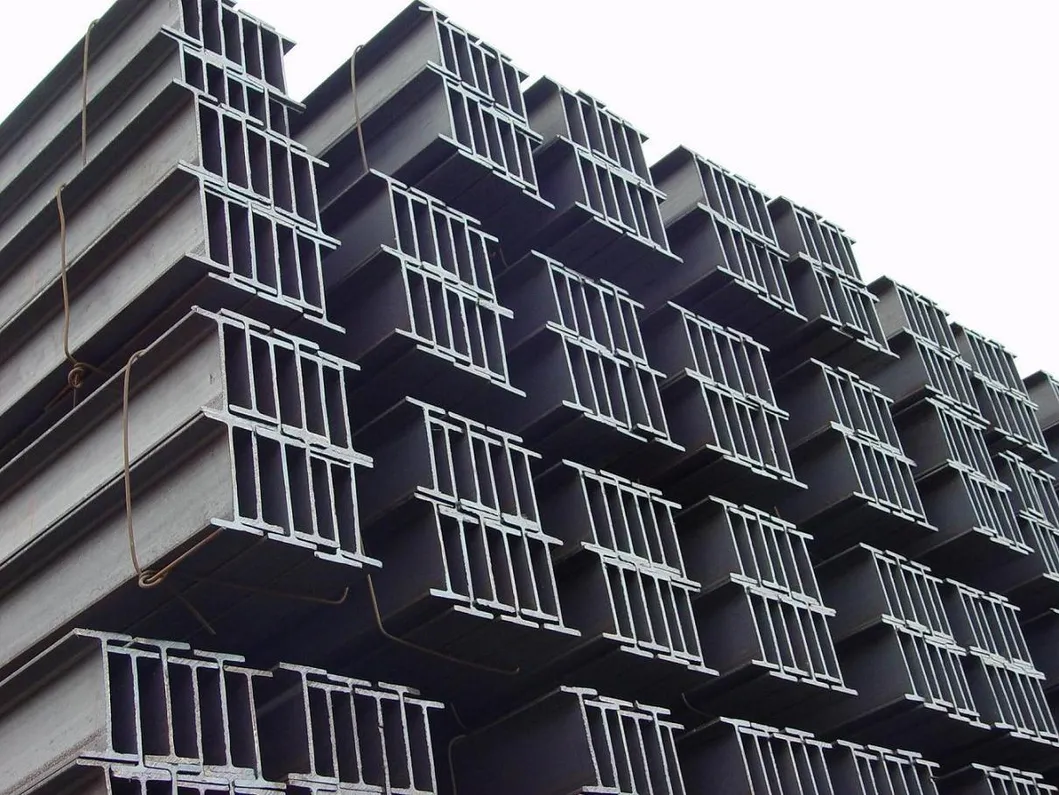

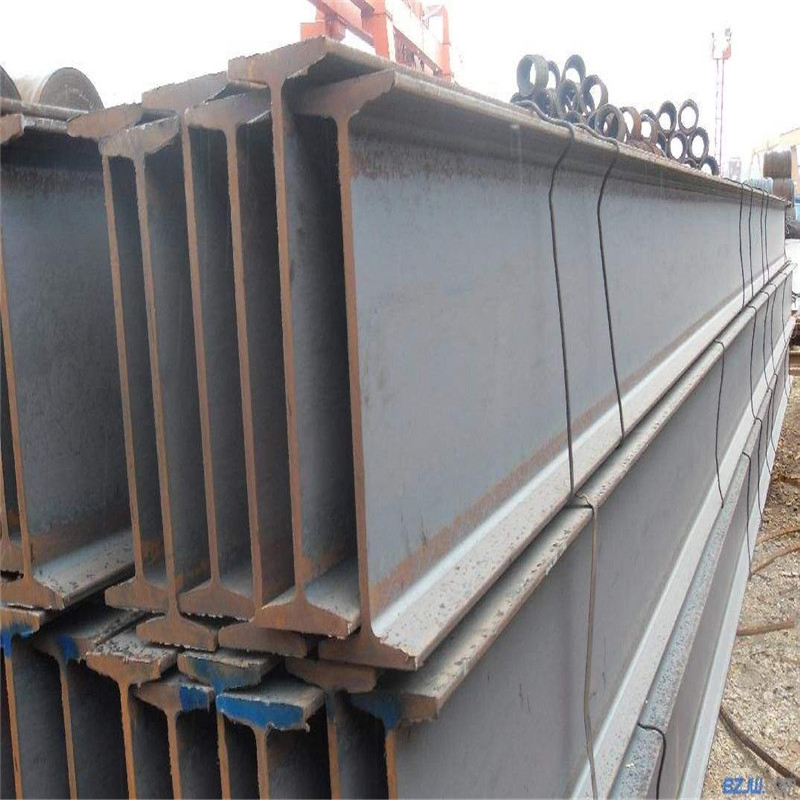

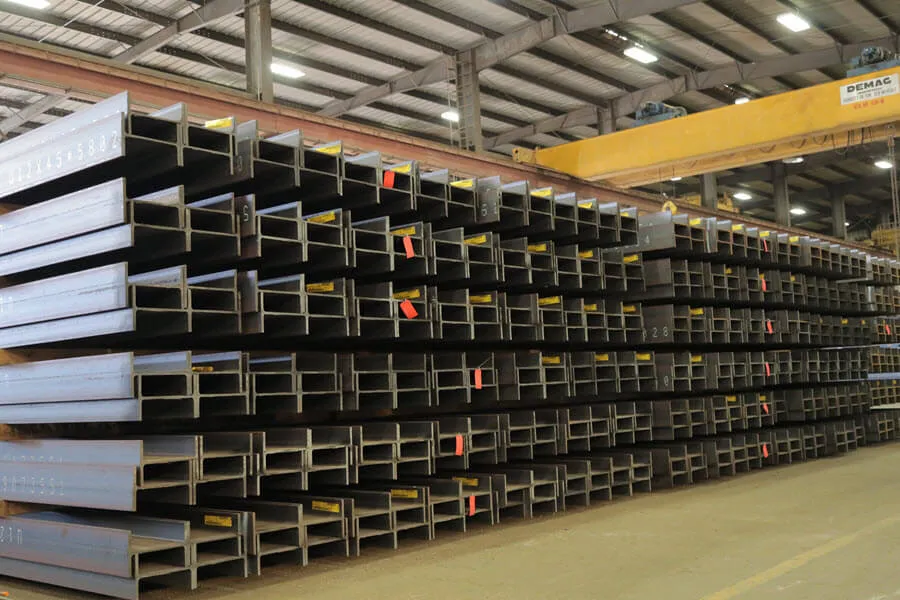

| Product Name | Q345B Structural carbon Steel H Beams in warehouse |
|---|---|
| Material | Q235~Q345/SS440~SS540/S235JR/JIS G3192/BS EN 10034/ASTM A6, A36/ST52 |
| Height | 100-900mm |
| Width | 100-408mm |
| Thickness | t1: 6-21mm, t2: 8-35mm |
| Length | 6~12m |
| Technique | Hot rolled |
| Application | Steel structure/building material/construction/Bridges/vehicles/brackets/machinery, etc. |
Our factory has strong strength, advanced technology and equipment, experienced engineers, and can accept customized services. If any question, feel free to contact us.
H beams are widely used in many constructions, such as building, highway, bridge, railway, tunnel, petroleum chemical industry and electric power industry equipment structure. H beam is environmentally friendly and reduce the nuisance dusts. H beam also can save the working time, because it is easy to carry and can be used in any weather.
| Height × Breadth (mm) | Web thickness (mm) | Flange thickness (mm) | Weight (kg/m) |
|---|---|---|---|
| 100×100 | 6 | 8 | 16.9 |
| 125×125 | 6.5 | 9 | 23.6 |
| 150×150 | 7 | 10 | 31.1 |
| 200×200 | 8 | 12 | 49.9 |
| 300×300 | 10 | 15 | 93.0 |
| 400×400 | 13 | 21 | 171.7 |
| 200×100 | 5.5 | 8 | 20.9 |
| 400×200 | 8 | 13 | 65.4 |
| 600×200 | 11 | 17 | 103.4 |
| 900×300 | 16 | 28 | 240.1 |
