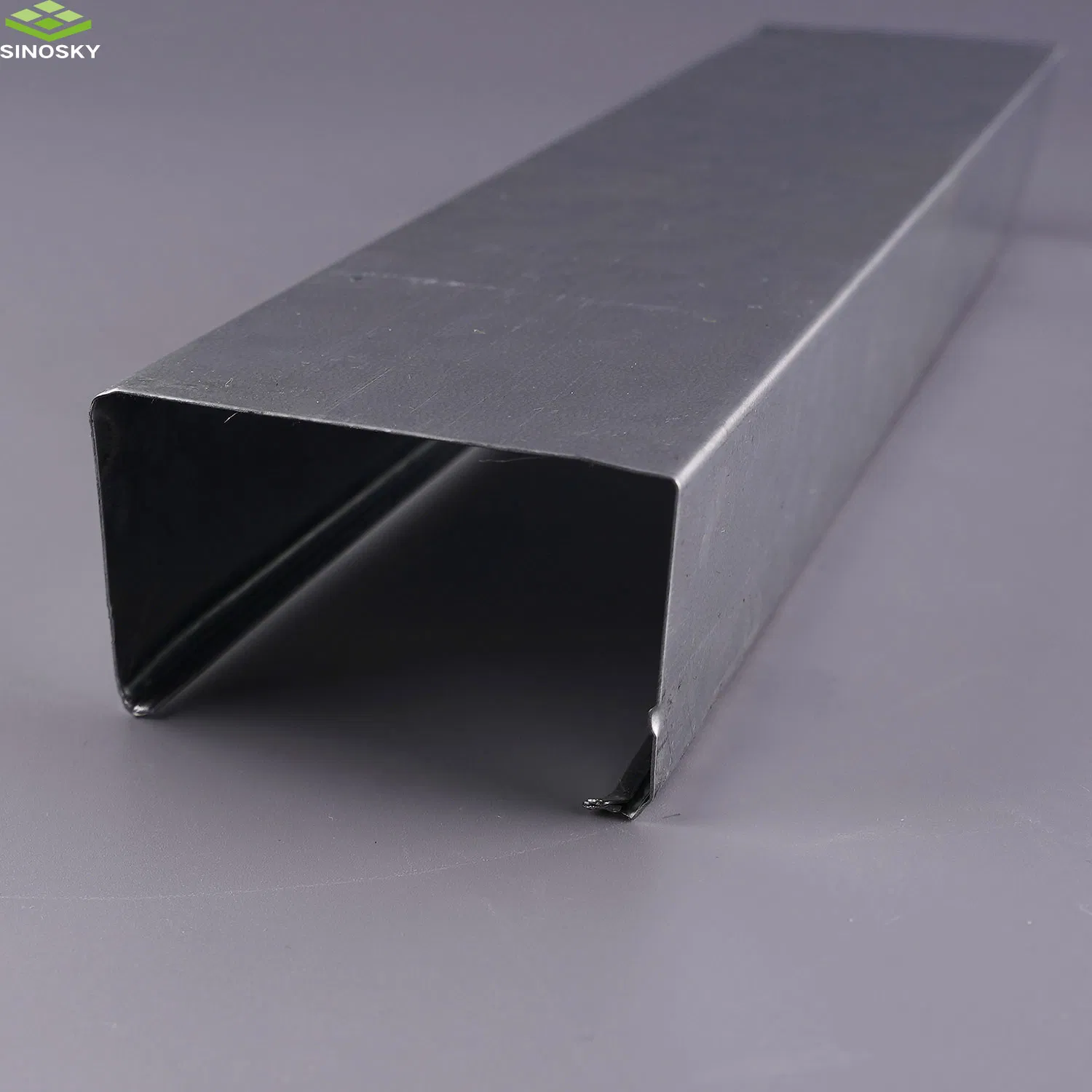

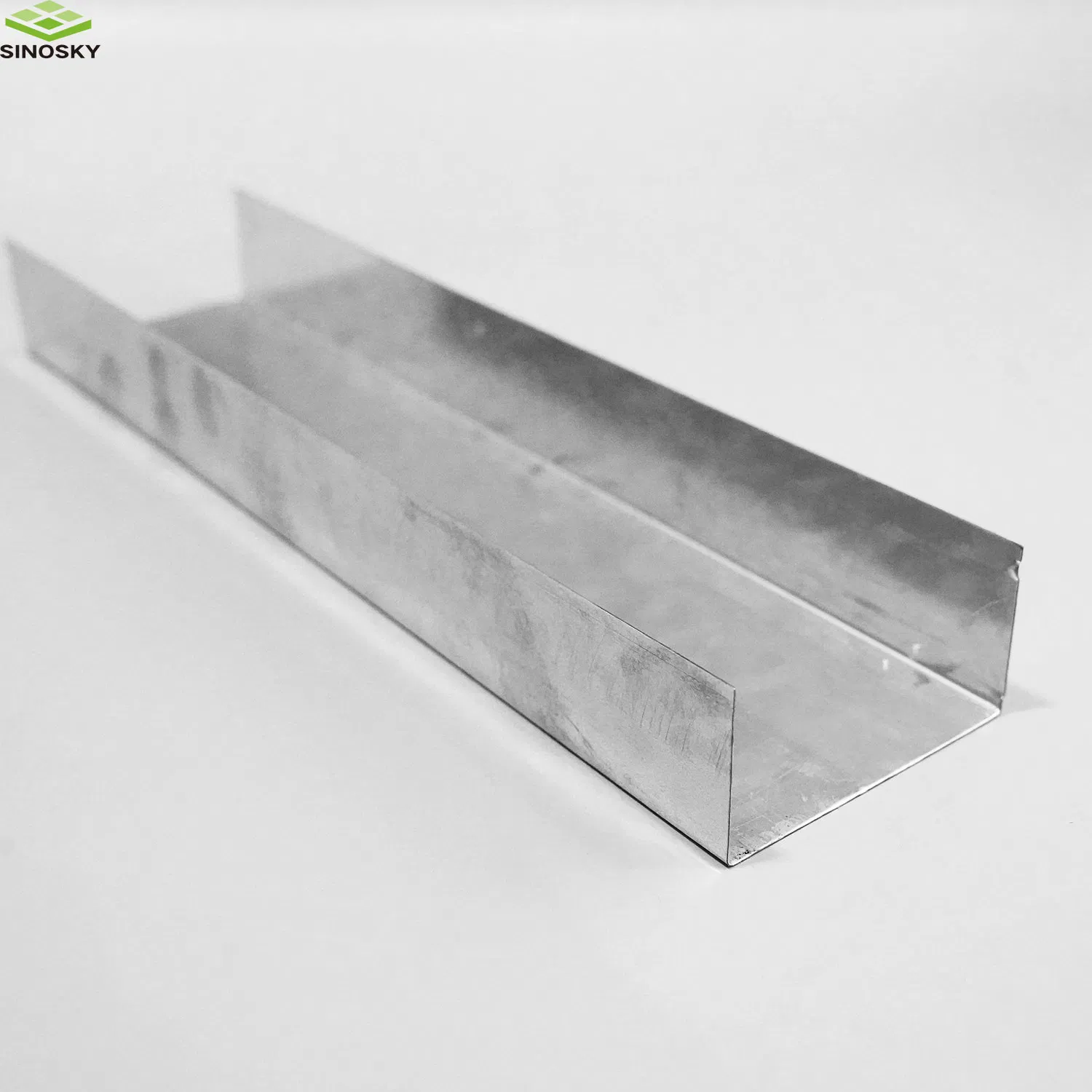

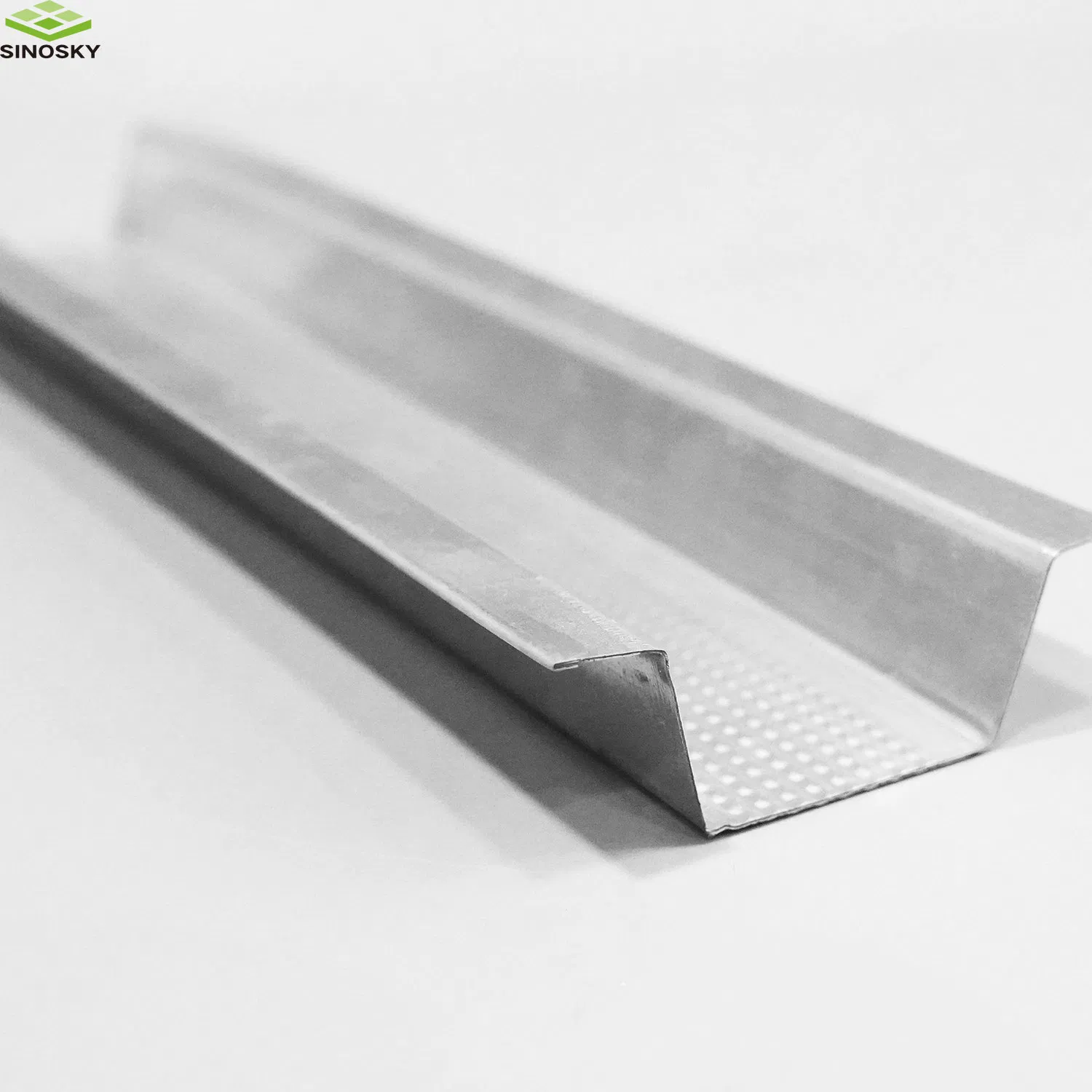

Metal Construction Building Material Ceiling Suspened Light Steel Keel Hat Channel

1 / 5

Metal Construction Building Material Ceiling Suspened Light Steel Keel Hat Channel

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

ℹ️

Basic Specifications

Model NO.

Customized

Certification

ACS, ISO9001, RoHS, CE

Shape

U-type

Material

Steel

Usage

Terminal Building, Hotel, Office, Home

Function

Sound/Fire/Damp Proof, Anti-Corrosion

Production Capacity

30000m²/Day

Origin

China

⭐

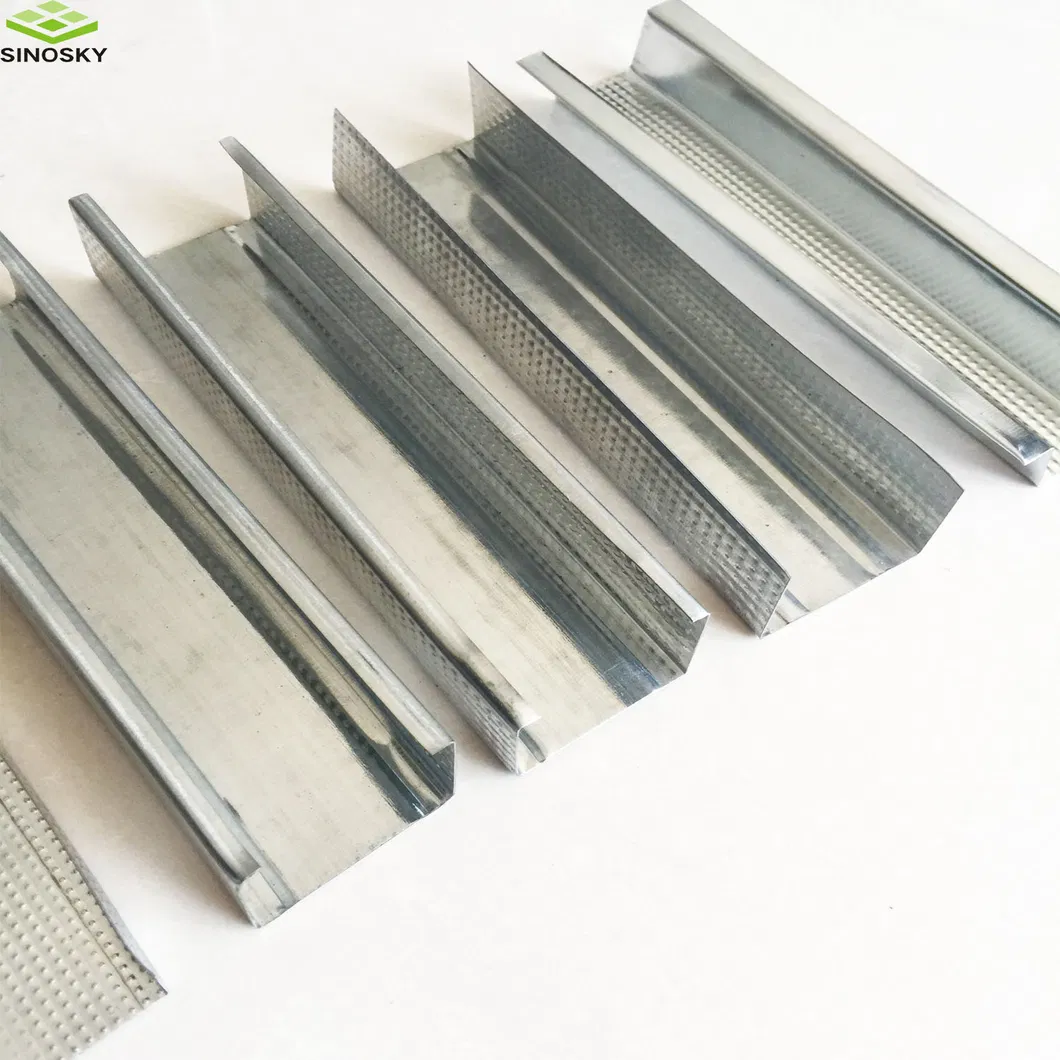

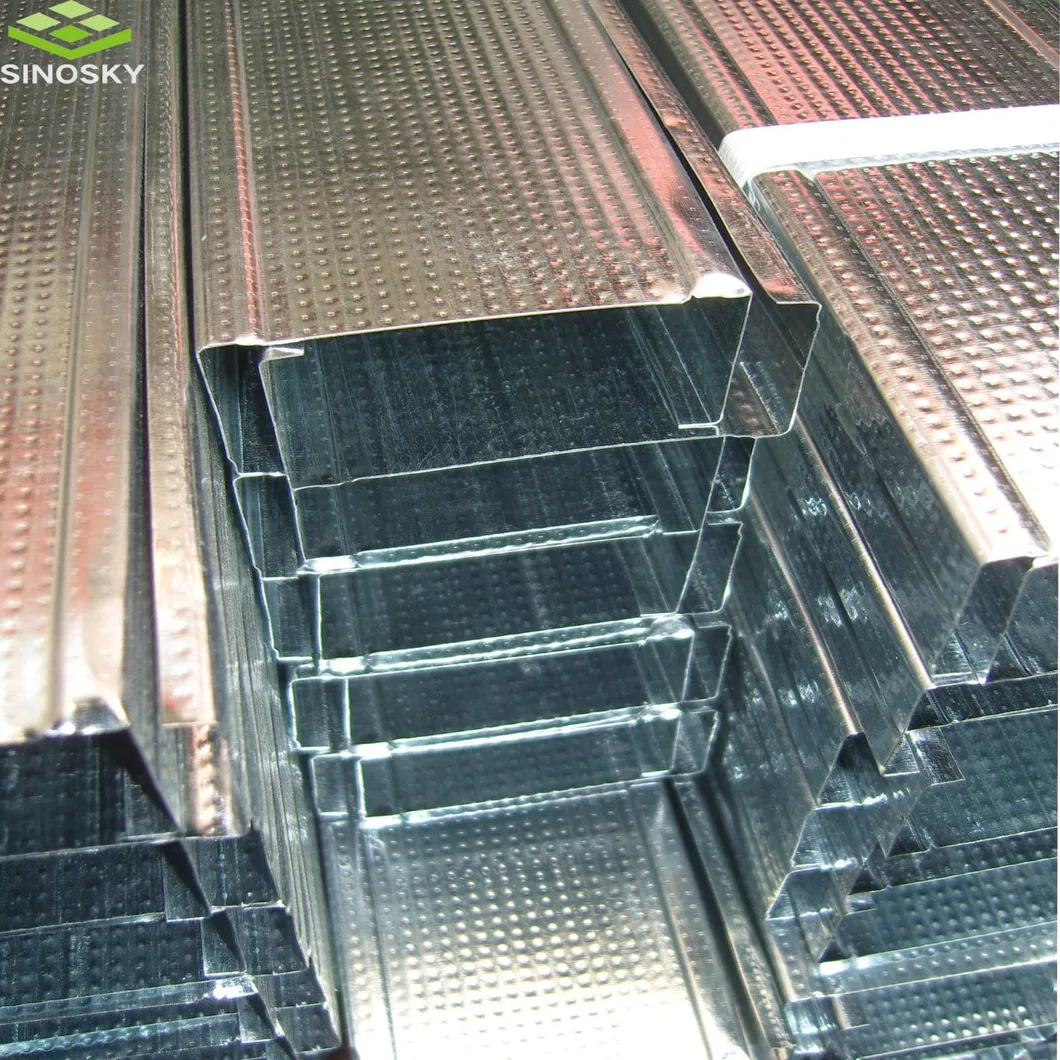

Galvanized Steel Profile Features

✔ High-quality galvanized steel from advanced production lines, offering high strength and flexibility.
✔ Continuous hot-dip galvanizing process ensures deep zinc thickness and superior corrosion resistance.
✔ Precision surface design allows for easy and secure screw fixing.

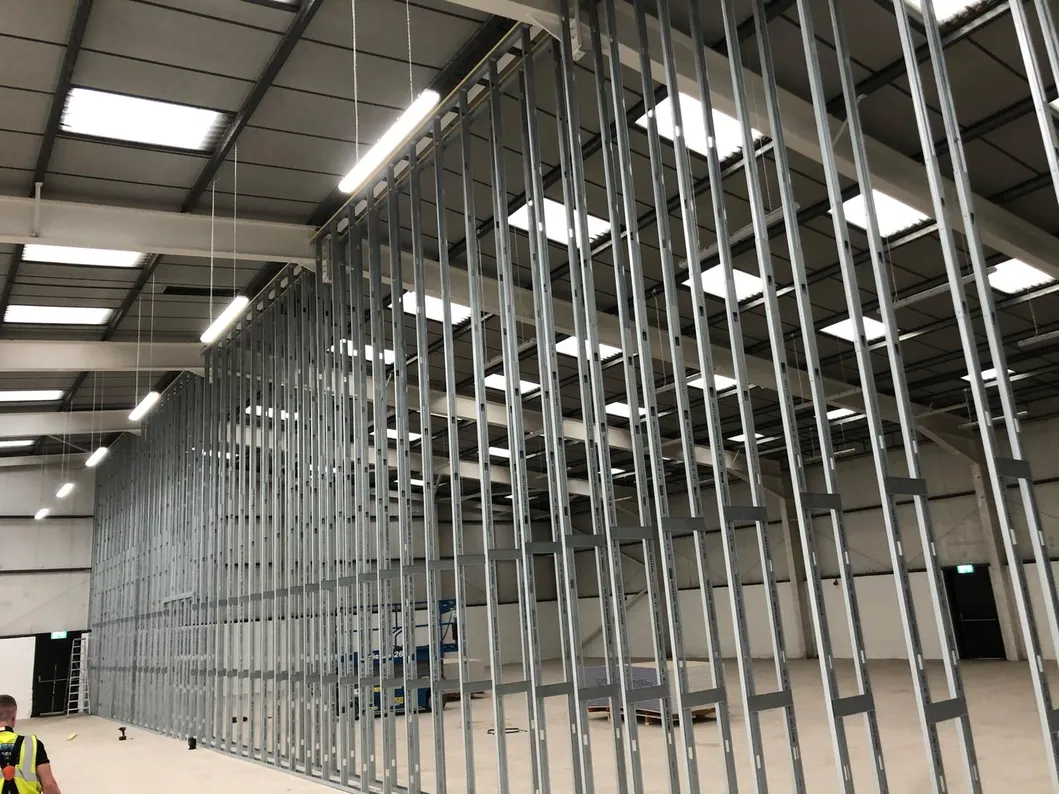

✔ Robust framework ideal for gypsum and drywall systems.

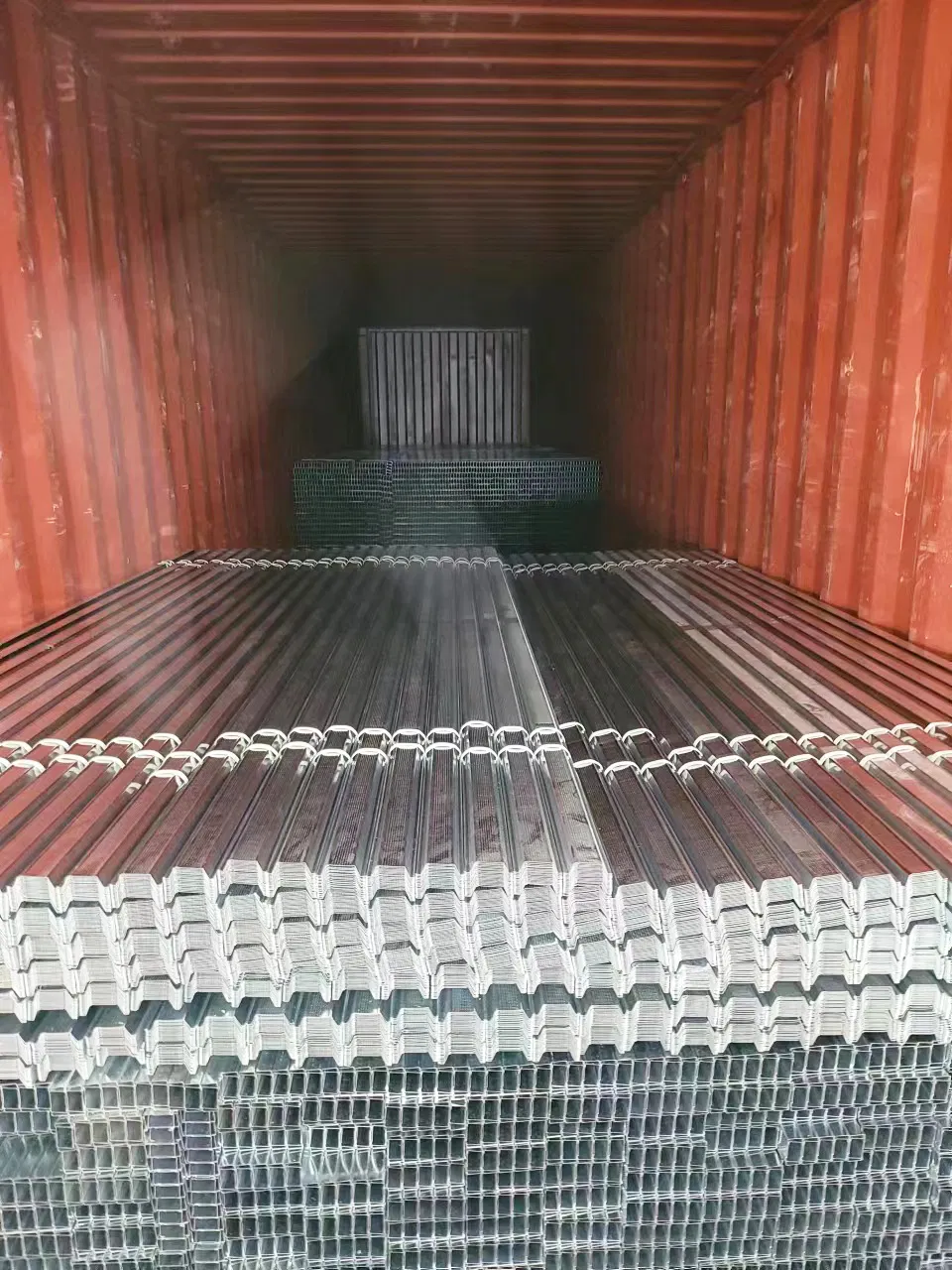

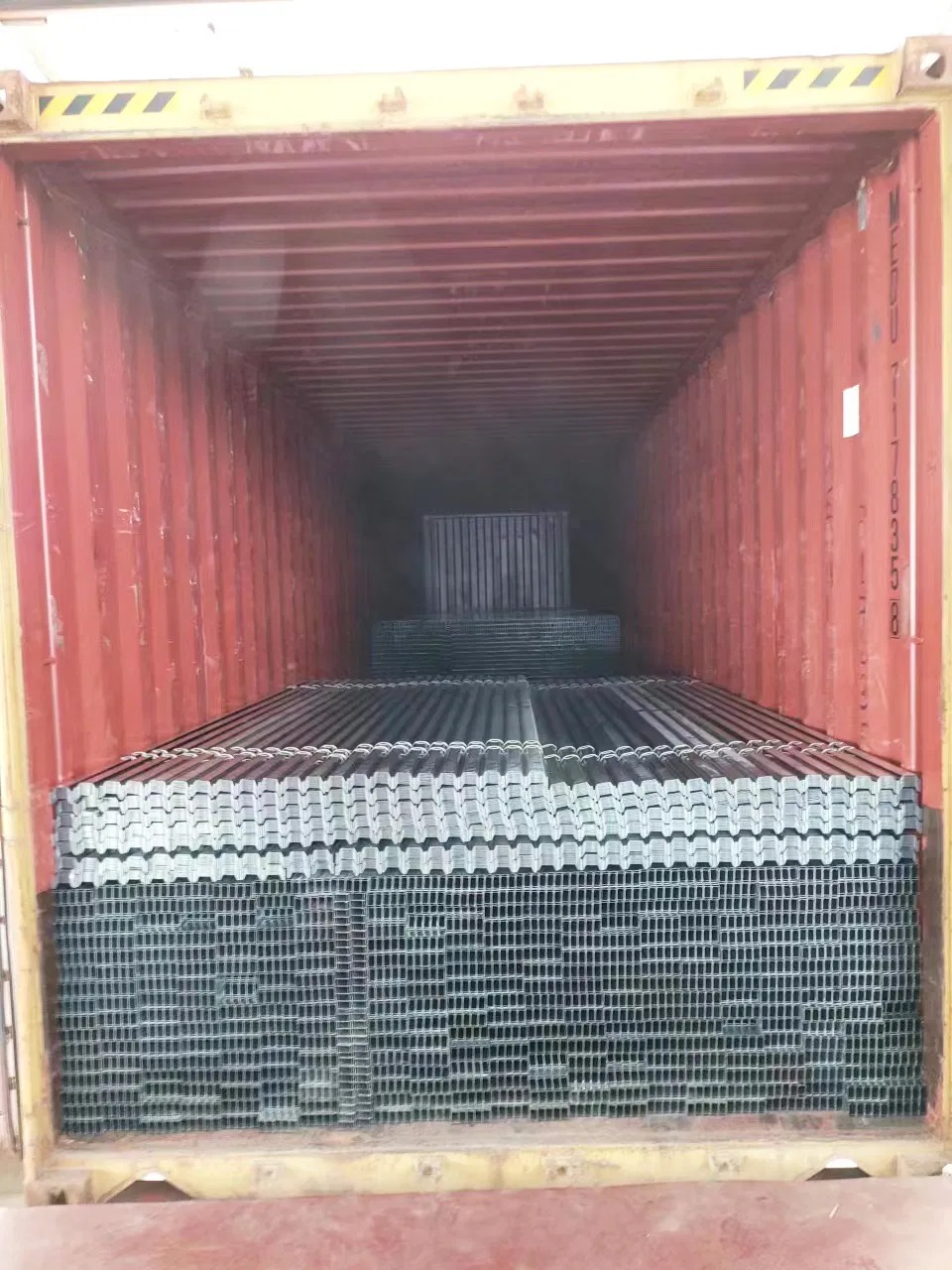

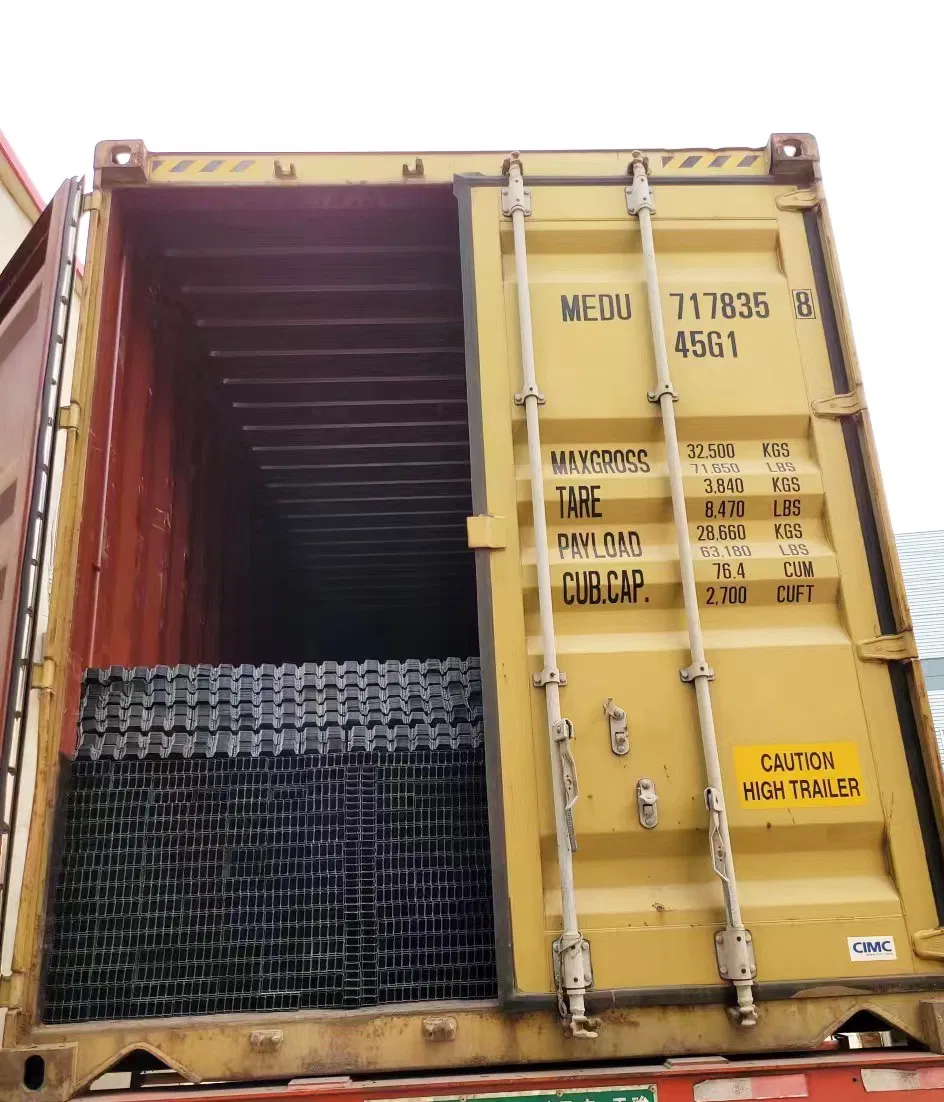

✔ Rapid shipping: Typical lead time of 7-20 working days with common specifications in stock.

📊

Technical Data & Inspection

Inspection Item	Standard	Value
Appearance	No corrosion/damage/black speckle	Pass
Surface Galvanization	≥100g/m²	115g/m²
Load Channel Dim A	±0.4mm	-0.3 to -0.2mm
Load Channel Dim B	±1.0mm	-0.5 to -0.5mm
Cover Channel Dim A	±1.0mm	-0.4 to -0.1mm
Side Flatness	≤1.5mm/1000mm	0.6mm/1000mm
Angle Difference	≤1°15′	1° 5′

🌍

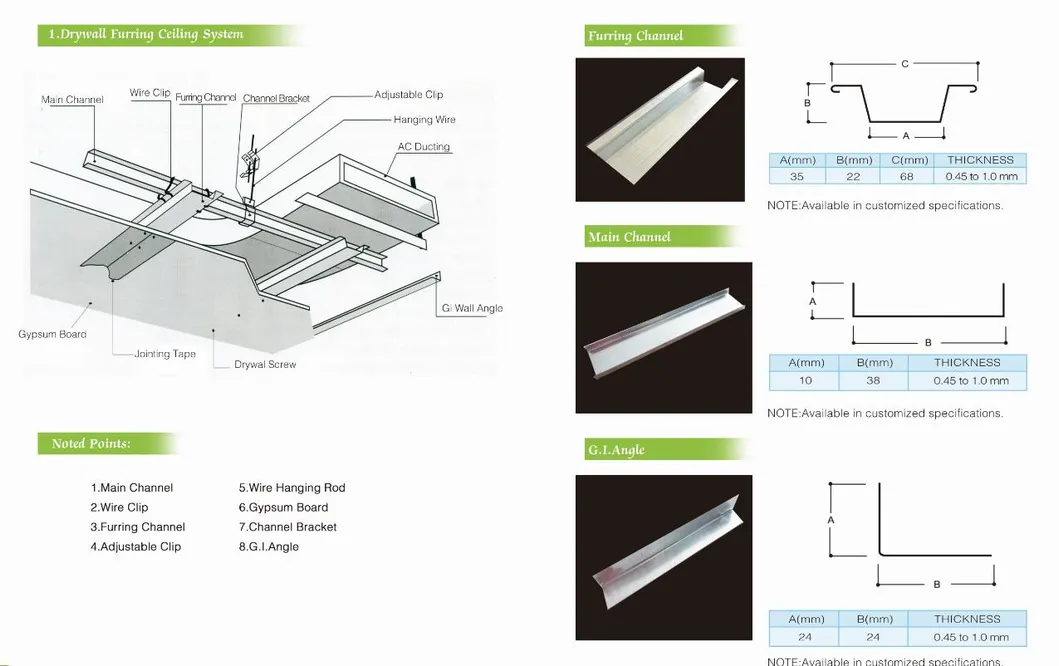

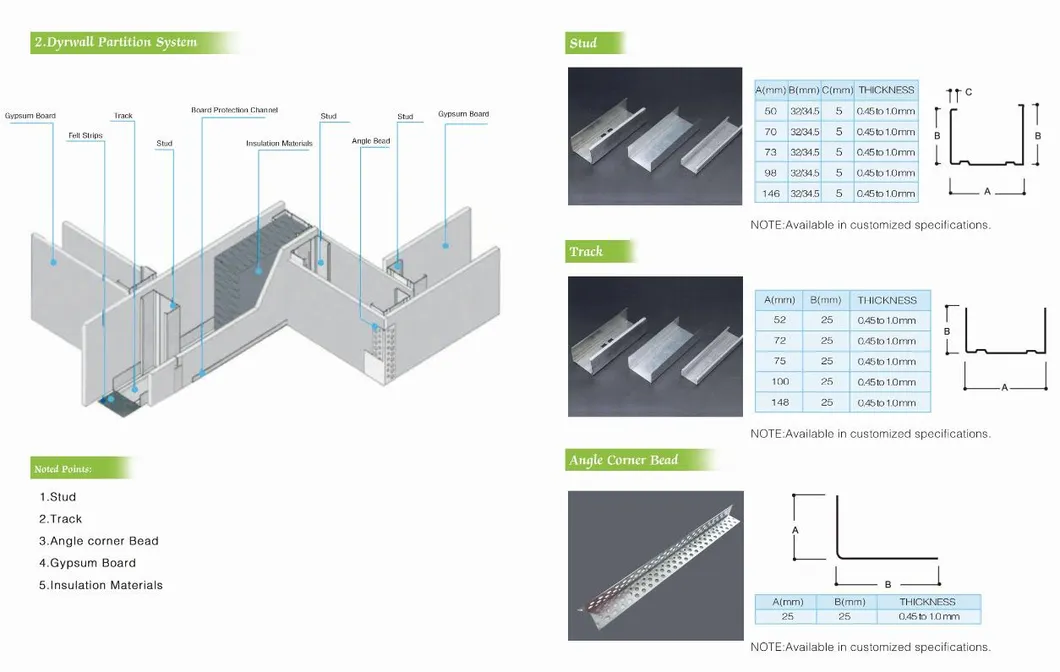

Regional Supply Series

Middle East Market: C-Channel (38*12, 50*15), Stud (41/50/63/70/75/100*35), Track (41/50/63/72/75/100*25), Angle (25*25, 30*30).

Russian Market: CD60*27, UD28*27, CW50/75/100*50, UW50/75/100*40.

Australia & New Zealand: Top Cross Rail 25*21, Furring Channel 28/16*38, Stud 51/64/76/92/150*33.5, Track 51/64/76/92/150*32.

❓

Frequently Asked Questions

Q1: What materials are used for your light steel keels? A: We use high-quality hot-dip galvanized steel, ensuring excellent strength, flexibility, and long-term corrosion resistance.

Q2: Can the dimensions and thickness be customized? A: Yes, we provide full customization for length, width, and thickness based on specific customer requirements and regional standards.

Q3: What is the typical lead time for an order? A: Standard shipping time is between 7 to 20 working days after receiving the advance payment, depending on the specifications.

Q4: Are your products suitable for fireproof applications? A: Absolutely. Our steel profiles are designed for fireproofing, soundproofing, and damp-proofing in various building structures.

Q5: Which regions do you primarily supply to? A: We have specialized product series for the Middle East, Russia, Australia, New Zealand, and other international markets.

Q6: Do you provide related accessories? A: Yes, we also supply runners, omega profiles, drywall screws, mesh tape, and joint tapes for complete ceiling and drywall systems.
