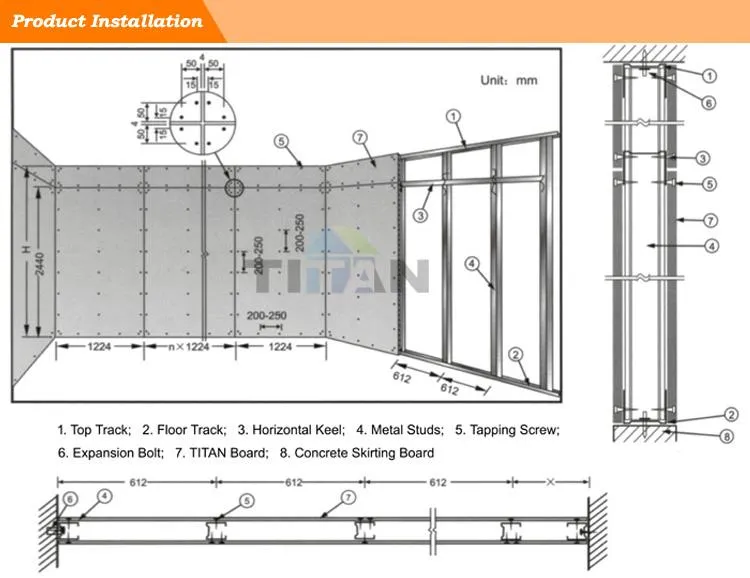

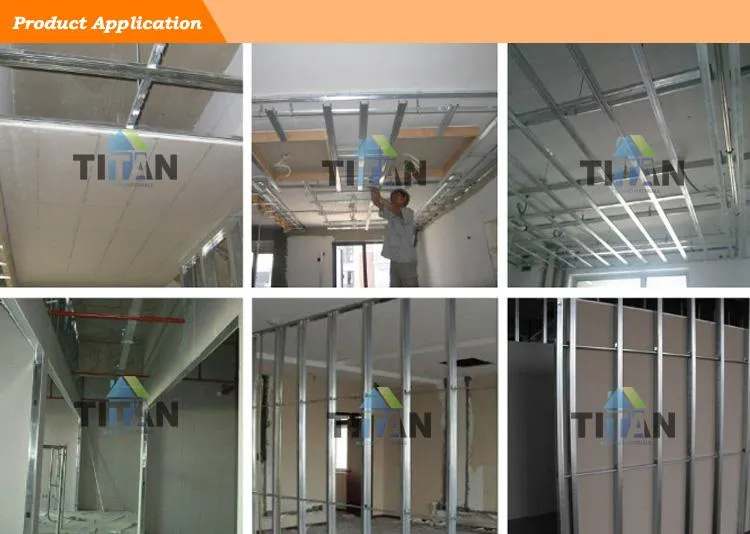

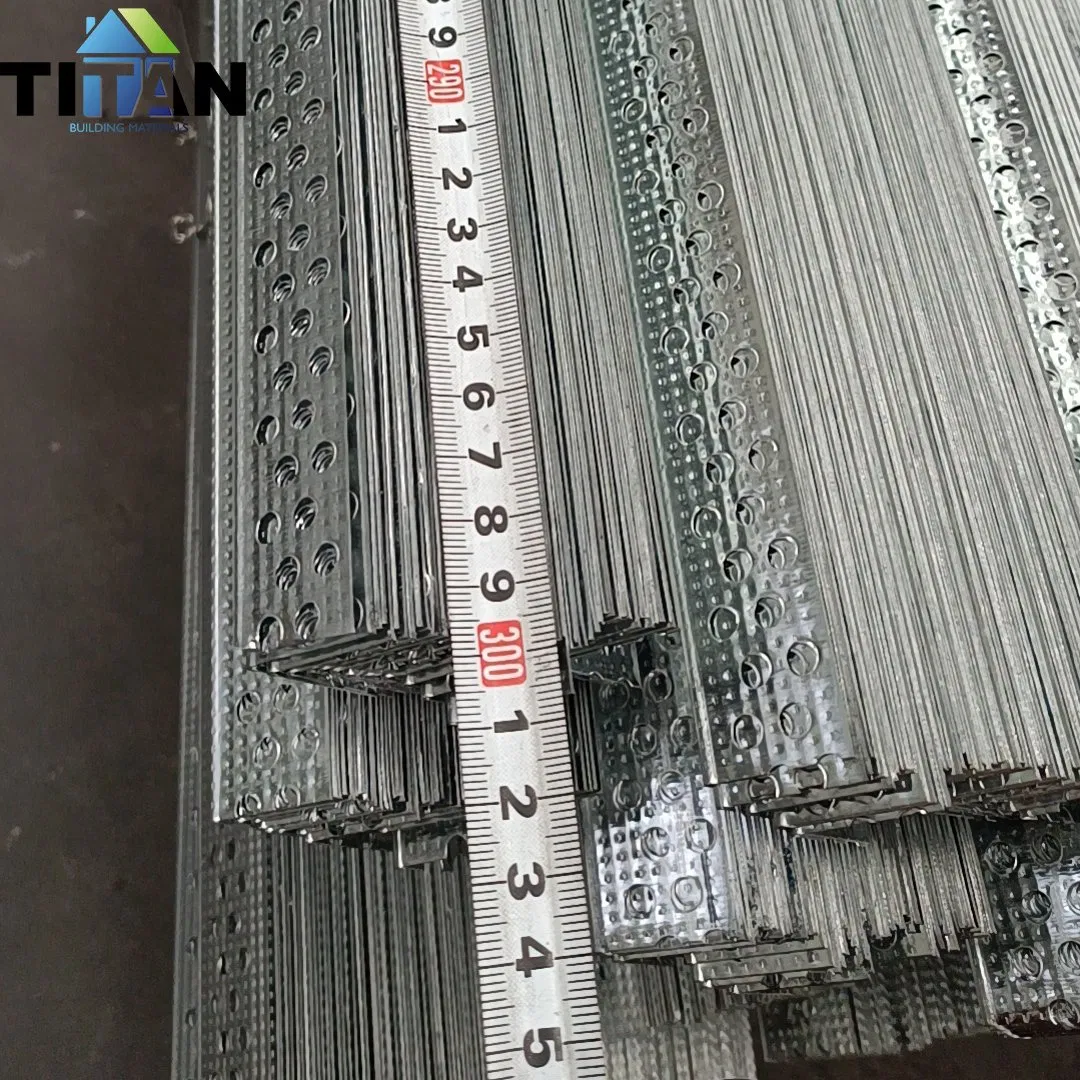

a. Fix top and bottom keels on the respective floors using expansion bolts.
b. Align vertical keels according to requirements (generally 612mm spacing) with laterally supporting keels installed.
2. Board Material Package Fixeda. Cut the board material to dimensions (approx. 10mm lower than wall height).
b. Fix board on the keel using tapping screws at intervals of 200~250mm, sinking screws 0.5mm below the face.
c. Maintain an expansion seam of approx. 4mm between boards.
d. Fix from the middle to the four sides to avoid inner stress and buckling.
e. Glass cotton or rock cotton can be filled before final fixing depending on insulation needs.

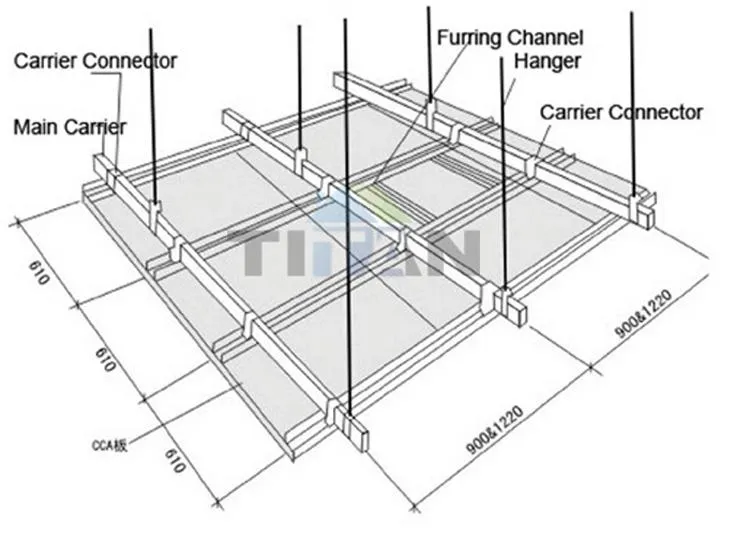

1. Carry out ceiling line-measuring; the boom's central range is generally 1200mm.
2. Connect and fix the boom and main keel with hanging pieces to maintain a level position.
3. Vertically fix the sub-keel to the main keel (central range: 612mm).
4. Install laterally supporting keels properly (central range: 1224mm).
5. Fix the board on sub-keels with tapping screws and apply seam-connecting treatment.
Notice: The system is divided into person-standing (80~100kg load) and non person-standing types.

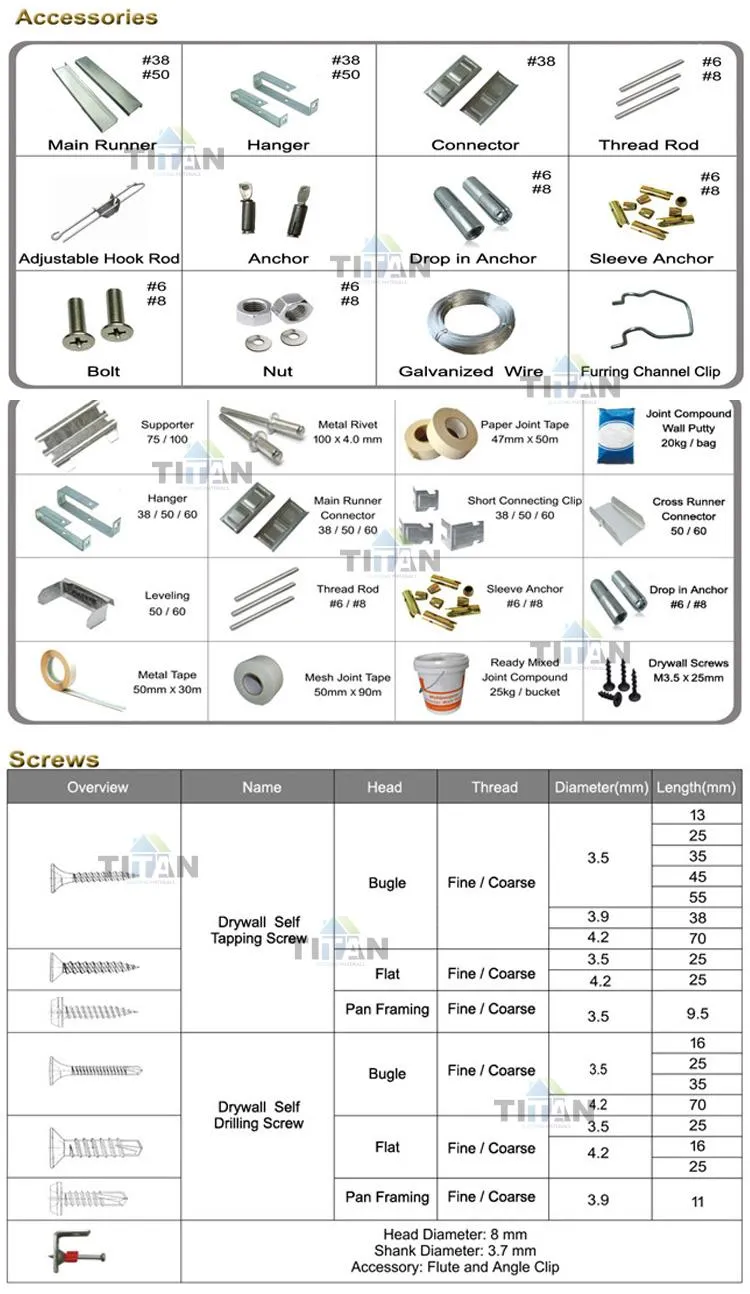

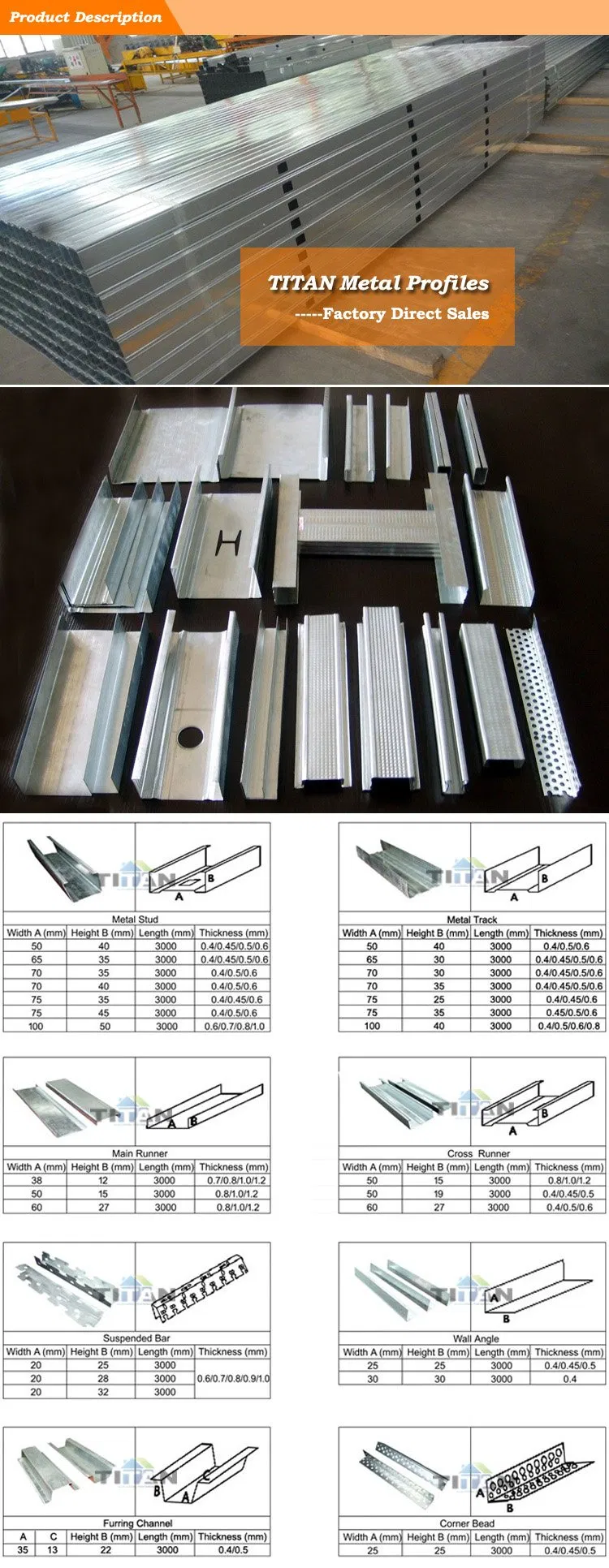

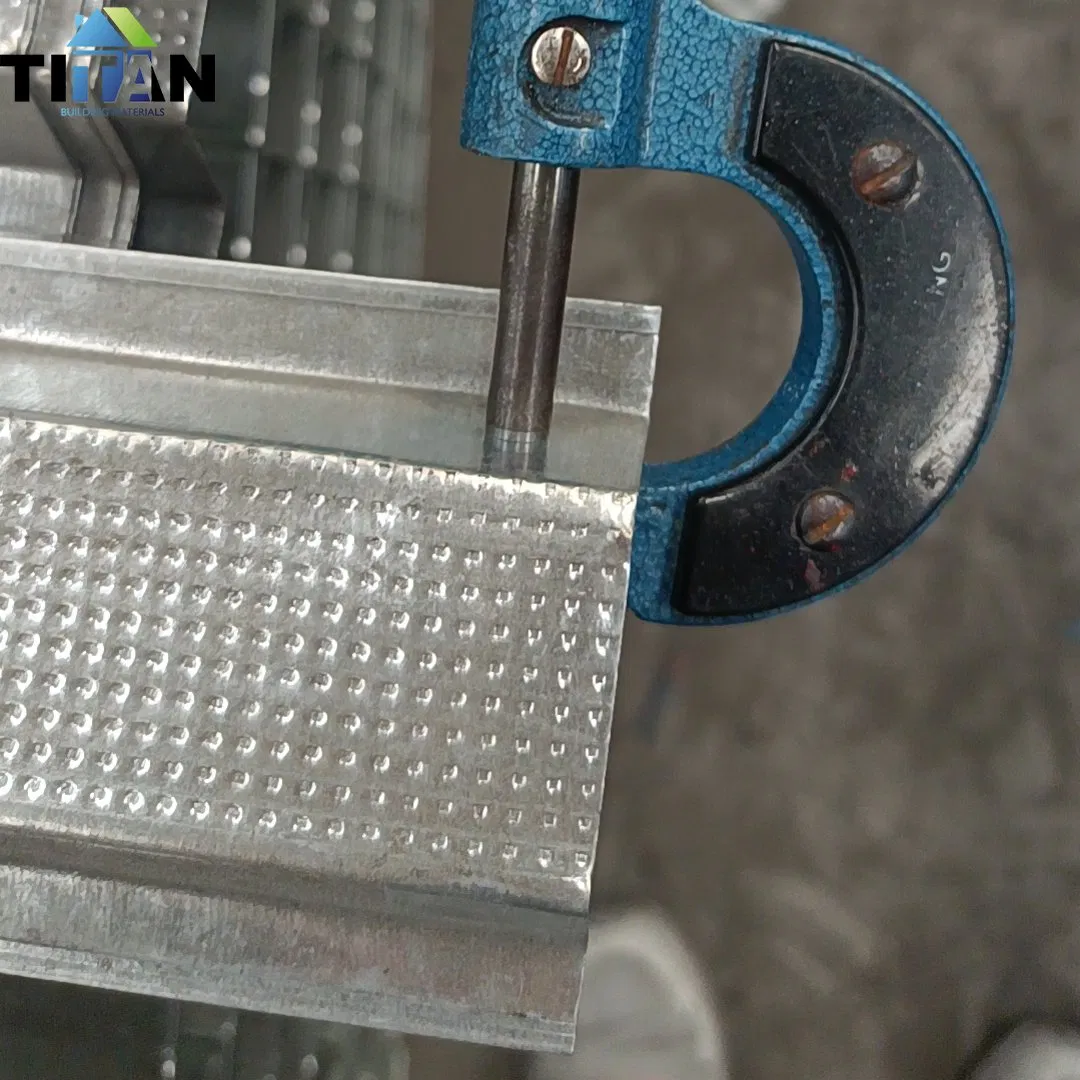

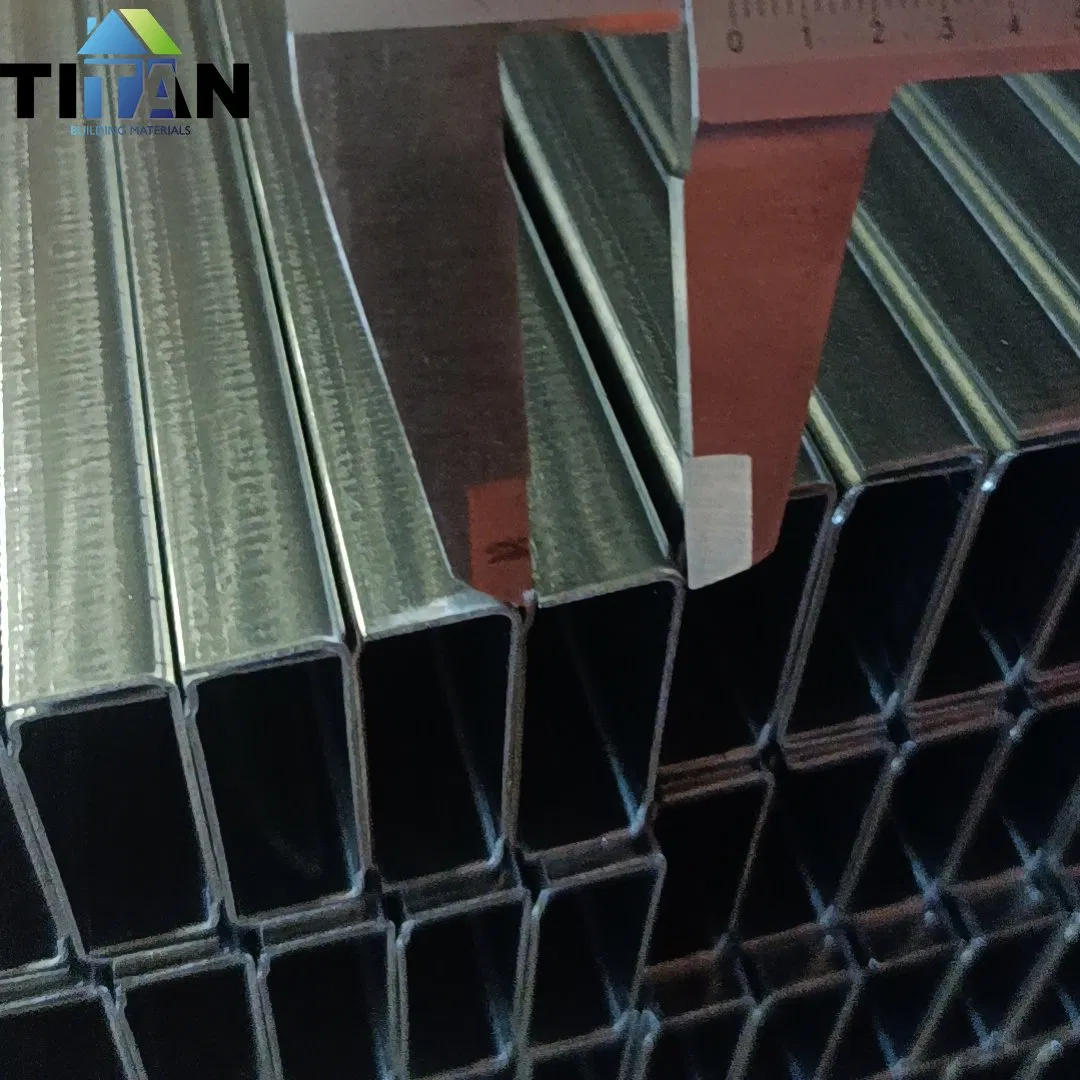

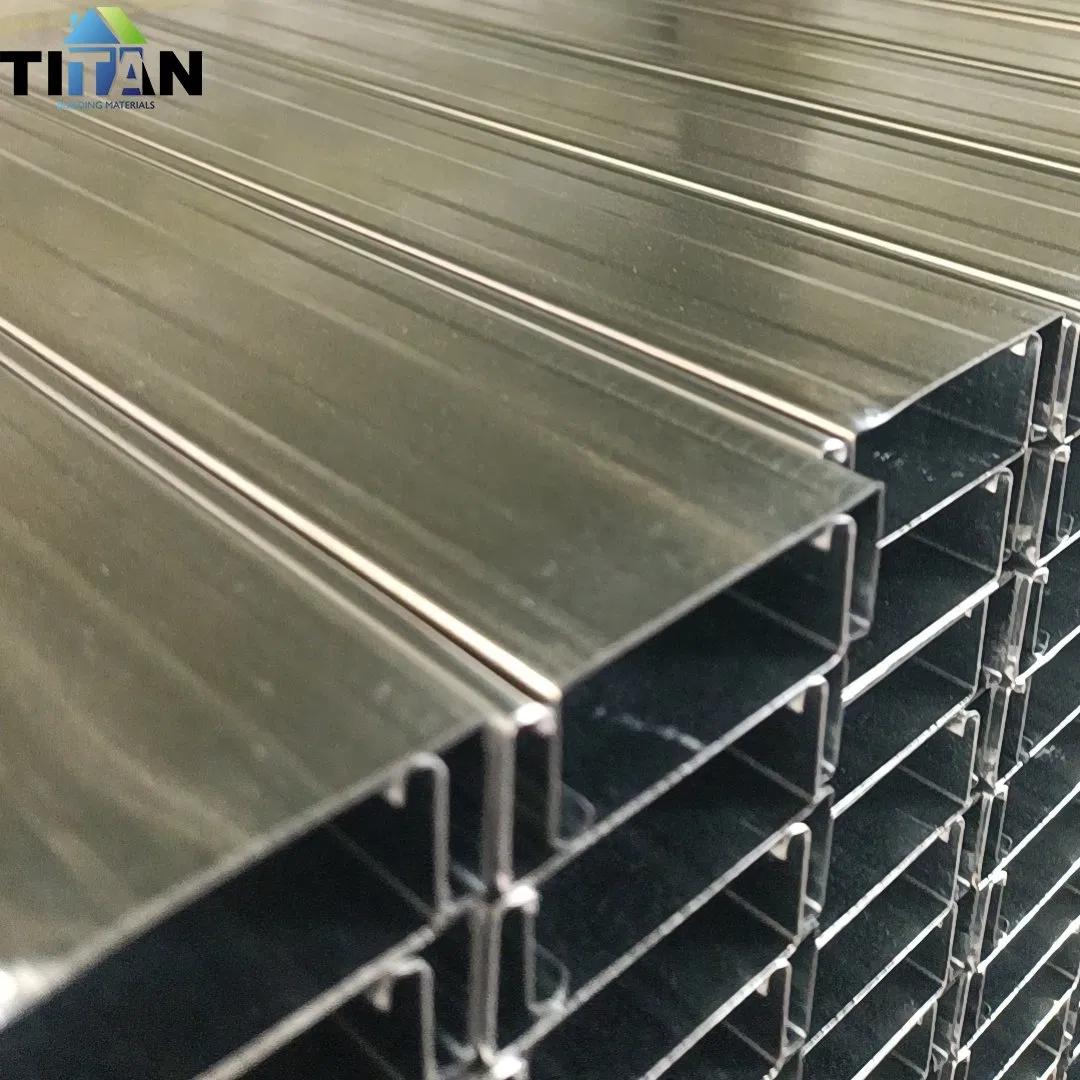

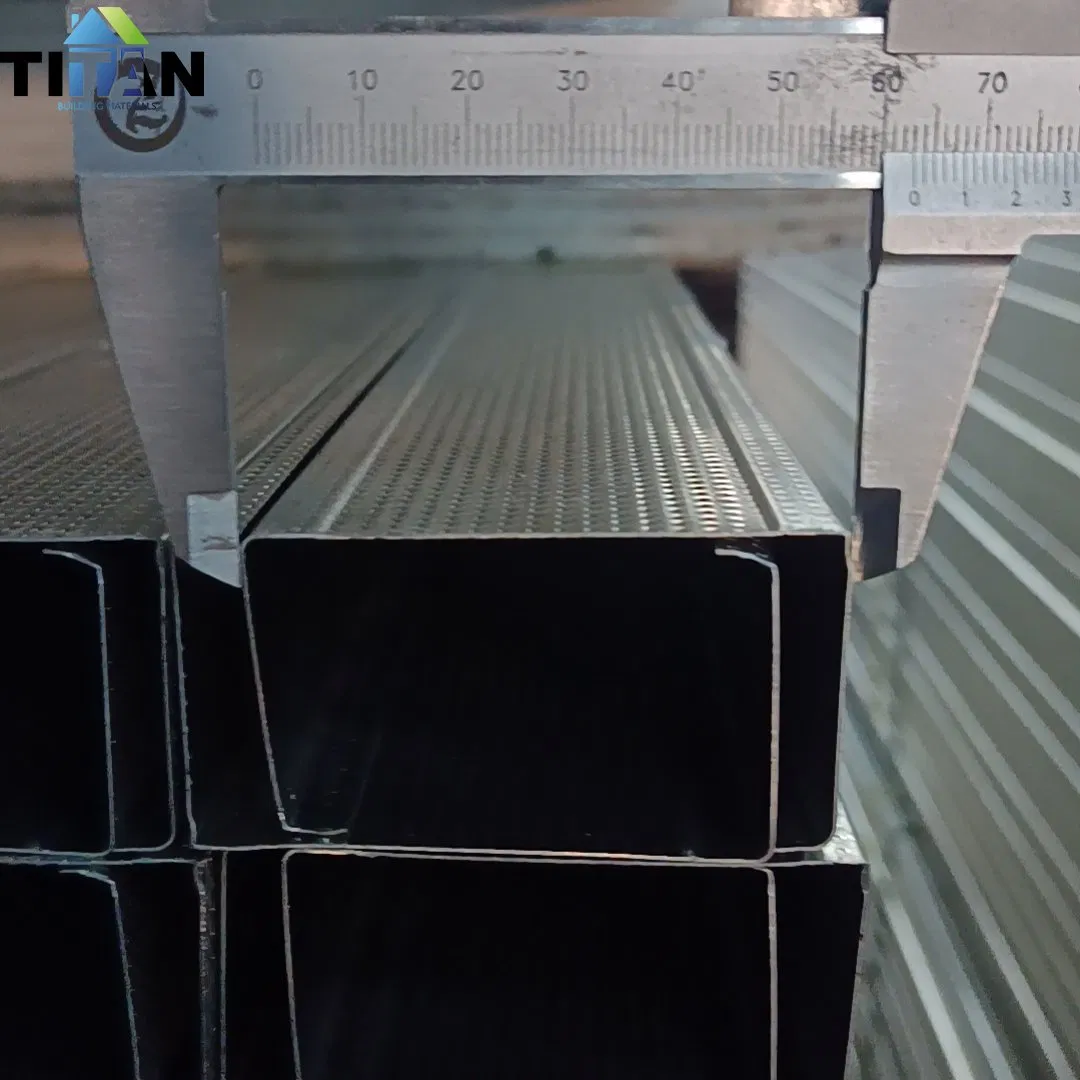

| Ceiling System Proportion | |
|---|---|
| Gypsum Board 1200×2400×9mm | 1 m² |
| Main Runner | 1 m |
| Cross Runner | 3~3.6 m |
| Hanger | 2~3 pcs |
| Main Runner Connector | 0.5 pcs |
| Leveling | 4~6 pcs |
| Drywall Self Tapping Screw | 25~30 pcs |
| Partition System Proportion | |
| Gypsum Board 1200×2400×12mm | 2 m² |
| Metal Stud | 2.2~3.6 m |
| Metal Track | 0.7~1.4 m |
| Intermediate Channel | 0.8~1.4 m |
| Support Card | 4 pcs |
| Drywall Self Tapping Screw | 25~30 pcs |
