| Model NO. | Q235B | Technology | Hot Rolled/Welded |
| Surface | Perforated/ Galvanized/ Black/ Paint Bright/ Polished | Customized | Support Cutting, Drilling & Galvanized |
| Web Width | 100-1000mm | Flange Width | 50-400mm |
| Length | 6/9/12m or as Request | Usage | Building Structures, Bridges, Vehicles, Brackets |
| Thickness (T1/T2) | 5-30mm | Production Capacity | 50000 Tons Per Month |
| Product Name | Standard Sectional Dimension (mm) | Standard | Material Grade | Technique |
|---|---|---|---|---|

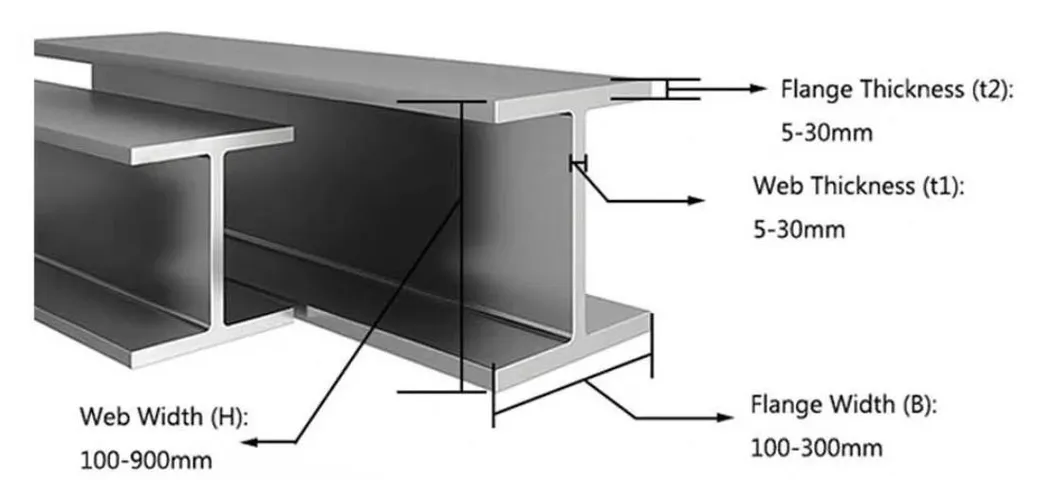

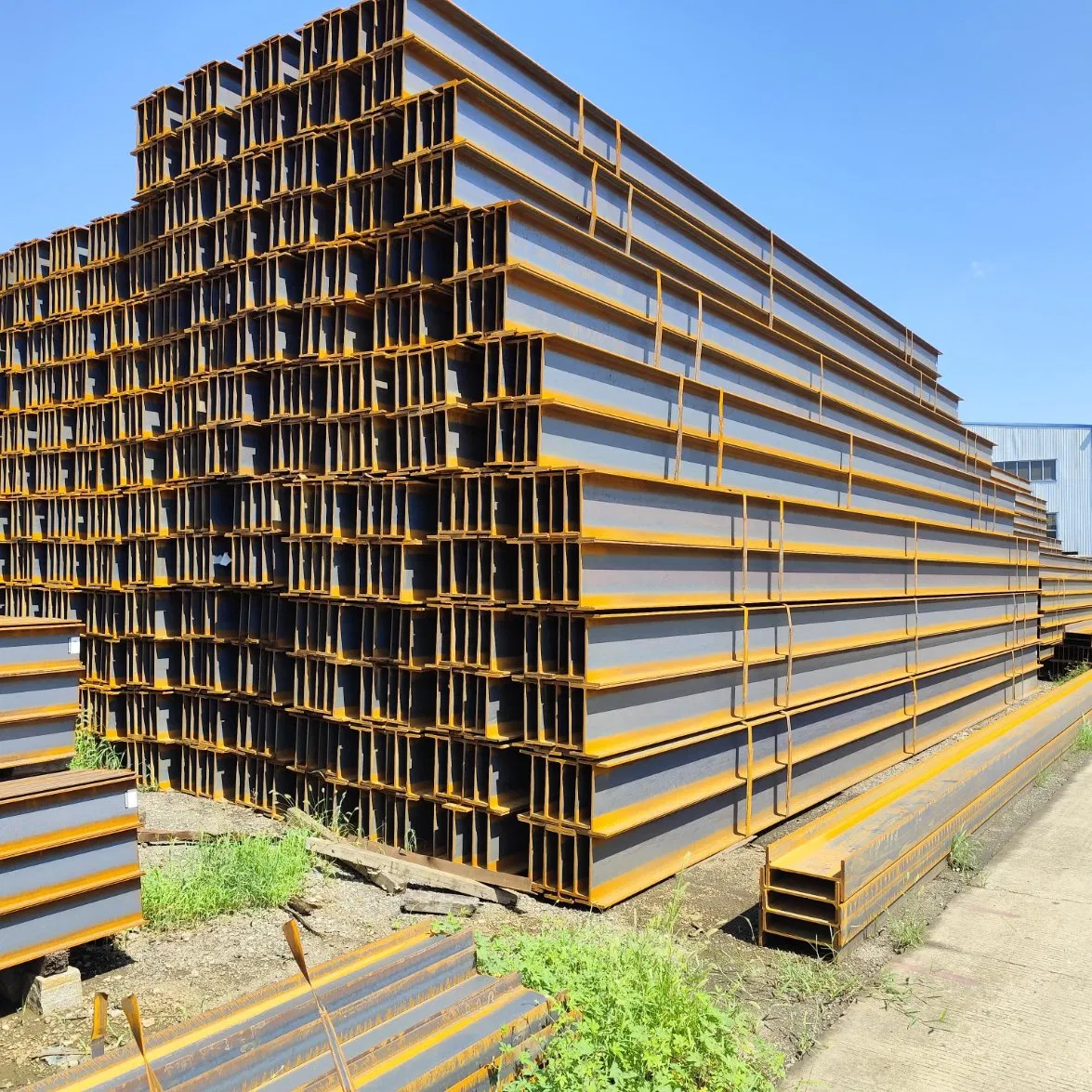

| Universal Column H-Beam / I-Beam | Web Width: 100-900mm | Flange Width: 100-300mm | Web Thick: 5-30mm | Flange Thick: 5-30mm | ASTM, JIS, SUS, DIN, EN, GB | A36 / A572 / SS400 / G50 / Q235B / Q345B / S235 / S355 | Hot Rolled / Welded |
| Specification | Height (mm) | Width (mm) | Web Thickness (mm) | Wing Thickness (mm) | Theoretical Weight (kg/m) |
|---|---|---|---|---|---|
| IPE80 | 80 | 46 | 3.8 | 5.2 | 6.0 |
| IPE100 | 100 | 55 | 4.1 | 5.7 | 8.1 |
| IPE140 | 140 | 73 | 4.7 | 6.9 | 12.9 |
| IPE200 | 200 | 100 | 5.6 | 8.5 | 22.4 |
| IPE300 | 300 | 150 | 7.1 | 10.7 | 42.2 |
| IPE400 | 400 | 180 | 8.6 | 13.5 | 66.3 |
| IPE600 | 600 | 220 | 12.0 | 19.0 | 122.0 |
| Designation | Type | Weight (kg/m) | H (mm) | B (mm) | t1 (mm) | t2 (mm) | Area (cm²) |
|---|---|---|---|---|---|---|---|
| HE100 | A | 16.7 | 96.0 | 100.0 | 5.0 | 8.0 | 21.24 |
| B | 20.4 | 100.0 | 100.0 | 6.0 | 10.0 | 26.04 | |
| HE200 | A | 42.3 | 190.0 | 200.0 | 6.5 | 10.0 | 53.83 |
| B | 61.3 | 200.0 | 200.0 | 9.0 | 15.0 | 78.08 | |
| HE300 | A | 88.3 | 290.0 | 300.0 | 8.5 | 14.0 | 112.5 |
| B | 117.0 | 300.0 | 300.0 | 11.0 | 19.0 | 149.1 | |
| HE400 | A | 125.0 | 390.0 | 300.0 | 11.0 | 19.0 | 159.0 |
| B | 155.0 | 400.0 | 300.0 | 13.5 | 24.0 | 197.8 |

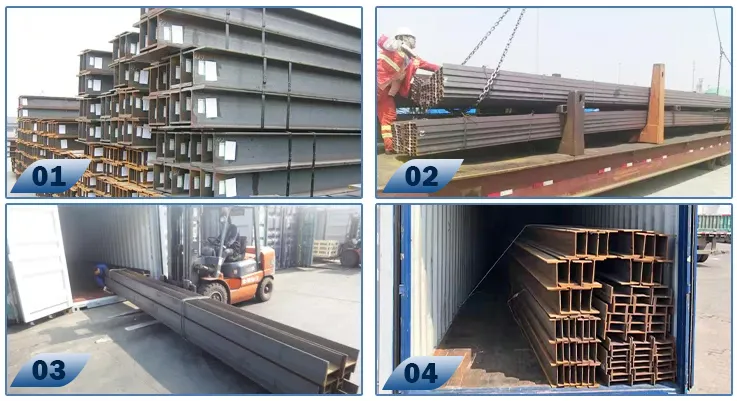

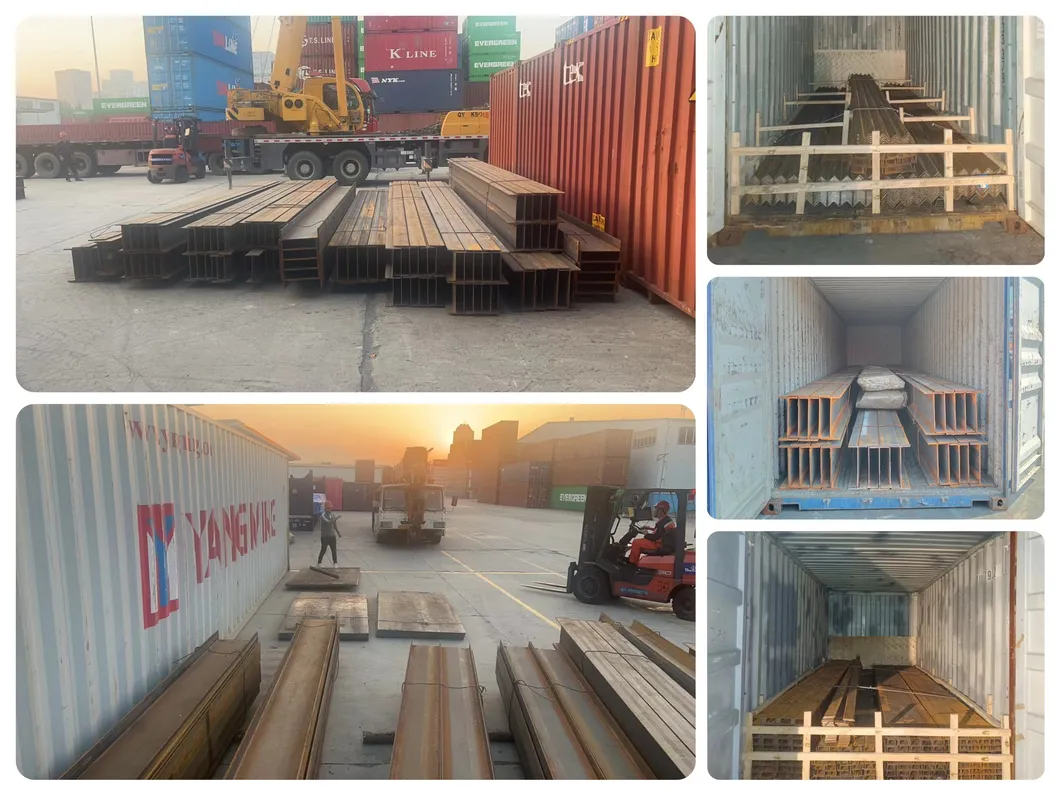

1) 20ft Container: Load up to 26 tons (Max length 5.8M).
2) 40ft Container: Load up to 26 tons (Max length 12M).
3) Bulk Vessel: Recommended for orders exceeding 100 tons.
4) Custom Loading: Flexible solutions based on project requirements.
