Light steel profiles for ceilings and walls

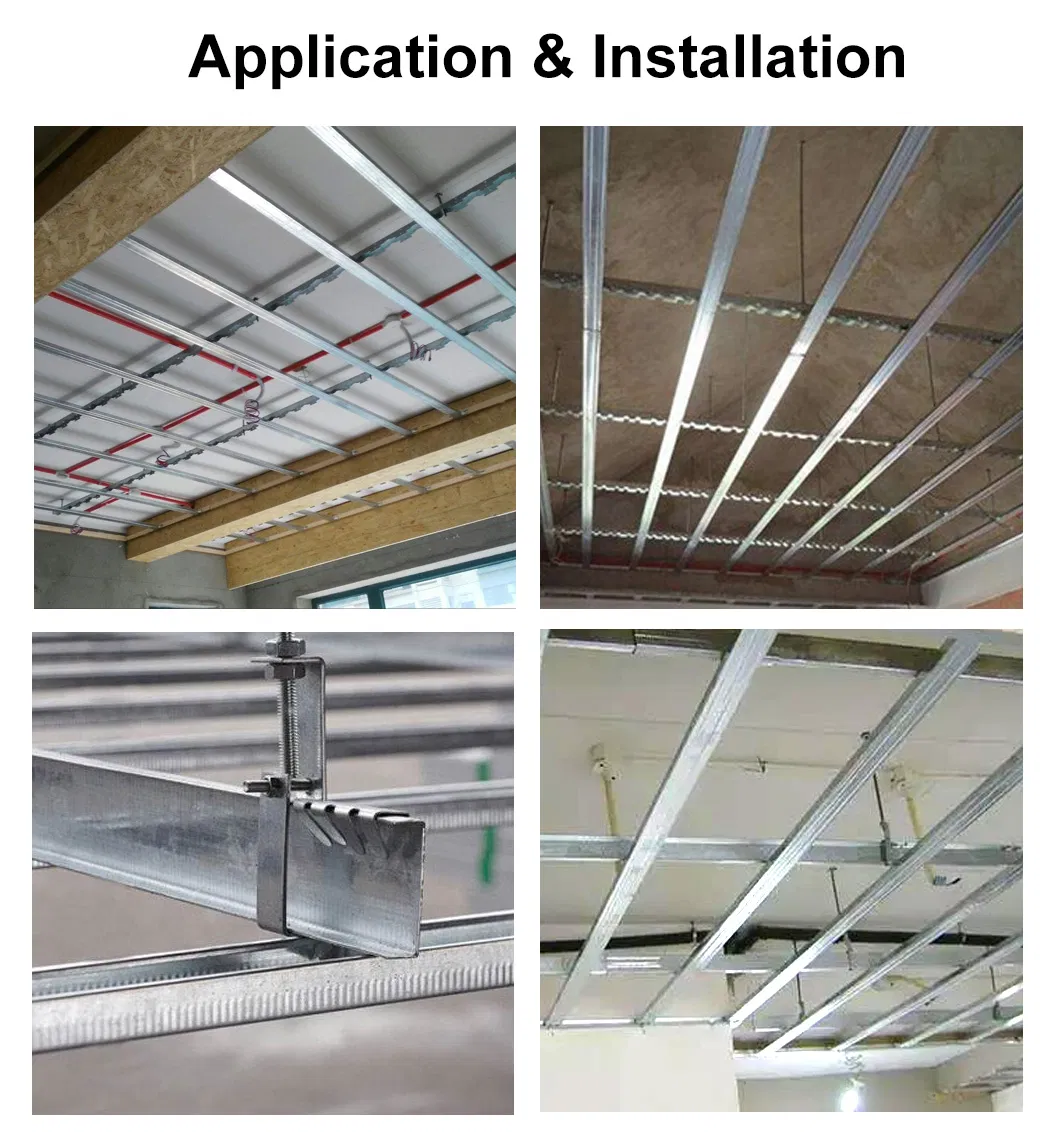

Made from high-quality galvanized steel and designed for suspended ceiling and drywall partition systems. With precise dimensions, strong load-bearing capacity, and corrosion resistance, these profiles provide stable and reliable support for commercial and residential construction projects. Available in ceiling and partition types, with standard specifications and custom options, our light steel framing is supplied factory direct for global importers, distributors, and project contractors.
Material: Galvanized steel strip

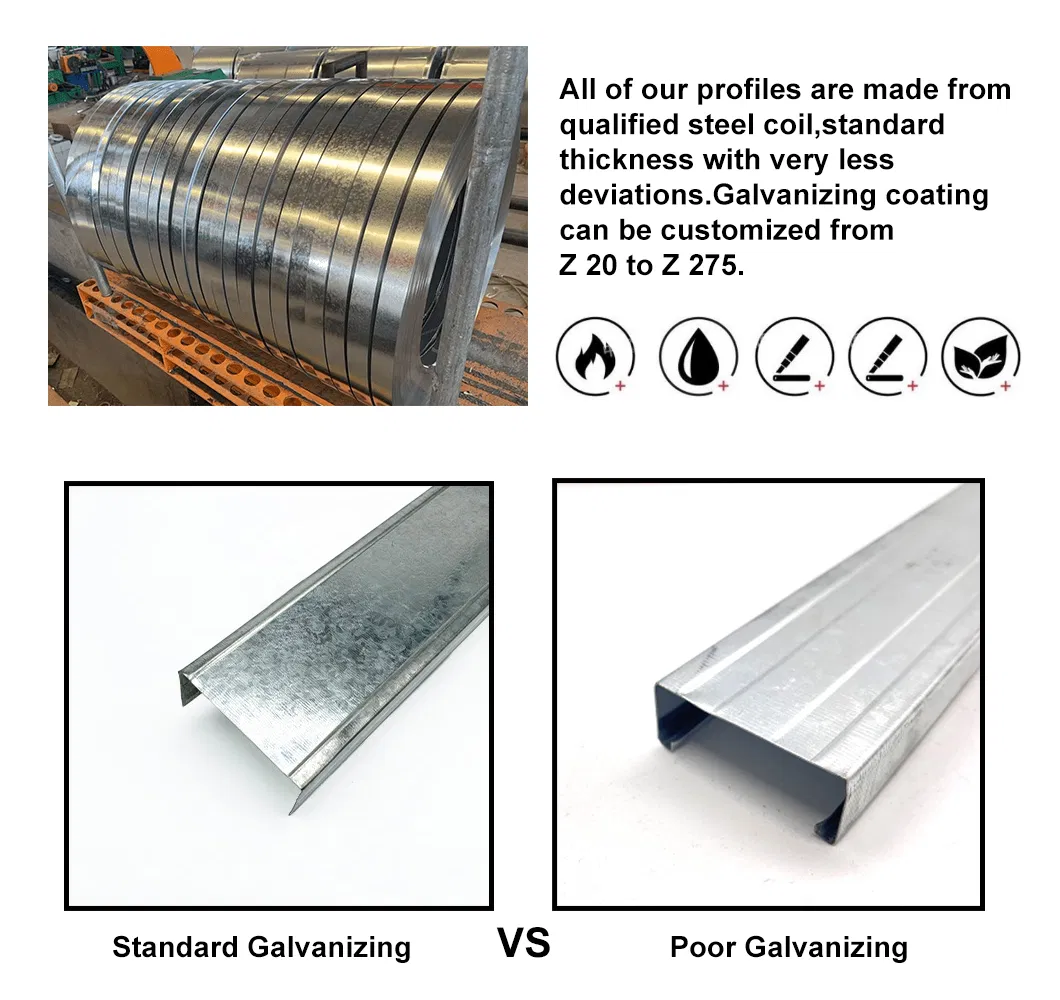

Zinc coating: Z20 - Z275 (custom available)
Surface: Smooth, anti-corrosion
Thickness: 0.4mm – 1.2mm
√ High load-bearing capacity
√ Accurate dimensions for easy installation
√ Corrosion resistant and durable
√ Compatible with international systems

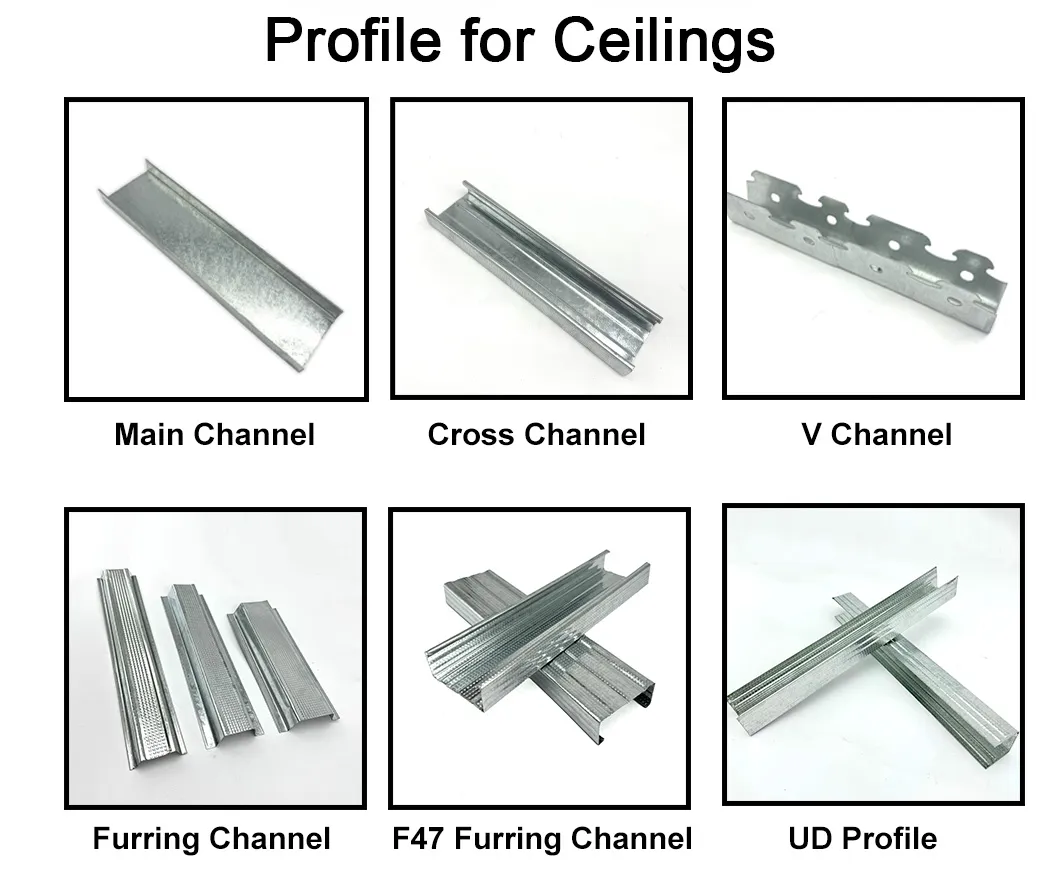

| Model | Length | Width | Height | Thickness | Galvanized |
|---|---|---|---|---|---|
| Main Channel | 2800/3000/4000mm | 38/50mm | 12/15mm | 0.4-1.2mm | Z20 - Z275 |

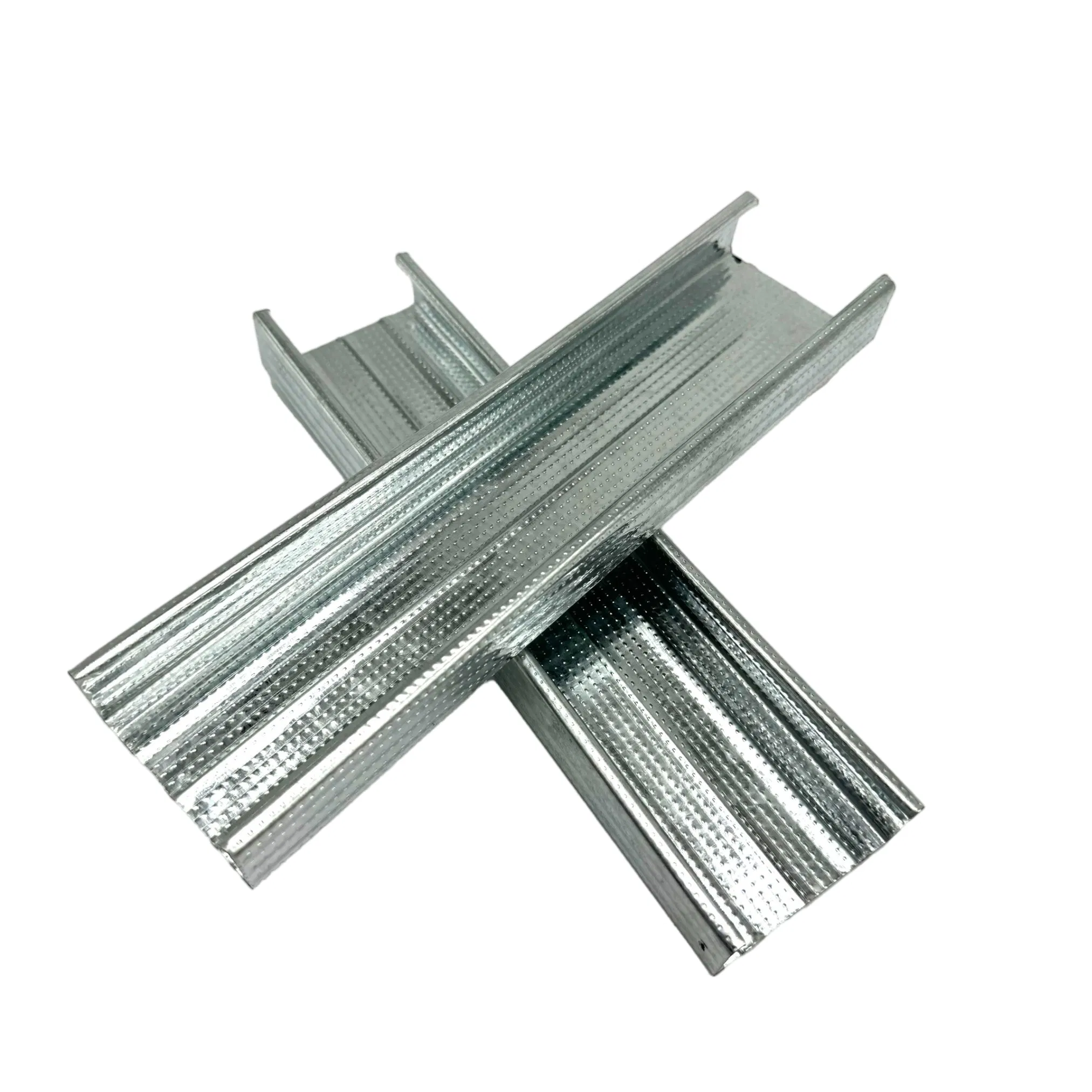

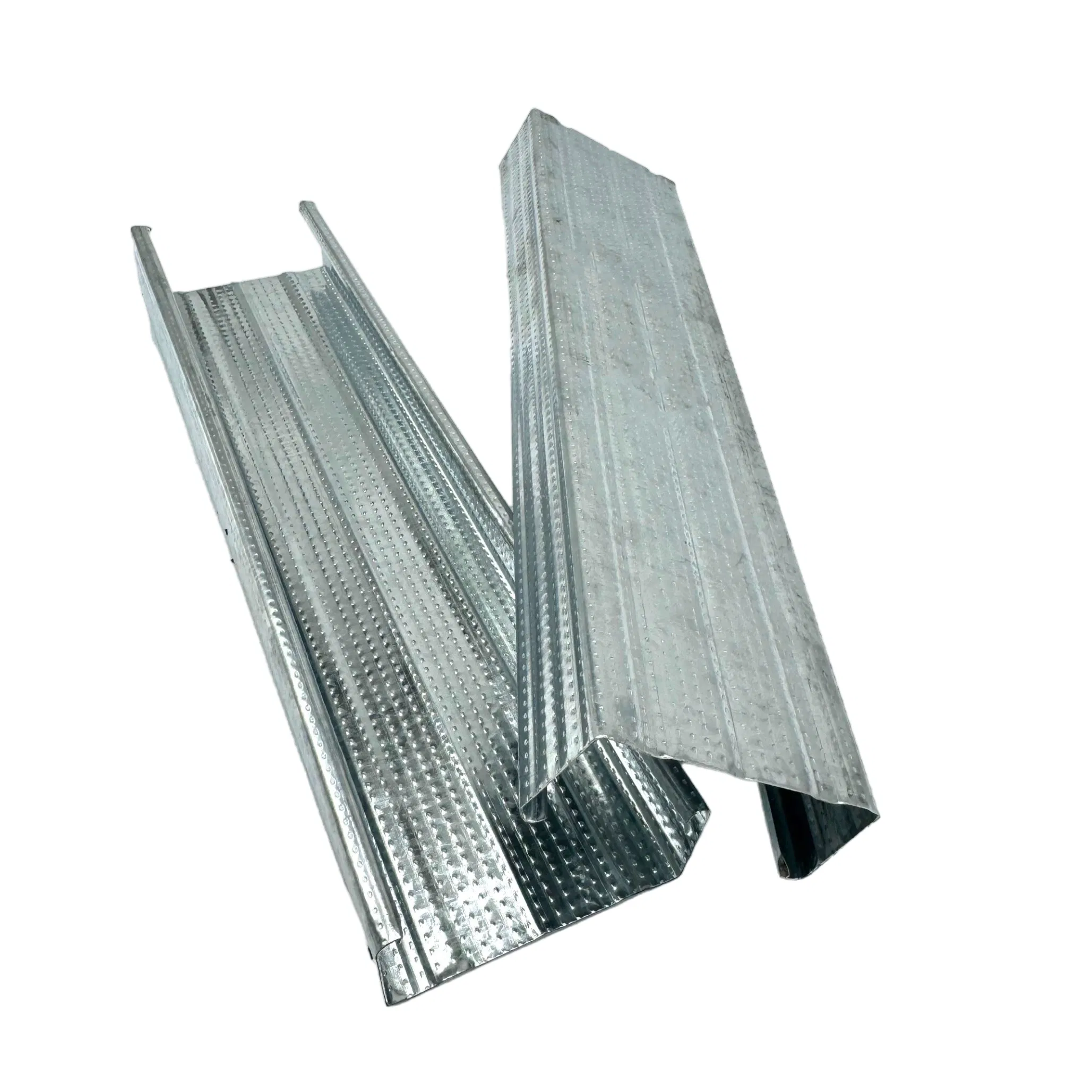

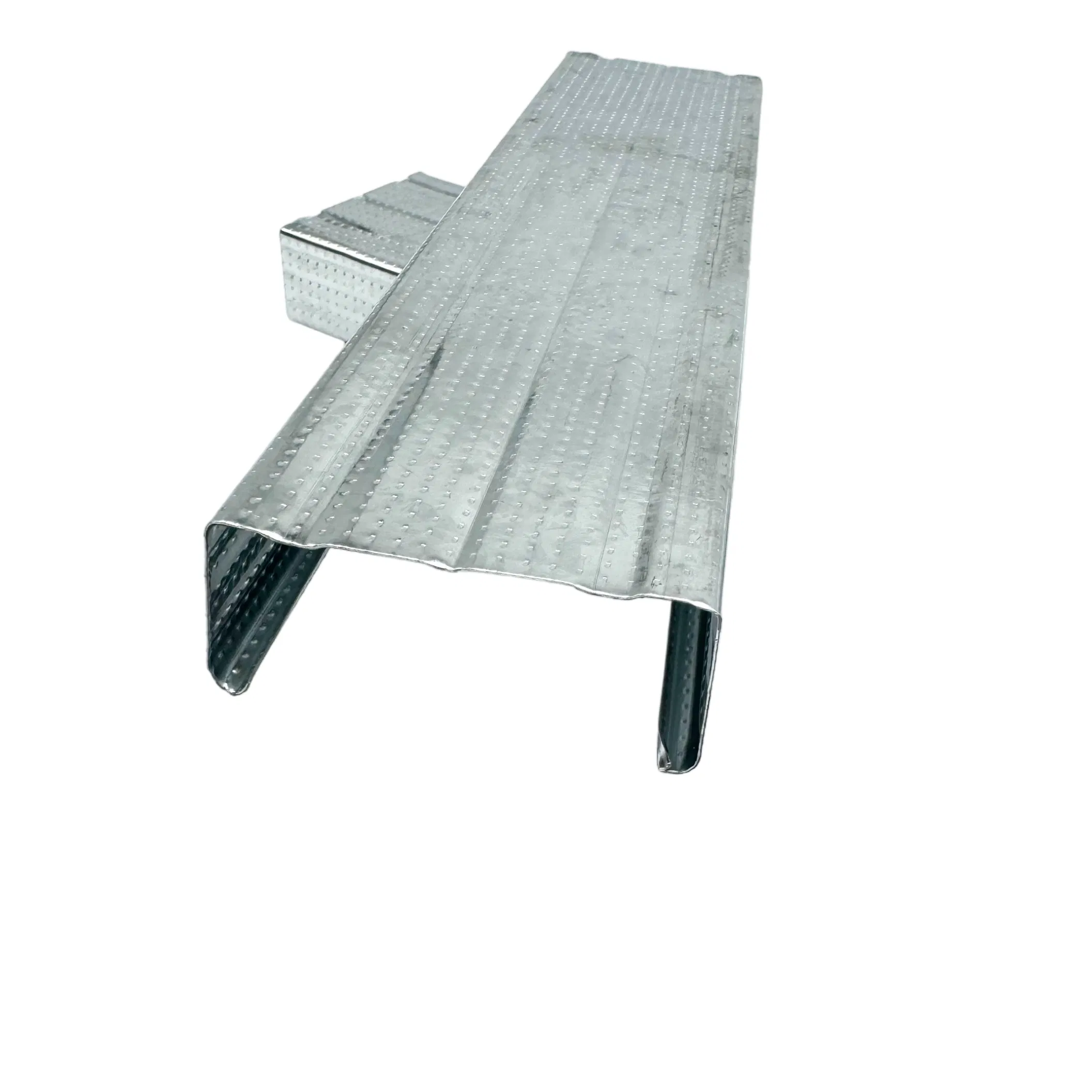

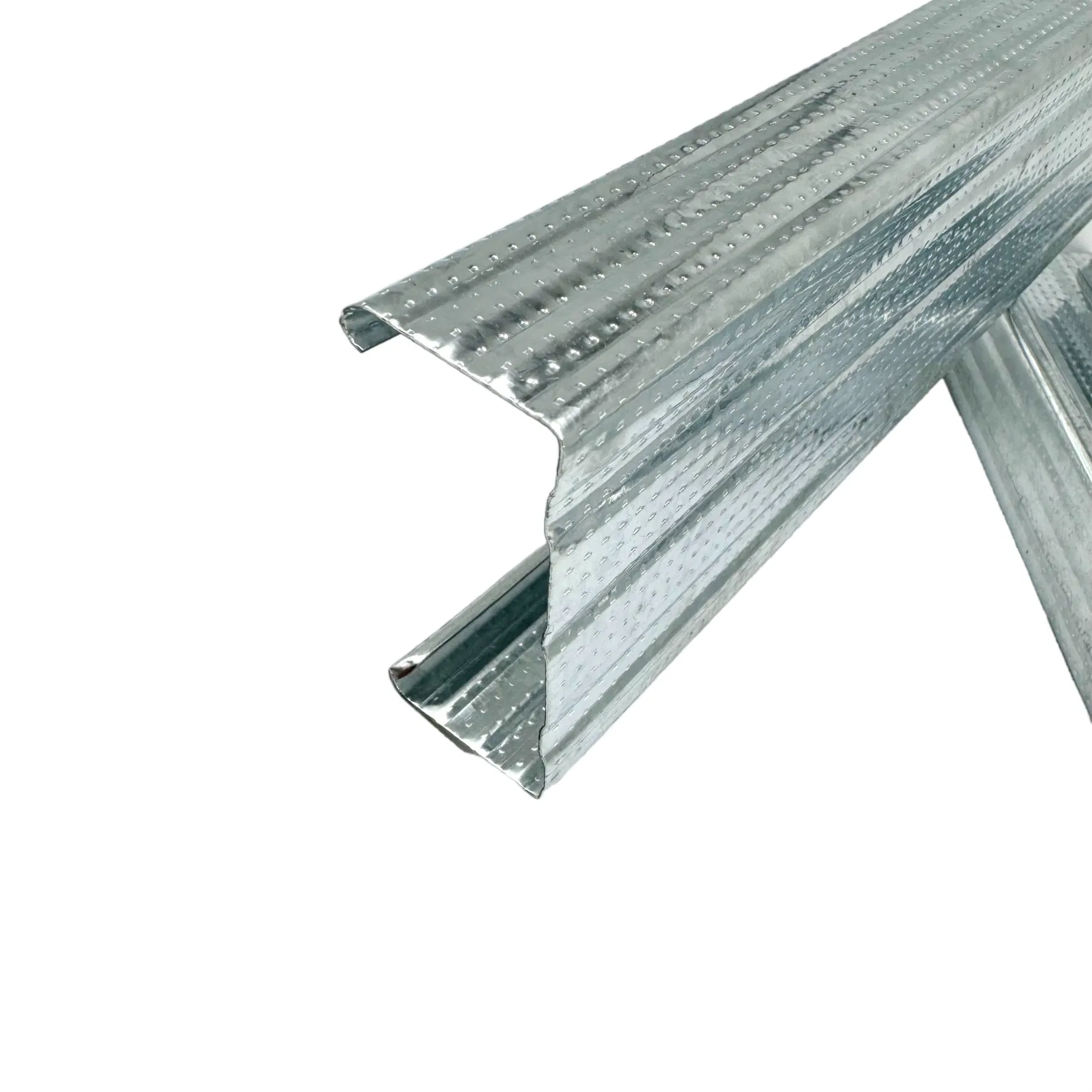

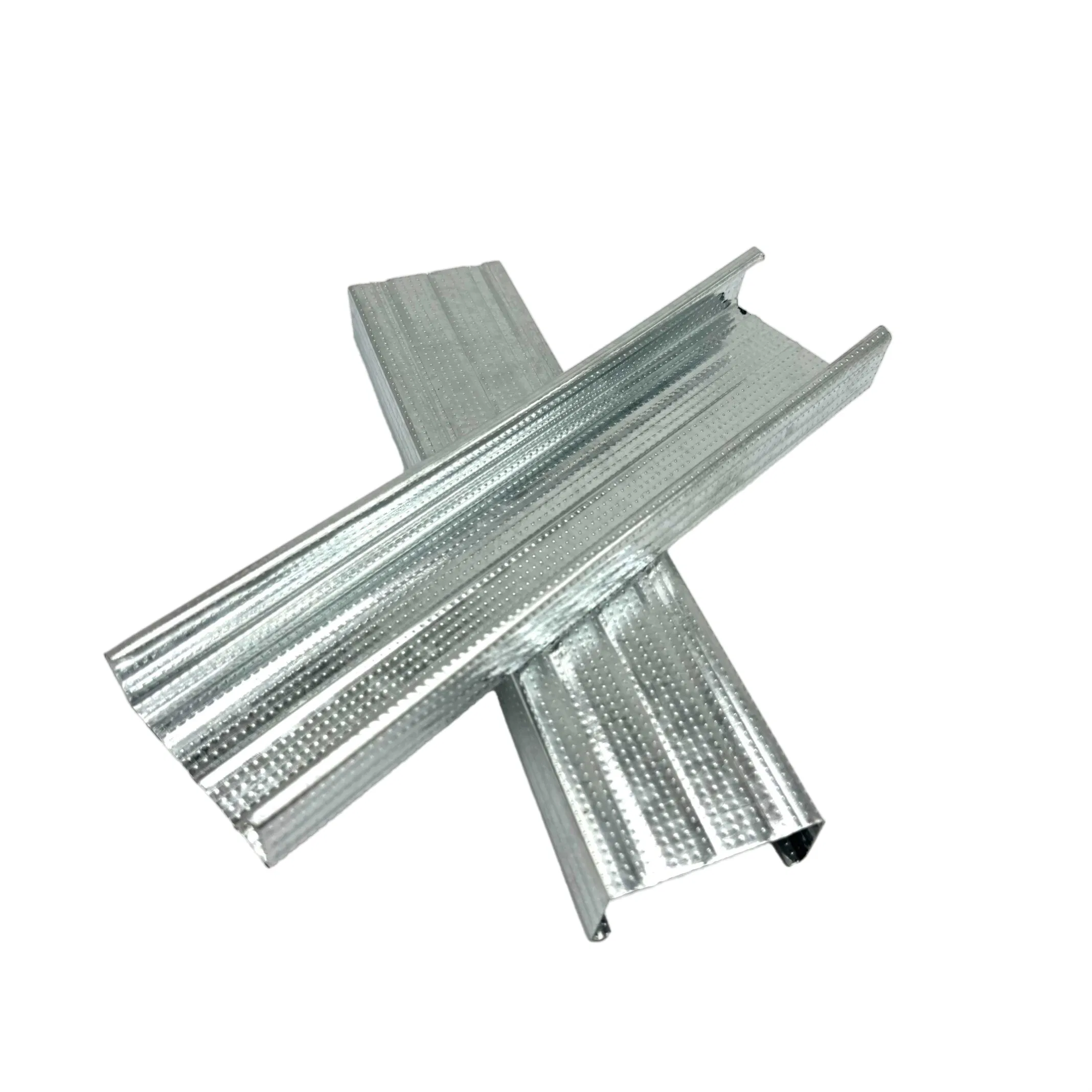

| Cross Channel | 50mm | 19mm | 0.4-0.6mm | ||
| V Channel | 28/38mm | 18/20mm | 0.6-1.2mm | ||
| Furring Channel | 68/88mm | 22mm | 0.4-0.6mm | ||
| F47 | 60mm | 27mm | 0.4-0.6mm | ||
| Profile UD | 28mm | 27mm | 0.4-0.6mm |

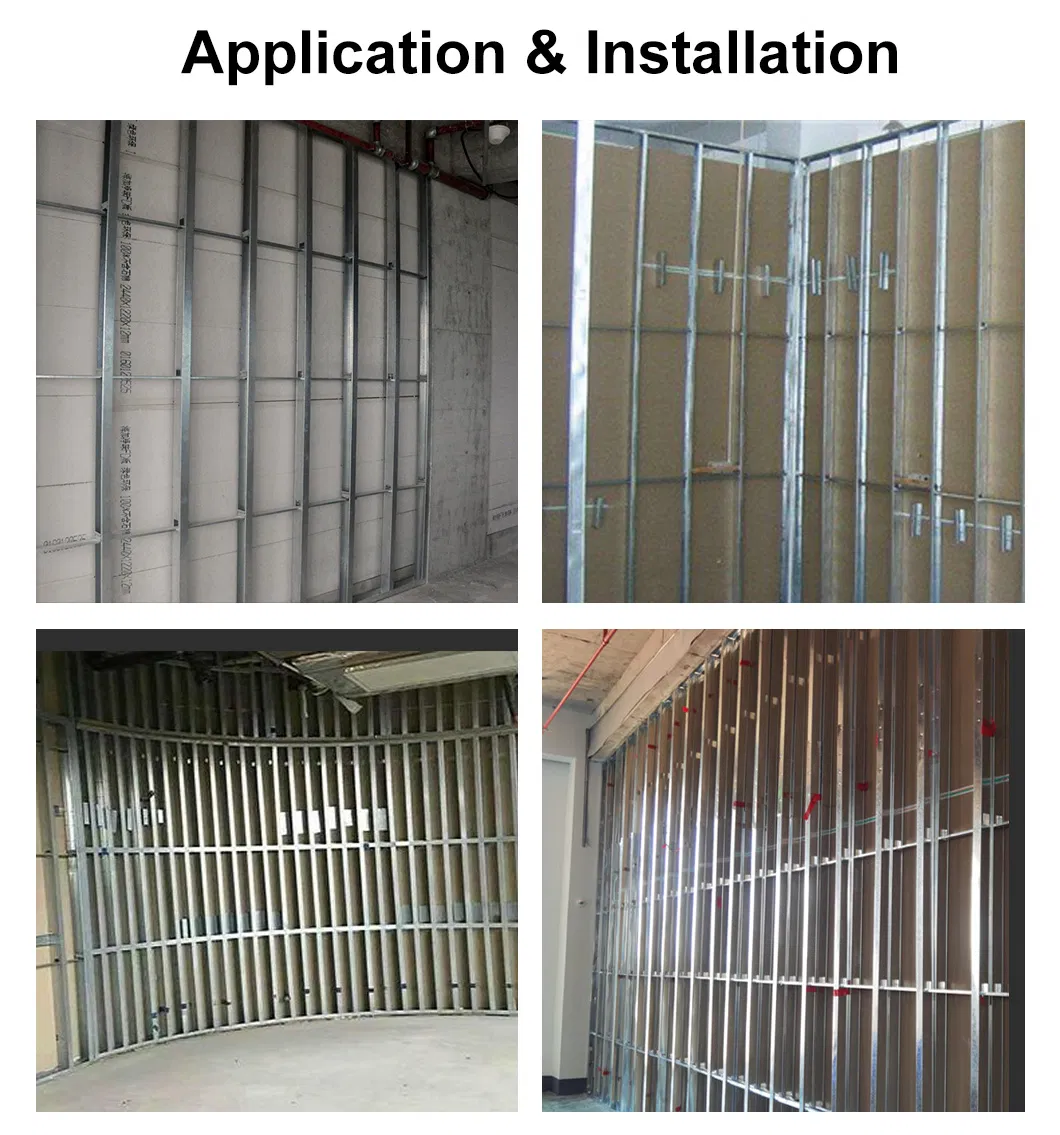

| Model | Length | Width | Height | Thickness | Galvanizing |
|---|---|---|---|---|---|

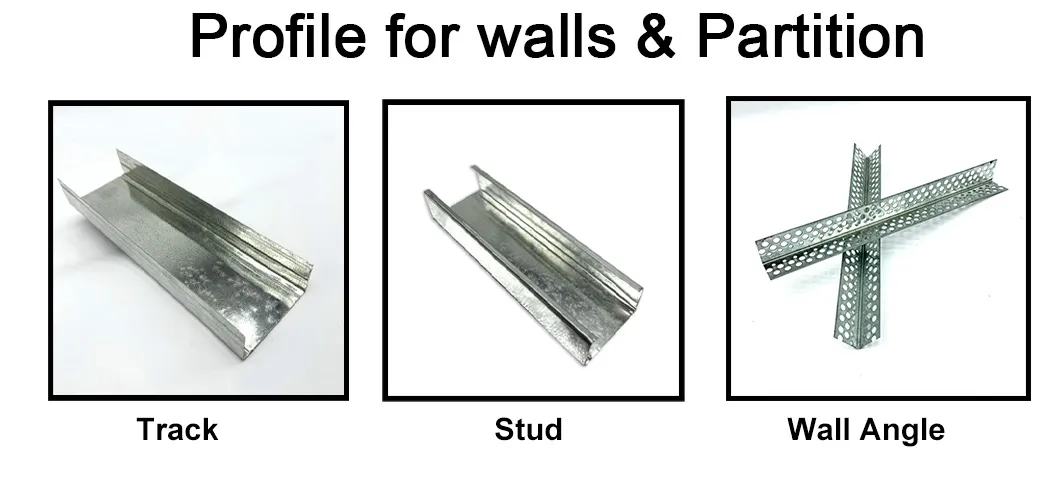

| Track | 2800/3000/4000mm | 50/75/100mm | 35/45/50mm | 0.4-0.6mm | Z20 - Z275 |
| Stud | 50/75/100mm | 40/45/50mm | |||
| Wall angle | 20/30mm | 20/30mm |
√ Factory direct supply

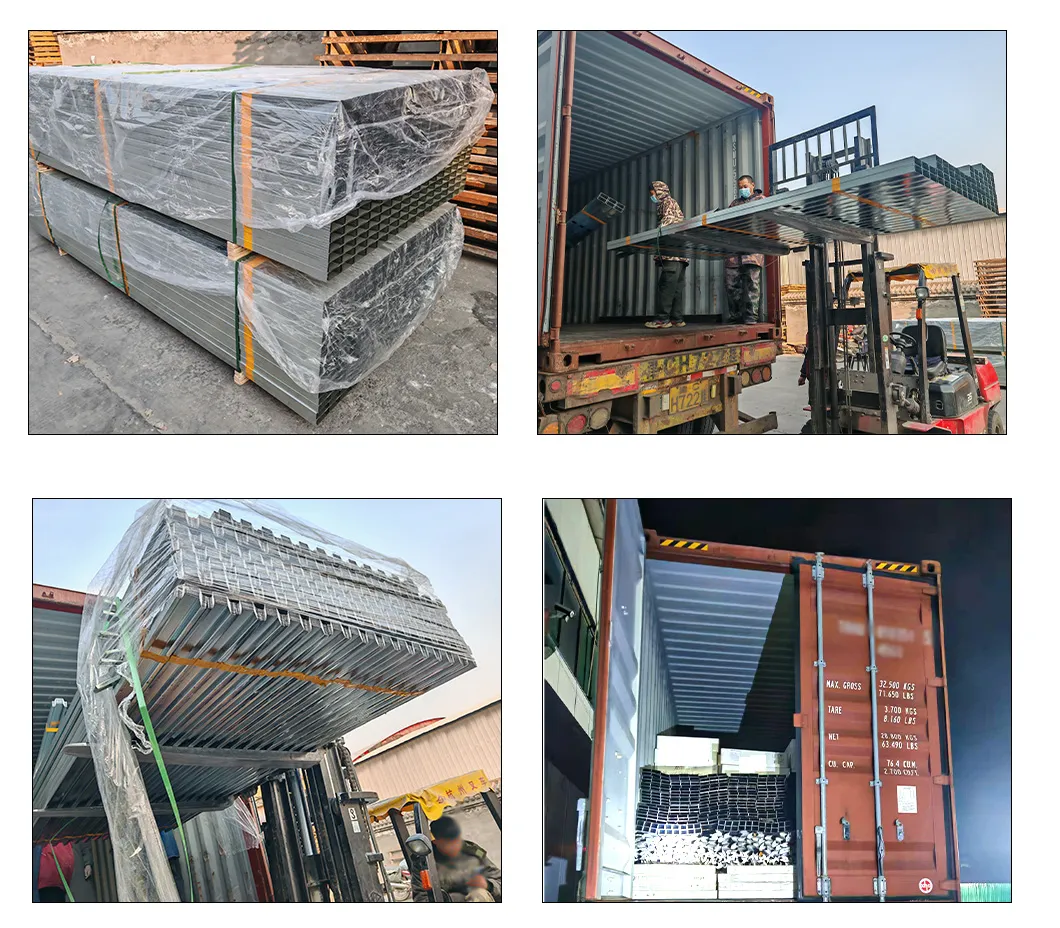

√ Bundled packing with straps
√ Pallet packing optional
√ Container loading support
√ OEM labeling available

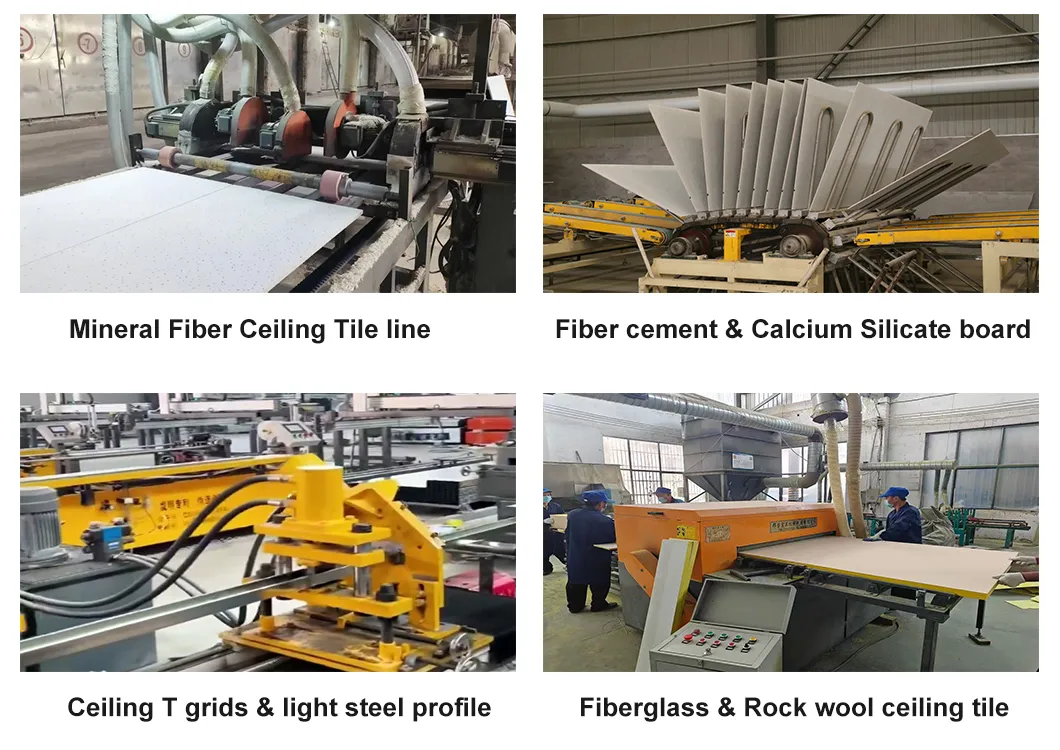

Equipped with state-of-the-art production lines to support custom specifications tailored for both commercial and industrial applications. We focus on innovation and precision in manufacturing mineral fiber ceiling tiles, fiberglass ceiling tiles, fiber cement boards, and drywall metal frames.
