The metal furring Runner (furring Omega) is a concealed metal system for suspended ceilings where no visible joints are required. It has been designed to allow the creation of a ceiling that has a conventional plaster appearance. The impression is created by using the Furring Omega metal concealed system onto which plasterboard is directly fixed. This also allows a variety of decorations to be applied to the surface.
For applications where hygiene is of prime importance, particularly in the medical field, the ceiling can be left smooth. Items such as light fittings, access panels and ventilation units are easily accommodated within the Furring Omega ceiling system.

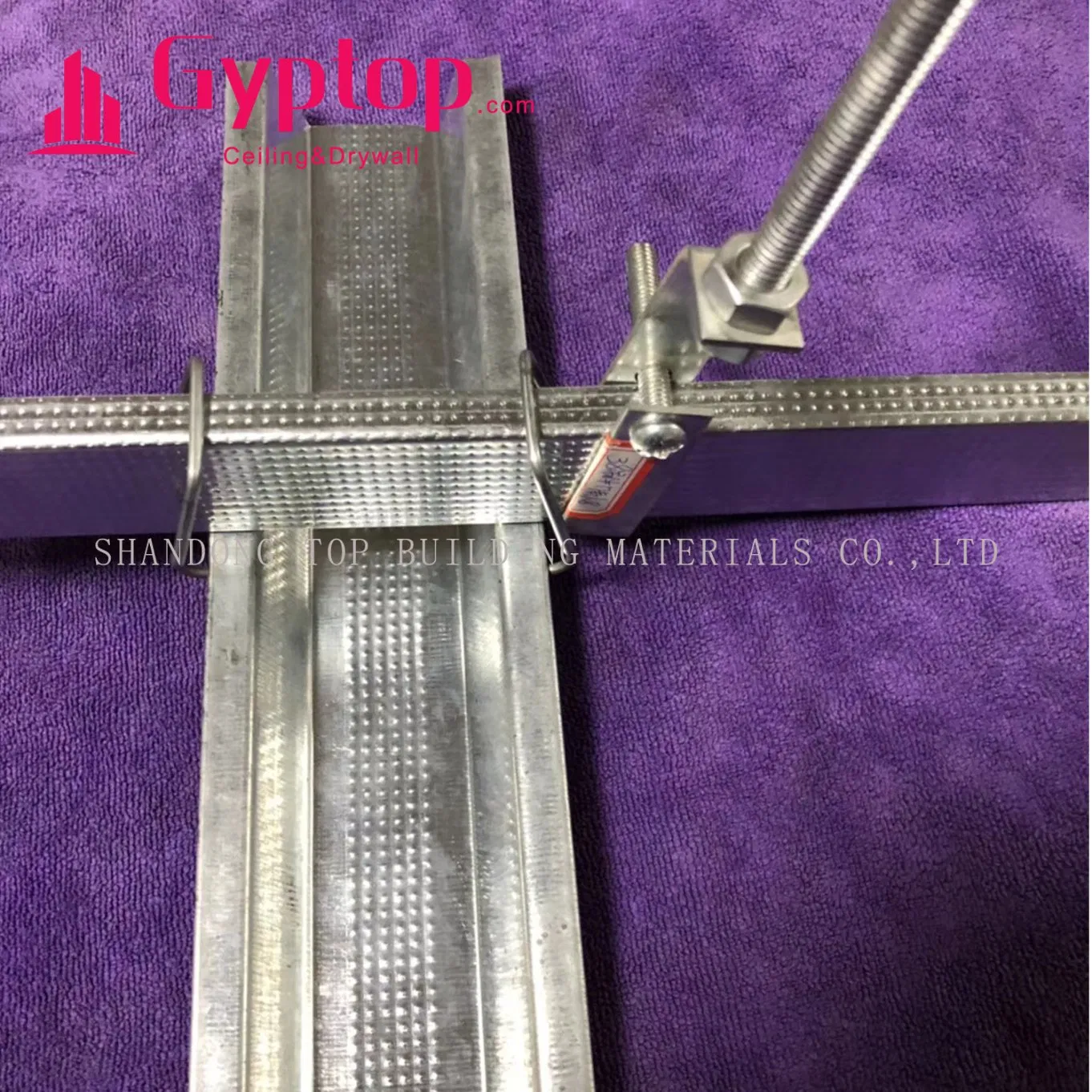

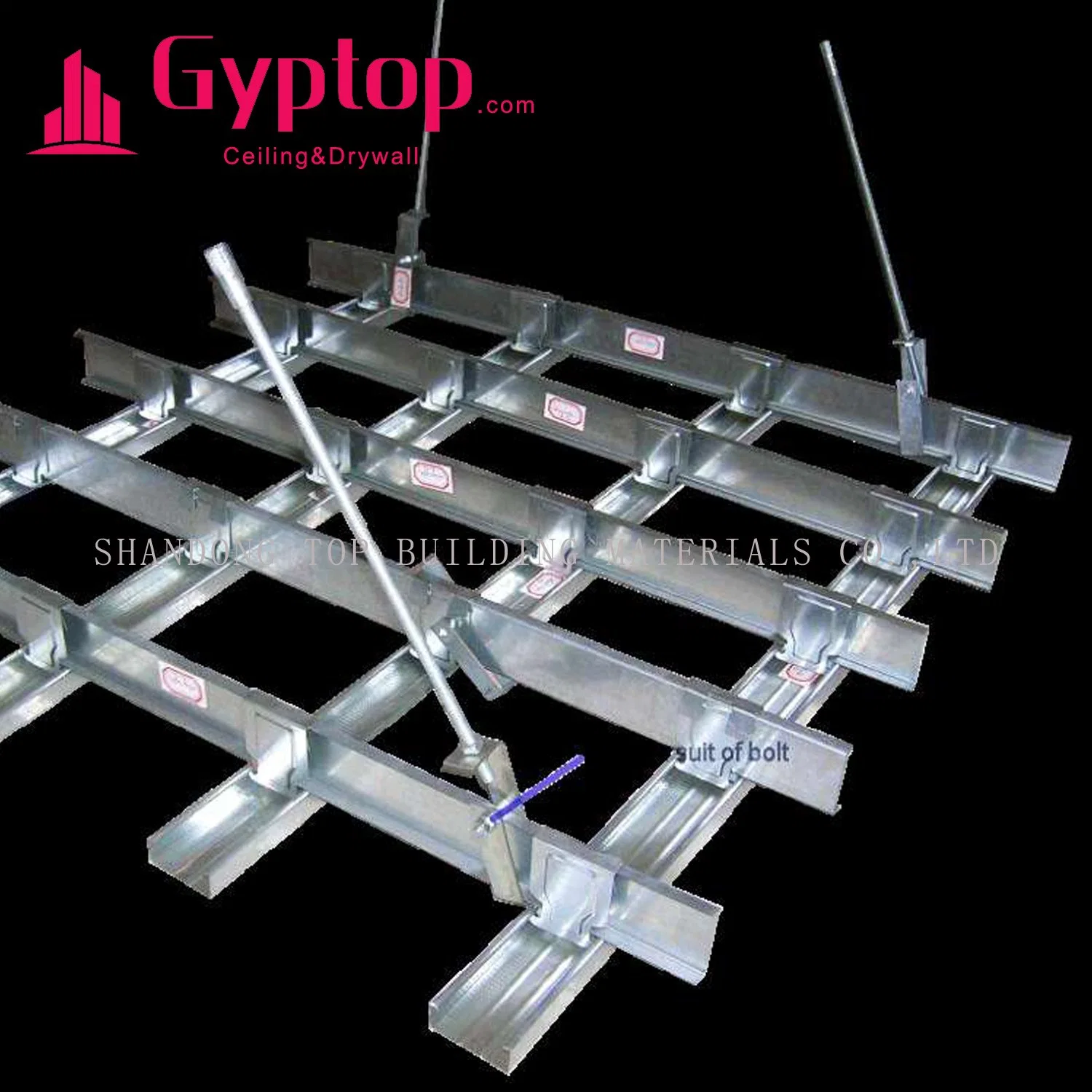

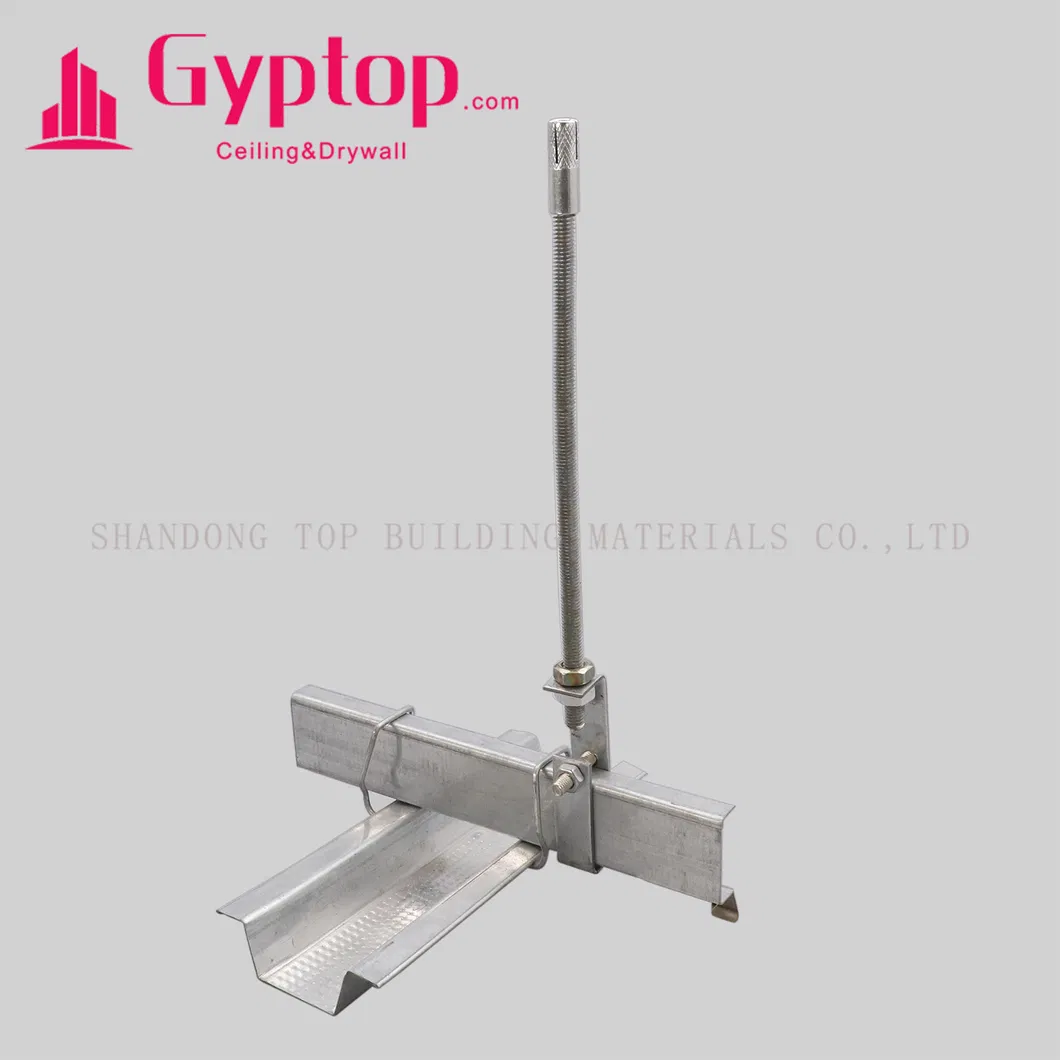

The system consists of Furring Omega Runner to which the plasterboard is fixed, the face of which is knurled to assist drywall screw penetration, and the Main Channel to which the metal furring Omega is fixed using the Wire Clip.
Made of high-quality continuous hot-dip galvanized steel strip with galvanization exceeding 100g/m2.
Rib reinforcement design for flanges increases frame rigidity and significantly reduces deformation.
Produced by advanced continuous production lines ensuring high dimensional accuracy and easy screw fastening.
| ITEM | CROSS SHAPE | SIZE (mm) | PACKAGE | NOTE |
|---|---|---|---|---|

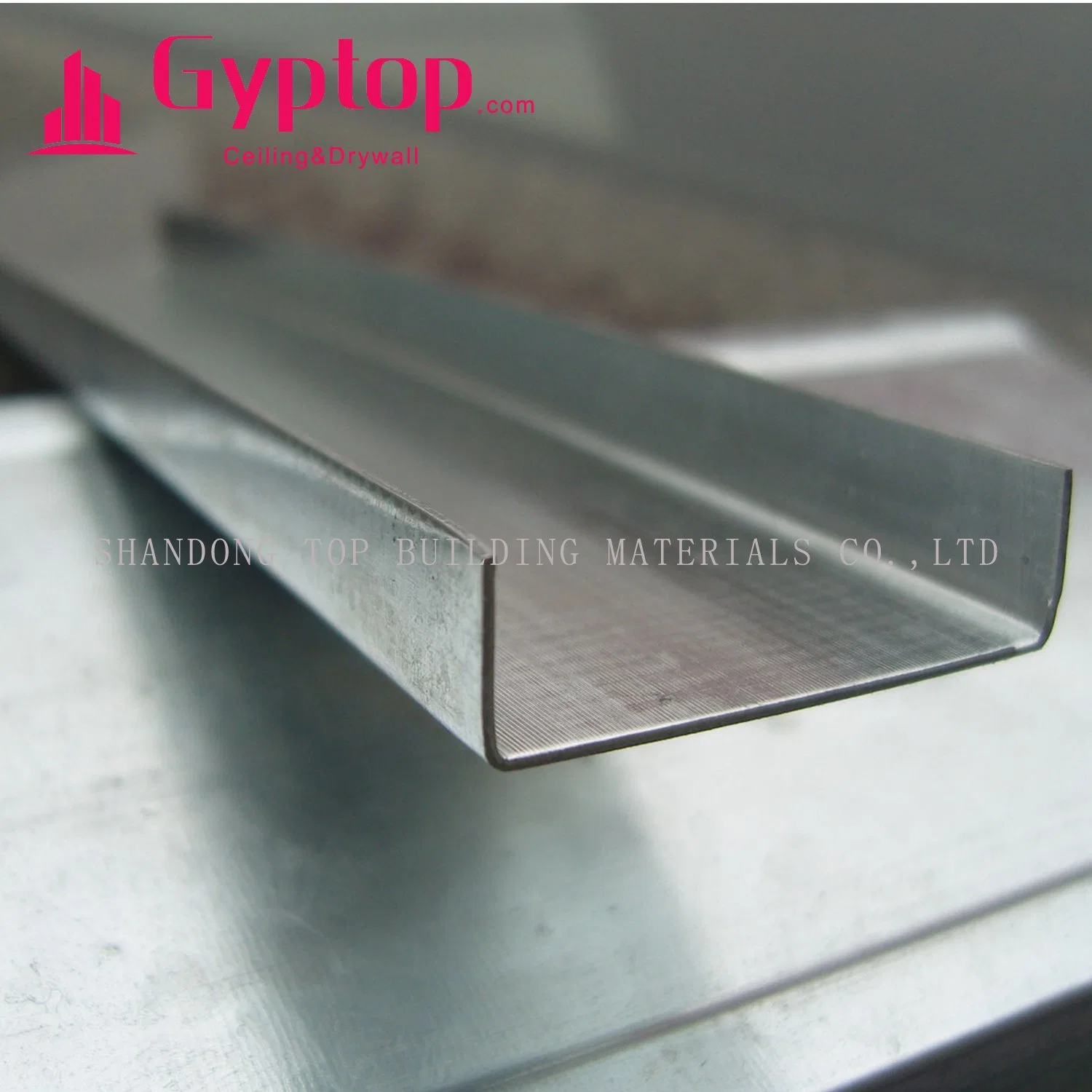

| Main Channel |  |
38x12x0.8/1.0/1.2 | 10 PCS/Bundle | Other sizes are available on request |

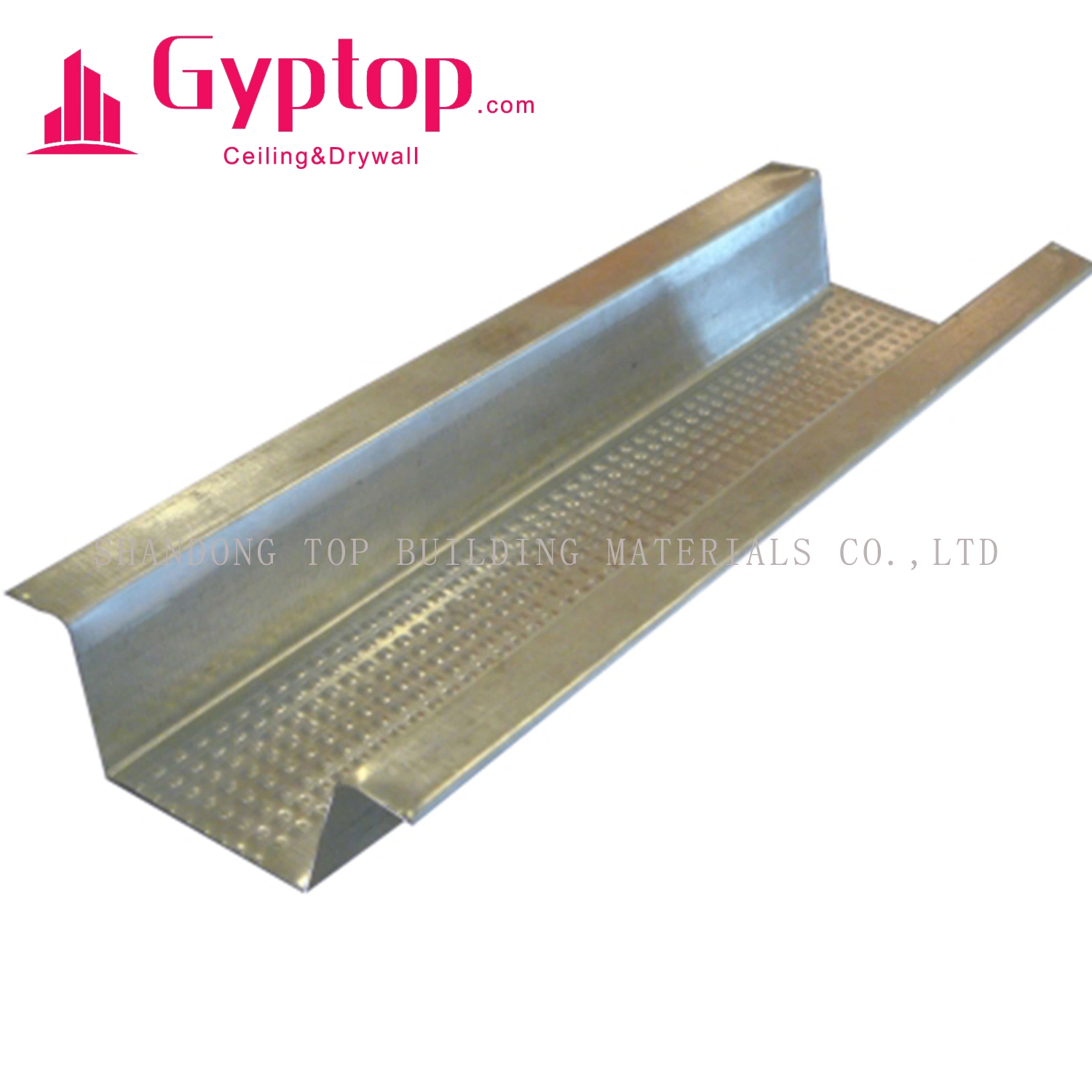

| Omega Furring Channel |  |
35x22x68x0.4/0.45/0.5 | 10 PCS/Bundle | |
| Wall Angle |  |
25x25x0.4/0.45/0.5 | 50 PCS/Bundle |
